Dry Trommel for Waste PET Recycling Equipment
Zhejiang Boretech Environmental Engineering Co., Ltd.- Capacity:4500kg,H
- Power:7.5+1kw
- Dimensions:6070*2660*4675mm
- Drum Diameter:Ø1900mm
- Mesh Size:Ø30*50mm
- Transport Package:Film,Wooded Case,Regular Seaworthy Packing,Ect.
Base Info
- Model NO.:GTS1900
- Specification:4500KG,H
- Trademark:BORETECH
- Origin:China
- HS Code:8479820090
- Production Capacity:10 Sets Per Month
Description
Basic Info.
Model NO. GTS1900 Specification 4500KG/H Trademark BORETECH Origin China HS Code 8479820090 Production Capacity 10 Sets Per MonthProduct Description

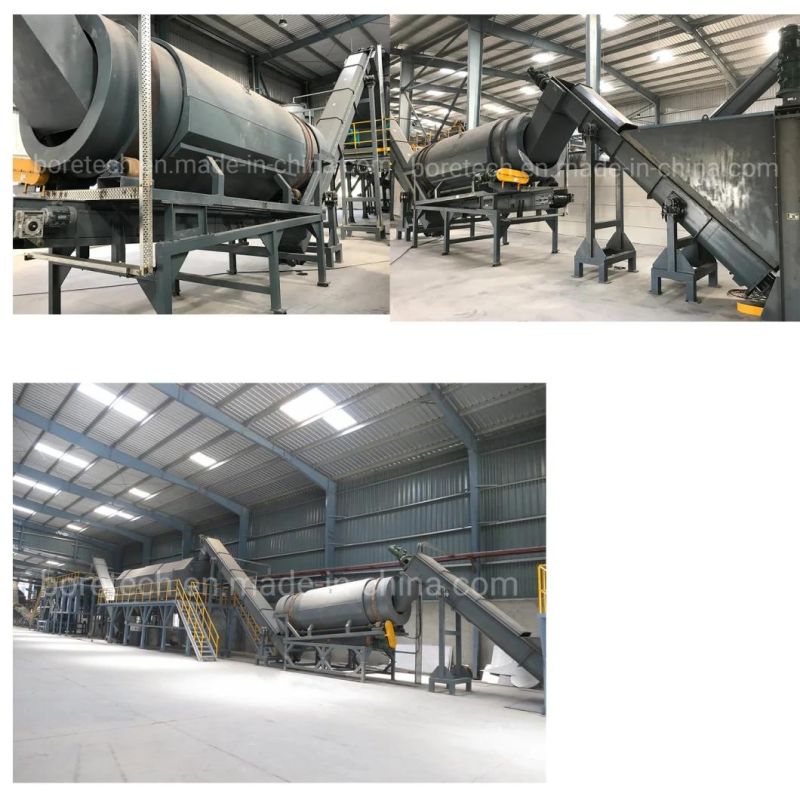

Sieving Machine (Dry Trommel )
Sieving machine is used to separete solid waste such as sand, metal, small stone, labels in PET bottle recycling process. It helps the PET bottle washing by reducing equipment abrasion, material loss to enhance productivity. Flakes sieving improve the quality of final PET flakes.
BoReTech supplys three types of sieving machines, dry trommel,disk screener and dust remover. Disk screener is more compact than the dry trommel, it can be placed after de-baling and pre-washing then remove
sand, labels and so on. It can evenly disperse the bottles onto the next process and remove remained water.
Dry trommel can remove caps and sands separately by multiple mesh sizes.
Dust remover can separate dust in the flakes, small plastic labels and film by taking advantage of the gravity and machine structure design.
Model | Capacity(kg/h) | Power(kW) | Drum Diameter(mm) | Mesh Size(mm) | Dimensions(mm) |
GTS1600 | 3000 | 5.5 | Ø1600 | Ø30*50 | 5230*3490*2315 |
GTS1900 | 4500 | 7.5+1 | Ø1900 | Ø30*50 | 6070*2660*4675 |
