• Model NO.：HXYD520
• Clamping Way：Hydraulic & Mechanical
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, GMP, QS, UL
• Brand：Haixiong
• Rank：Top 3 in Ningbo
• Transport Package：Export Stanard
• Specification：packages
• Trademark：HIGHSUN
• Origin：China
• HS Code：8477101090
• Production Capacity：7000 Set Per Year

Basic Info.

Model NO. HXYD520 Clamping Way Hydraulic & Mechanical Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, GMP, QS, UL Brand Haixiong Rank Top 3 in Ningbo Transport Package Export Stanard Specification packages Trademark HIGHSUN Origin China HS Code 8477101090 Production Capacity 7000 Set Per Year

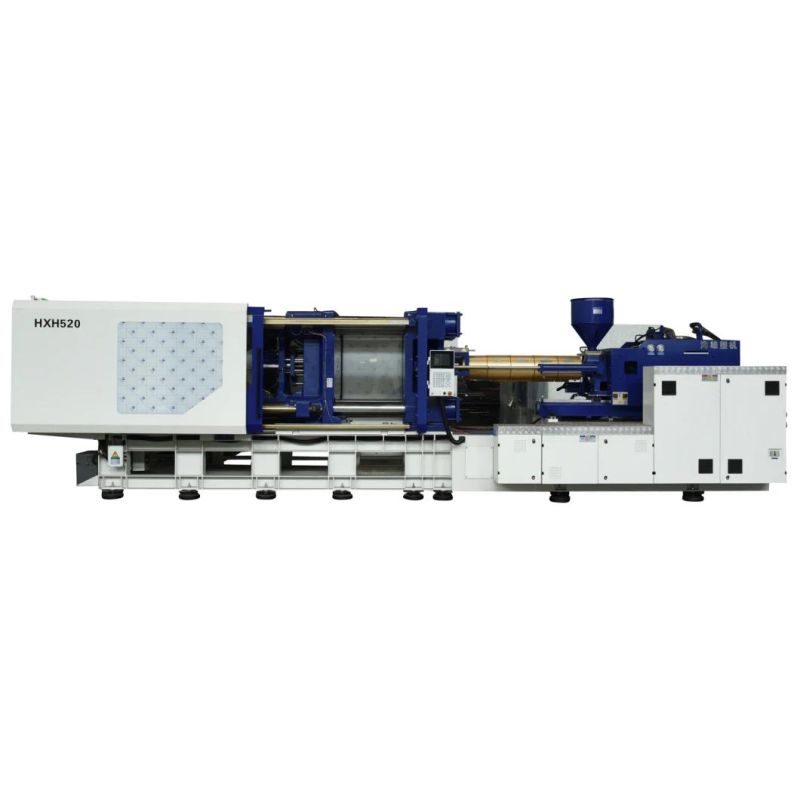

Product Description

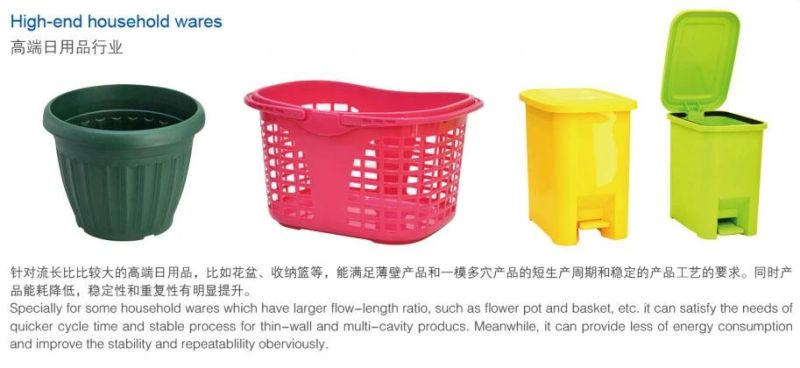

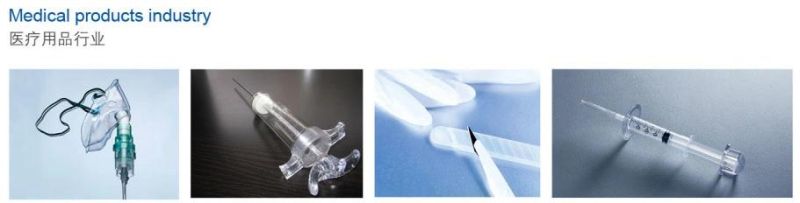

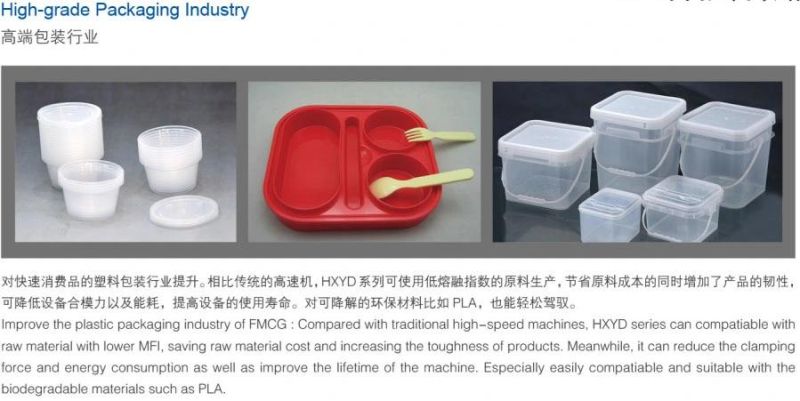

HXYD hybrid series of injection molding machine is a new solution for high-end packing industry, high-end household wares and medical suppliers industry, which was reserching and developing on base of fully-electric (injection speed:500mm/s ,start producing since 2009) and highspeed series(start to producing since 2012), combined with the clamping unit of high-speed  series and injection unit  of fullly -electric series , considerated with both of energy saving and environment protection . it satisfies the needs of stronger clamping force and higher performace of injection unit , provide more energy saving and higher efficience (simulaneously mold opening and charging).
Product introduction

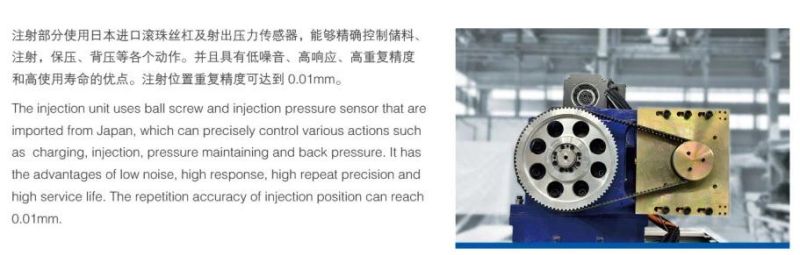

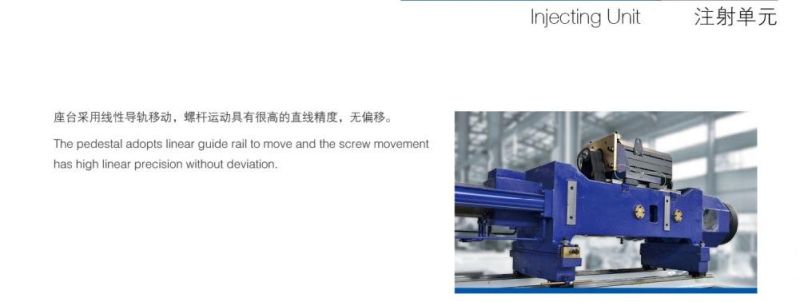

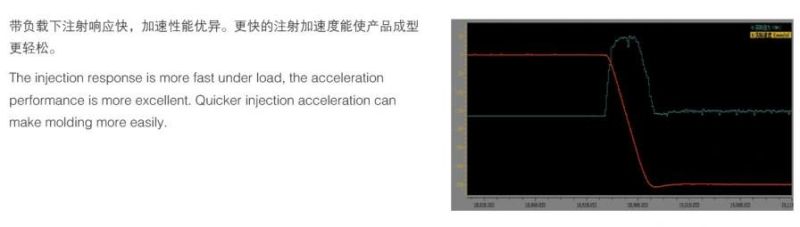

1 Modular injection Unit with Excellent Acceleration Performance

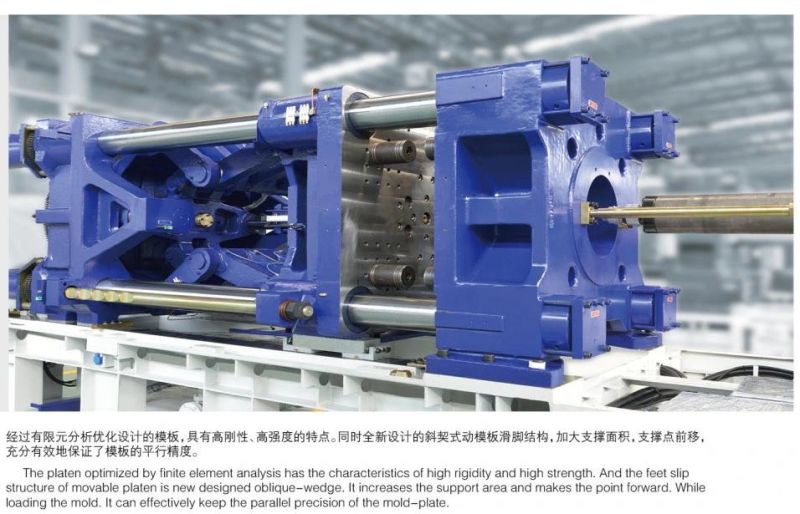

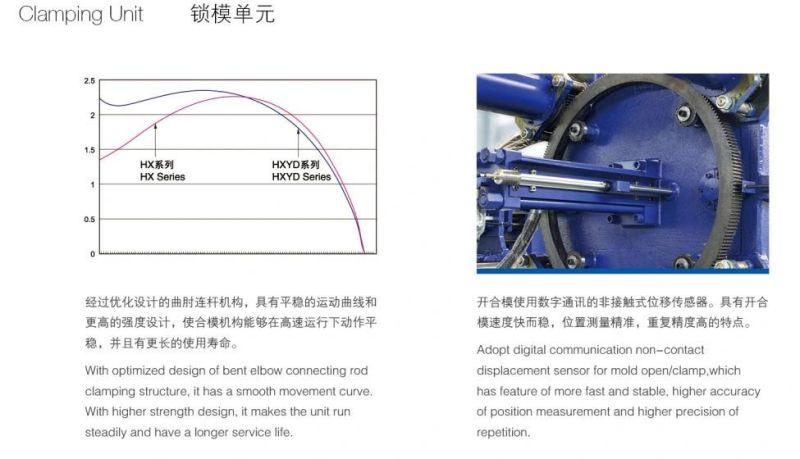

2 High-stiffness Clamping Unit for High-speed machine

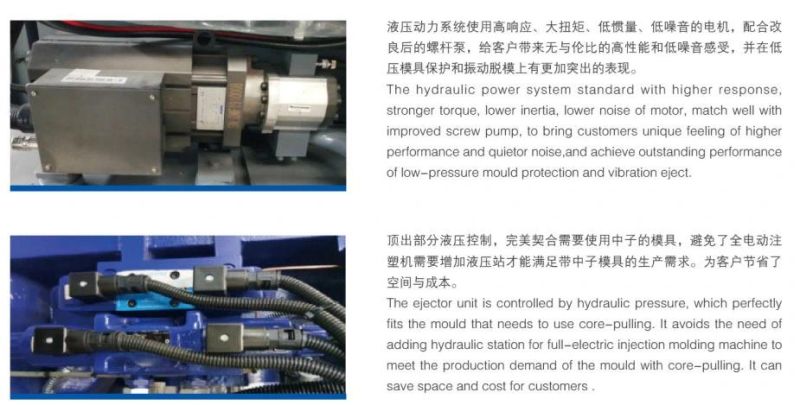

3 Hydraulic System with High Response and low Noise

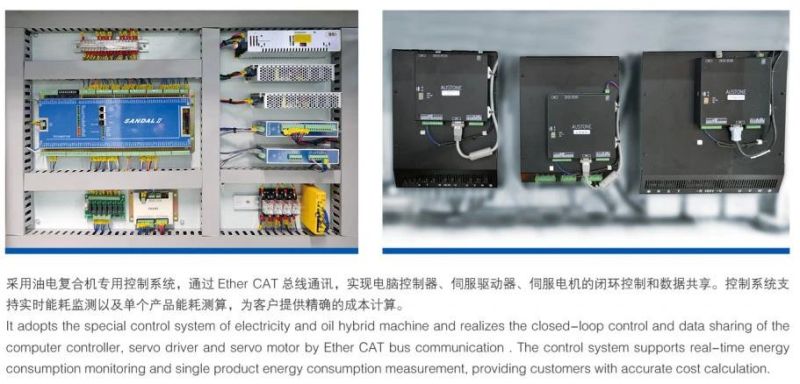

4 Optimized Control syestem Excellent in Response and Accuration for Hybrid Machine











Hydraulic & Control system
