Semi Mineral Water Bottle Blow Molding Machine with Four Cavities
Zhangjiagang Borun Machinery Co., Ltd.- Type：Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Semi Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：BM-SA4
- Suitable Preform Material：Pet, PE,PP Preform
- Suitable Bottle Size：100ml-2000ml
- Capacity：2000PCS,H Based on 500ml Bottle
- Max. Mold Size：390*345mm
- Max. Mold Thickess：Adjustable
- Clamping Force：100kn
- Power：16kw
- Blower Size：1460X580X1800mm
- Pre Heater Size：1350X550X1150mm
- Name：Semi Mineral Water Bottle Blow Molding Machine
- Transport Package：Wooden Case
- Specification：one oven and two blowers
- Trademark：BORUN
- Origin：China
- HS Code：8477300000
- Production Capacity：2000PCS,Hour
Description
Technology advantage:
1. Special design,high rigid compound die structure.
2. Wide adaptability, suitable for every type mould thickness.
3. Adjust convenience.
4. No mould rolling out.
5. More energy conservation,no need much air supply.
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action.
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%.
Accessories of bottle blowing machine:
1,High pressure air compressor
Air compressor system, tie-in use combination series high pressure gas system. Convenient maintenance, easy inspection and troubleshooting.

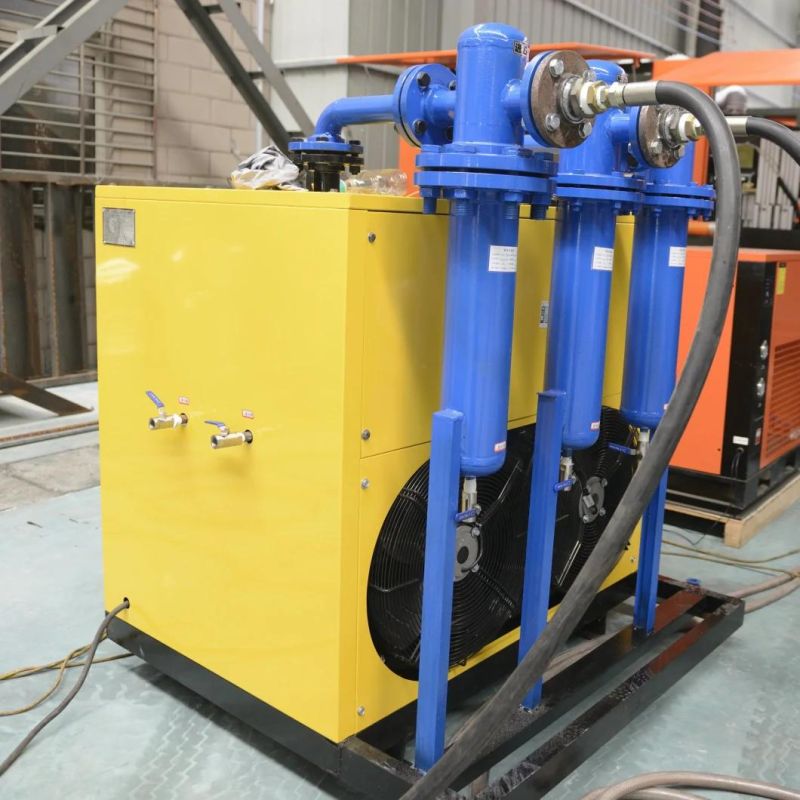

2, Air dryer
Main function is cool high pressure air to achieve a more ideal working temperature and increase the service life of pneumatic components and filter the impurities and oil in the air, improving product cleanliness.

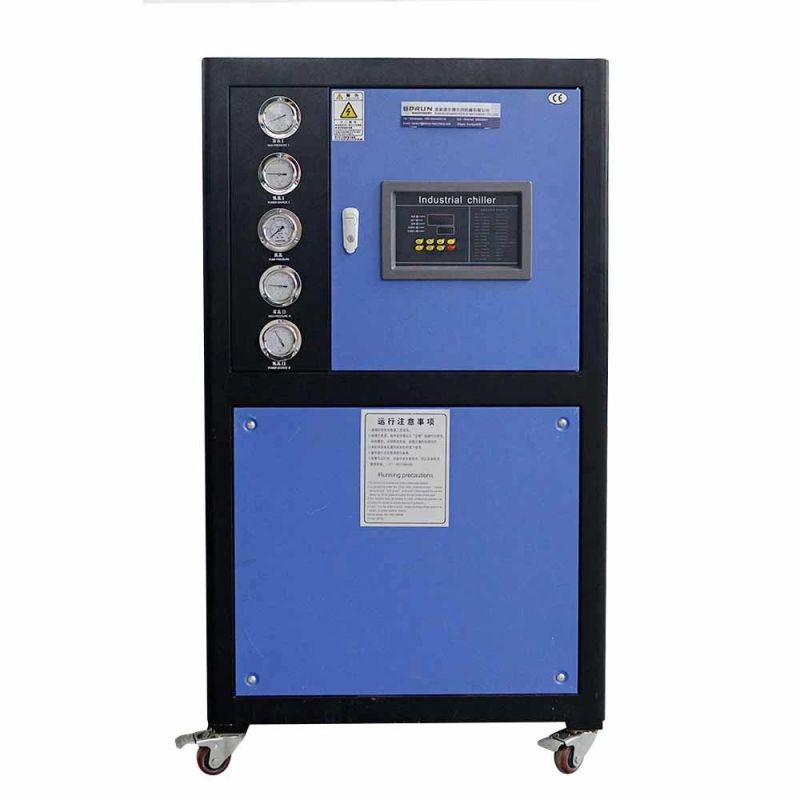

3, Water Chiller
Mainly used for cooling the mould and guarantee the bottle part not damaged in the heating process, to improve the quality of finished products and production efficiency.
