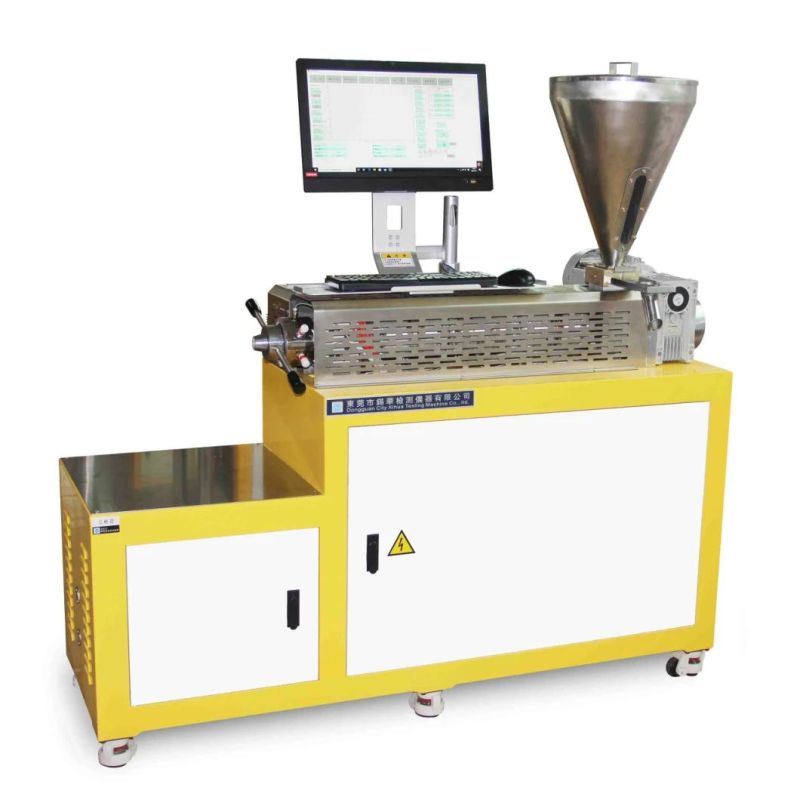

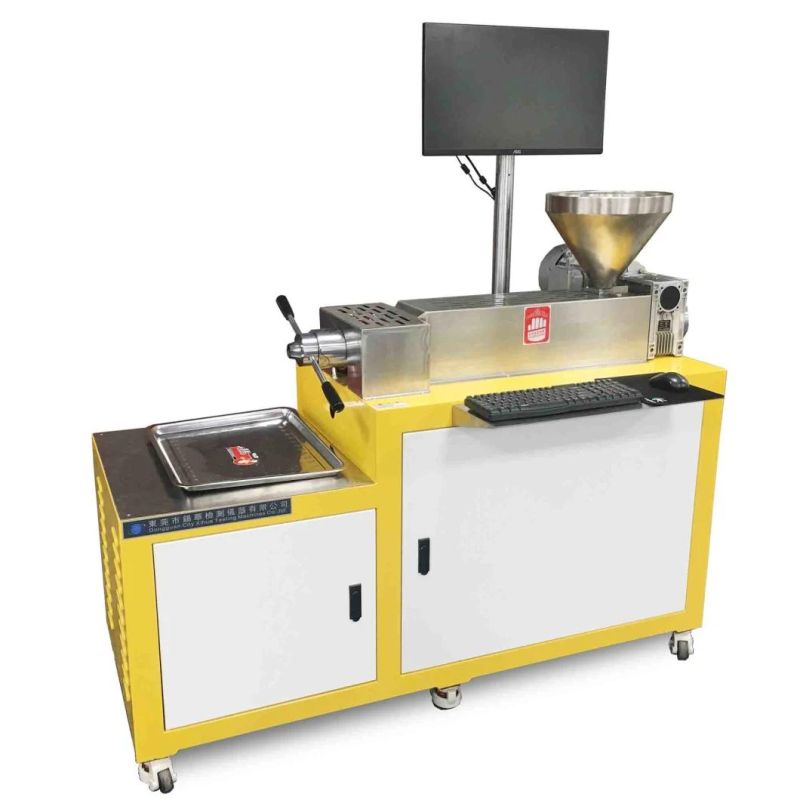

Pressure Filtration Testing Equipment for Checking Impurities in Polymer

Dongguan Xihua Machinery Technology Co., Ltd.
  • After-sales Service：a Lifetime of Service
  • Warranty：1 Year
  • Plastic Processed：PE
  • Feeding Mode：One Feed
  • Screw：Single-Screw
  • Screw Channel Structure：Non Deep Screw

Base Info

  • Model NO.：XH-431
  • Exhaust：Don′t Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Screw Diameter：25mm
  • L/D：25:1
  • Speed of Screw：0-95rpm Frequency Adjust Speed
  • Metering Pump：Servo Motor 8cc Throughput
  • Power Supply：AC380V. 50Hz
  • Volume(W*D*H)：1200*650*1350mm
  • Weight：320kg
  • Transport Package：Wooden Case
  • Trademark：Xihua
  • Origin：China

Description

XH-431 Filter Testing Machine Technical ParameterDiameter of screw25,30 or customizedL/D1:25Speed of screw0-95rpm frequency adjust speedScrew materialsPressure Filtration Testing Equipment for Checking Impurities in PolymerPressure Filtration Testing Equipment for Checking Impurities in Polymer


Main Features

(1)The test mixture is a combination of a color masterbatch and a basic test polymer.

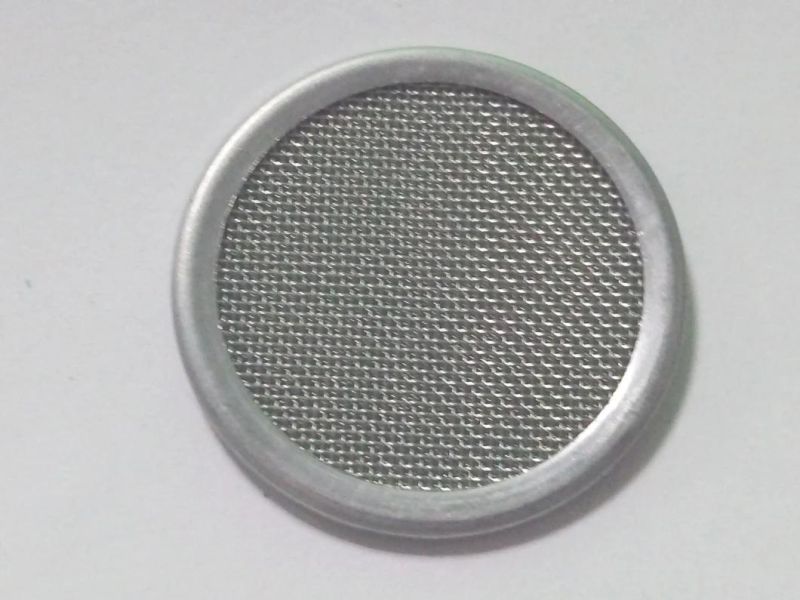

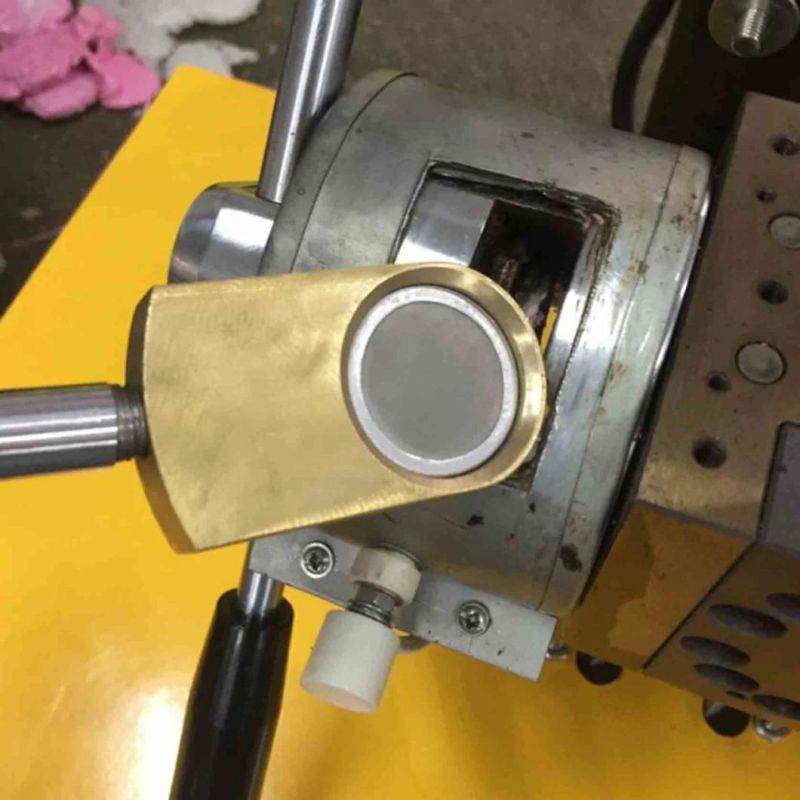

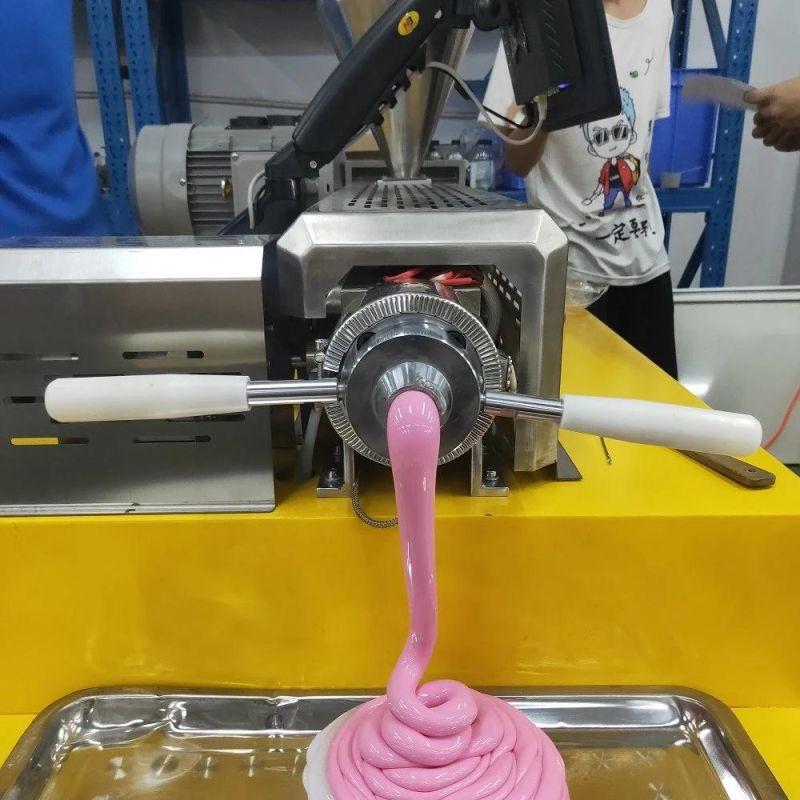

(2)Through an extruder equipped with a melt pump and a filter with matching mesh, In front of the filter is a melt pressure sensor.

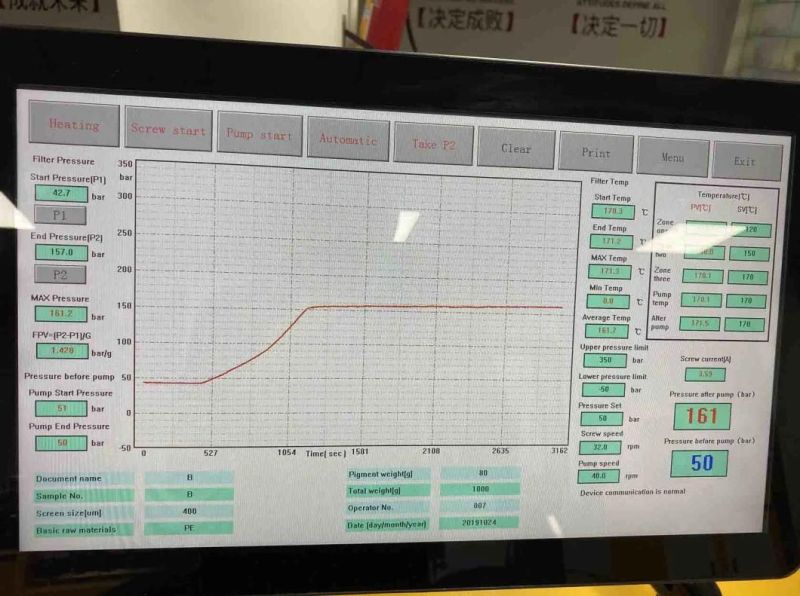

(3)The difference between the initial pressure and the maximum pressure is calculated from the pressure filter value.

(4)Applicable standards: European standard EN 13900-5:2005.
