• Model NO.：US110
• Condition：New
• Size：50-110mm
• Transport Package：Standard Exporting Package
• Specification：50-110mm
• Trademark：YUSHENG
• Origin：Jiangsu, China
• HS Code：8477800000
• Production Capacity：10sets,Month

Basic Info.

Model NO. US110 Condition New Size 50-110mm Transport Package Standard Exporting Package Specification 50-110mm Trademark YUSHENG Origin Jiangsu, China HS Code 8477800000 Production Capacity 10sets/Month

Product Description

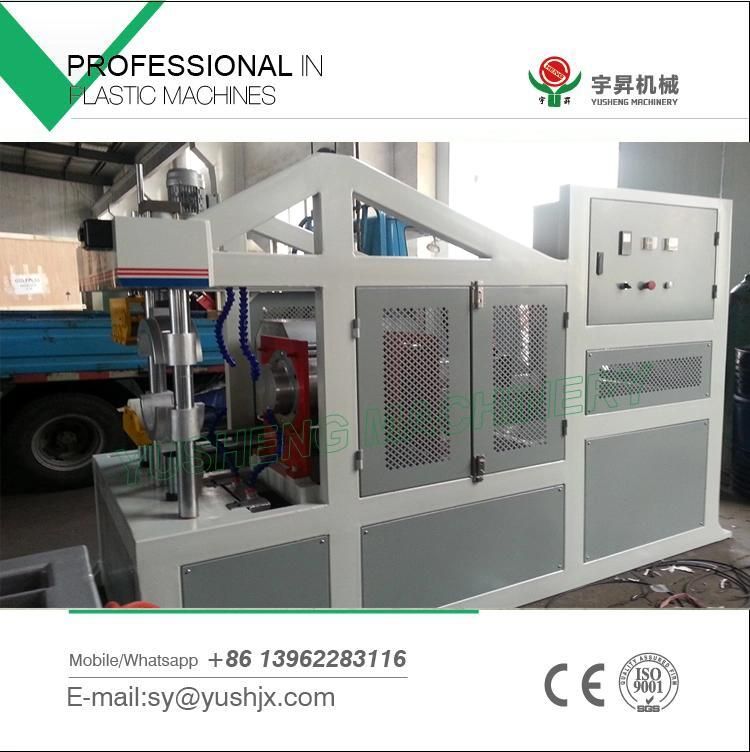

Belling Machine/Socketing Machine/Pipe End Socket Making Machine for PP Pipe
1.The PVC Pipe Semi-Automatic Belling Machine is suitable for making socket for PVC pipes semi-automatically.
2.The machine adopts the same calibration method with the full automatic belling machine.
3.The pipe are supported by simple frame and moved moved by hand.
4.Move pipe manully. Heating and socket automatic
5. solvent cement & rubber ring

Pipe range(OD)	Φ50-110mm
Pipe length	3-6m

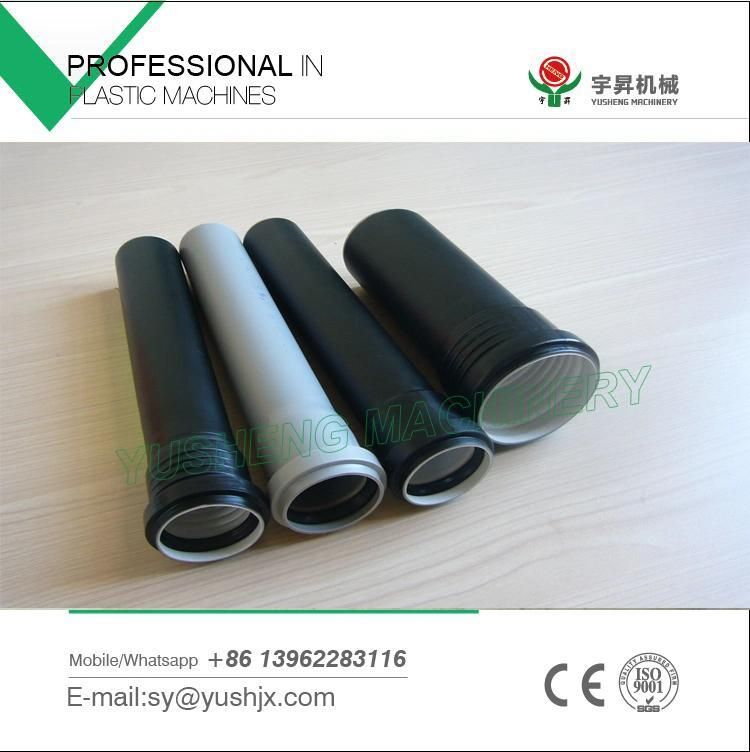

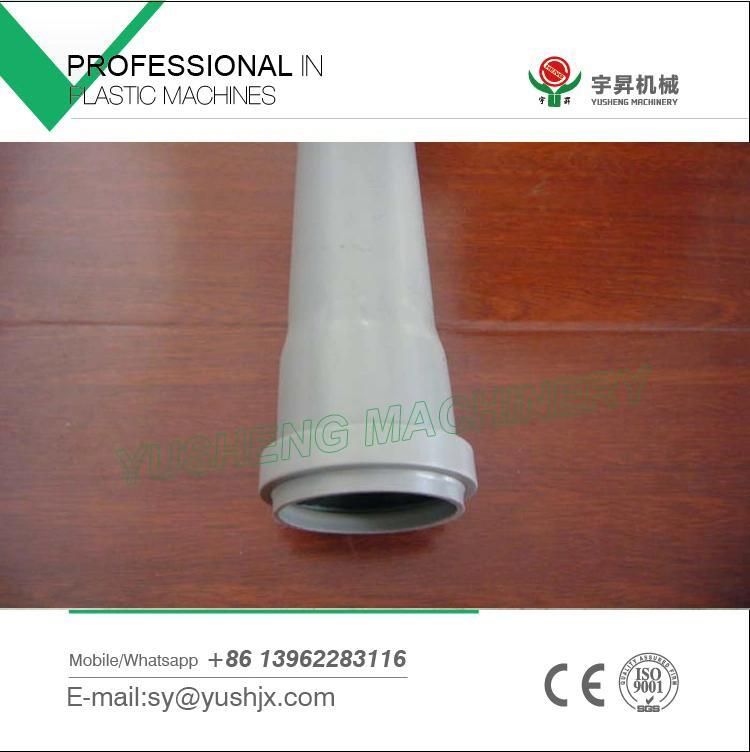

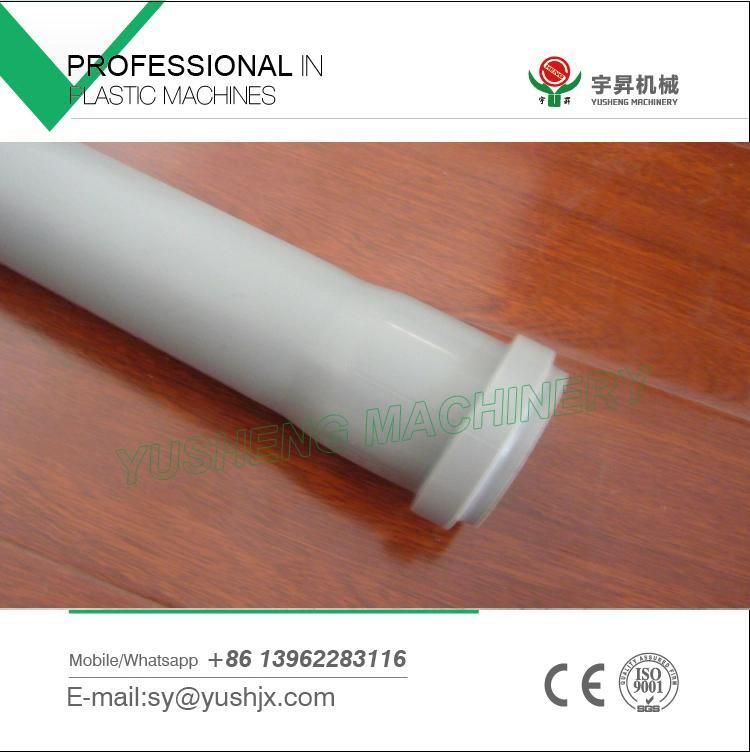

Socket type	U type(solvent) or R type or rectangle type
Socket method	U type: die tool insert R type: die tool expand
Cooling method	water cooling
Require cooling water pressure	0.2~0.3Mpa
Quantity of heating oven	1
Heating method	Electric heating, by stainless steel heating rods
Heating power	9kw
Total Power	12kw
highest temperature in heater	280ºC
Air pressure	0.4~0.6Mpa
Center height	1000mm±50mm  (or according to extruder)
Machine set weight	About 1.2T
Require oil label	46# wear resistance hydraulic oil

AFTER-SALE SEVICE&TECHOLIGY SUPPORT:
INSTALLING FOR FREE
1. Warranty time: One year guaranteed for quality, product whole life service any damage except the wrong operation during warranty. Period is repaired freely, But the travel and hotel expenses should be count on buyer.
2. Commissioning services: The product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Traning Services: Our engineers will train your staff in your factory or video to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4. Manintenance Services: Any malfunction happened, Once you inquiry us, We will reply you within 24 hours.
5. The File: The manual specification, report of the material which used to the equipment and other documents video related to GMP authentication information will be provided by us.
