• Condition：New
• High Capacity：800kg,H Capacity
• Haul off：Servo Motor
• Inverter：Schneider
• Contacter：Schneider
• Cutter：Dust Free
• Screw：Bimetallic
• Transport Package：Wooden Packing
• Specification：CE
• Trademark：Middle tech industry
• Origin：China
• HS Code：84772090
• Production Capacity：800kg,Hr

Basic Info.

Condition New High Capacity 800kg/H Capacity Haul off Servo Motor Inverter Schneider Contacter Schneider Cutter Dust Free Screw Bimetallic Transport Package Wooden Packing Specification CE Trademark Middle tech industry Origin China HS Code 84772090 Production Capacity 800kg/Hr

Product Description

Application of PVC electrical conduit pipe machine:

PVC electrical conduit pipe manufacturing machinery is mainly used to produce PVC conduit pipes with various diameters and wall thickness in the aspects of electric conduit pipe for construction and so on.



Characterizer of MT extruder:

 Capacity increased (20% higher),
 High standard (Bimetallic & PLC Intelligence),
 Reliable quality (vertical gearbox by SKF bearing)

Equipmnet List :

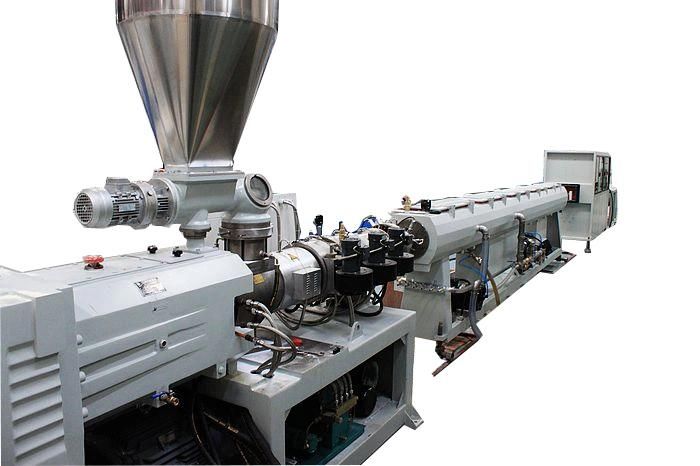

PVC conduit  pipe extruder machine line : consists mainly of

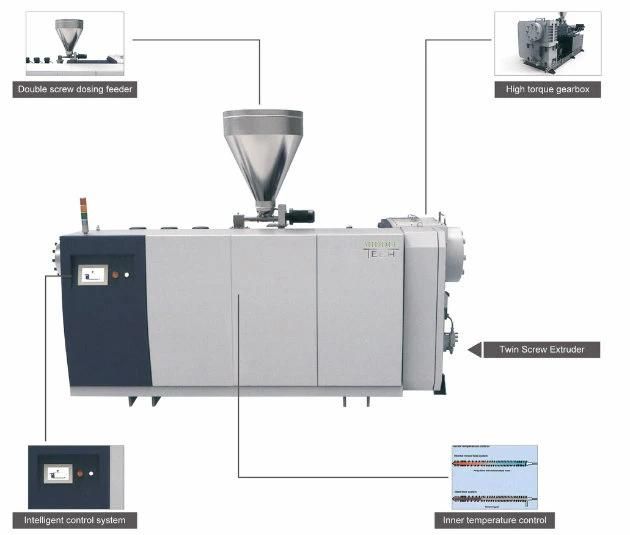

Twin screw conical (parallel) extruder,

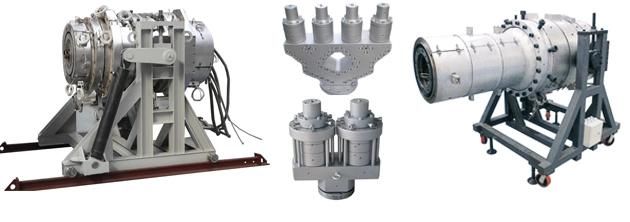

Mould

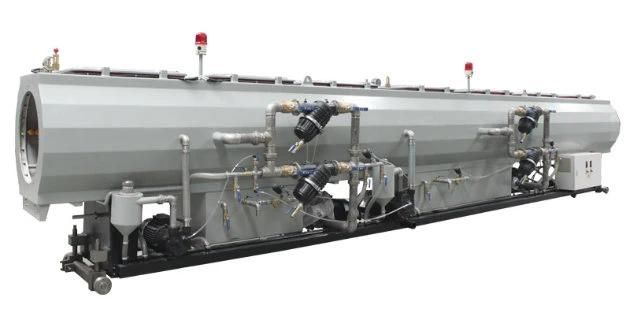

Vacuum calibrating tank,

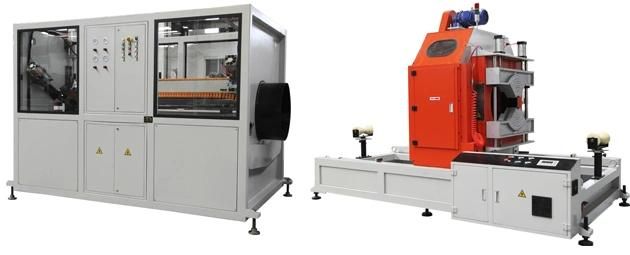

 Haul-off unit &Cutting unit,



Feature of Machine:
1. Applied with imported A/C inverter.
2. Famous brand of vacuum pump and driving motor
3. Hal-off Machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
4. Saw cutting or planet cutting can be applied
5. it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.

If you are interest in our machine, that would be our honor to provide information for you.



Main parameter of PVC pipe production line extruder machine

Extruder model	SJZ-51/105	SJZ-55/110	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Driving motor (kw)	15	37	37	55	90
Pipe diameter range(mm)	16-40	20-110	50-200	200-400	400-630
Water pump	3kw	4kw	5.5kw	5.5kw X 2pcs	7.5kw X 2pcs
Vacuum pump	2.2kw X 2pcs	4kw	4kw	4kw X 2pcs	7.5kw 5.5kw X 2pcs
Caliber Length(mm)	5000	6000	6000	8000	6000, 3000
Water cooling tank	No	No	5000	6000	100000
Hauling motor	0.75kw 4pcs	2.2kw	3.7kw	7.5kw	18.5kw
Hauling belt	4pcs	2pcs	2pcs	4pcs	6pcs
Cutting motor	1.1kw 2pcs	2.2kw	3.7kw	3.7kw	3.7kw
Inverter brand	ABB	ABB	ABB	ABB	ABB
Contactor brand	Schneider	Schneider	Schneider	Schneider	Schneider


If you need any support, please don't hesitate to contact us on 0086-13962227556.
