• Model NO.：sj-65,40, sj-120,33
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• PP Strap Band Extruder：Single Screw Extruder for PP Material
• Width of PP Strap：5-19mm
• Output of Production：100kg,H
• Running Machines：We Have Ready Running Production Lines in Qingdao
• Transport Package：According to Customers Needs
• Specification：SJ-65,33, SJ-75,36, etc
• Trademark：WEIER
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：60 Sets Tear

Basic Info.

Model NO. sj-65/40, sj-120/33 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized PP Strap Band Extruder Single Screw Extruder for PP Material Width of PP Strap 5-19mm Output of Production 100kg/H Running Machines We Have Ready Running Production Lines in Qingdao Transport Package According to Customers Needs Specification SJ-65/33, SJ-75/36, etc Trademark WEIER Origin Qingdao, China HS Code 84772090 Production Capacity 60 SetsTear

Product Description

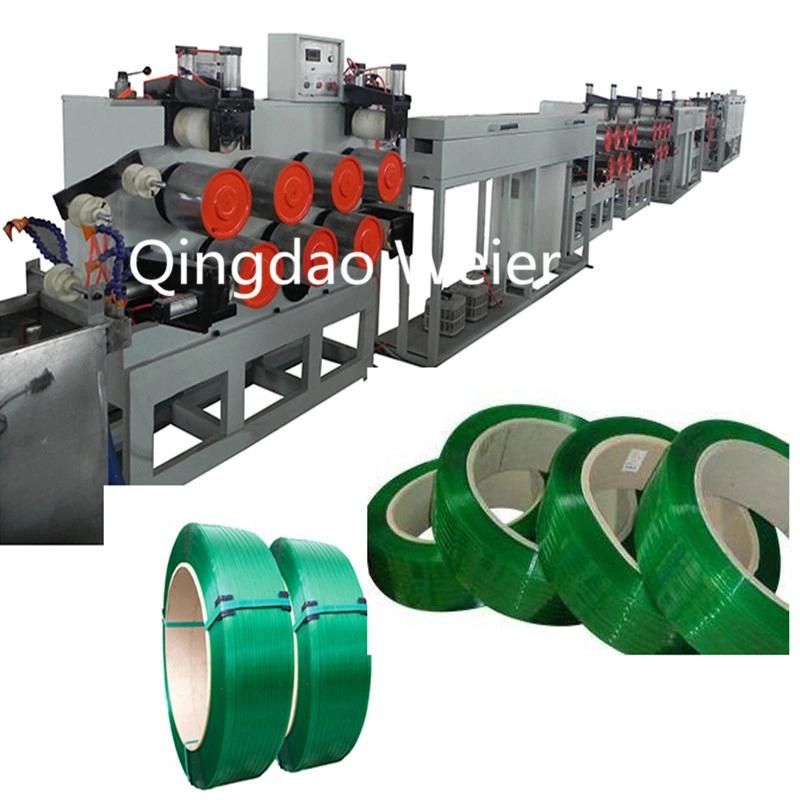

 PP PET strap band extrusion line

---Features of pp strap band production line:


1). It can use single screw or double screw according to your requirement. It can use 100% recycling
material.
2). Even plasticization and table extrusion, PLC automatic control
3). Measurement pump ensure consecutive and stable production
4). Two pole four station filter can efficiently eliminate impurity
5). Large hauling force stretch device and insulation oven
6). Large capacity stainless steel water tank, automatically water level control.

---specification for PP straping band making machine line; PP strapping band extrusion line:

A) Installed power: 380V/3P/50Hz(depending on the customer's requirement)

B) Raw material: PP ( can be 100% recycled PP material)

C) Max. Output: 100-120kg/h
Note: The output is different depends on operation, product size and material.

D) product size: W=5-19mm, T=0.5-1.0mm

E) total power consumption: 55kw

F) actual power consumption: 36kw/h

G) machine size: 17 M*0.8 M*1.8 M

H) operation: 4 persons/ shift



---Features of PET straping band production line:


1). Process 100% recycled PET bottle flakes.

2). Even plasticization and stable extrusion with PLC automatic control for the full line.

3). As per different requirements, changing A coating materials for make strap have better and special
function. For example, the strap for packing cotton, can be from enhancing the breaking strength and
joint strength when welding strap.

4). Melt filter with two pistons with air venting design and backflusing.

5). Number of strap: 1, 2, 4
---Extrusion Machine line composition for PET strapping band production:

1.1 SHR-1500 crystallizing and drying and I. V increasing unit
1.2 SHJ-65 Building Block Type parallel Twin Screw Extruder
1.3 Moulds of machine head
1.4 high pressure static casting machine
1.5 the first haul-off
1.6 oven
1.7 the second haul-off
1.8 The third haul-off
1.9 warm calibrating box
1.10 canlender
1.11 the fourth haul-off
1.12 four-station winder



-----After-sale service, technology and installation:
(1)The supplier provide service manual and maintenance instruction of main electric appliances, limb,
usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing.

(2)The supplier is responsible for installation, debugging and training. We will realize guarantee of repair;
Replacement and refund of substandard products within one year after the machine leaves factory. And
half a year for electric parts. Fittings of the machine will be supplied at preferential price after one year.

We have ready machines for PET, PP strapping band production lines in factory! Welcome to visit our
factory!

Width scope	6-32mm
Line speed	120min x 2
Tensien rate	4.6
Max output	200kg/h
