• Model NO.：SJ-45,55,65
• Machine Weight：4T
• Certification：CE
• Color：Customize
• Voltage：Customize
• Transport Package：Wooden Case, Stretch Film Wrapped
• Trademark：Hengtuo
• Origin：China
• HS Code：84778000
• Production Capacity：50

Basic Info.

Model NO. SJ-45/55/65 Machine Weight 4T Certification CE Color Customize Voltage Customize Transport Package Wooden Case, Stretch Film Wrapped Trademark Hengtuo Origin China HS Code 84778000 Production Capacity 50

Product Description

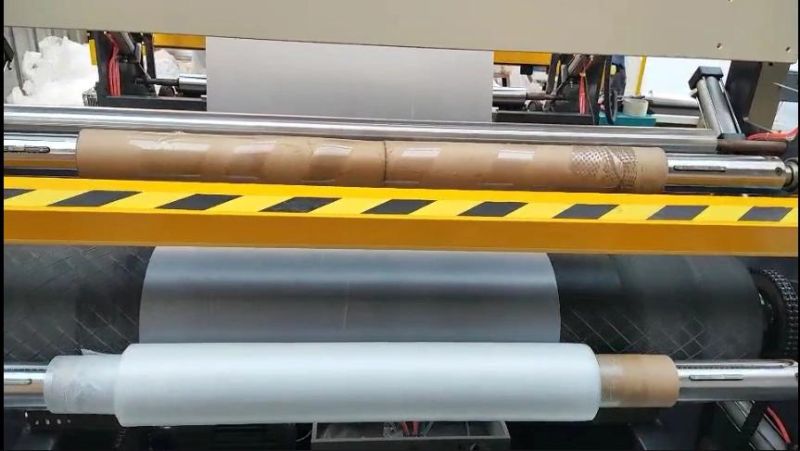

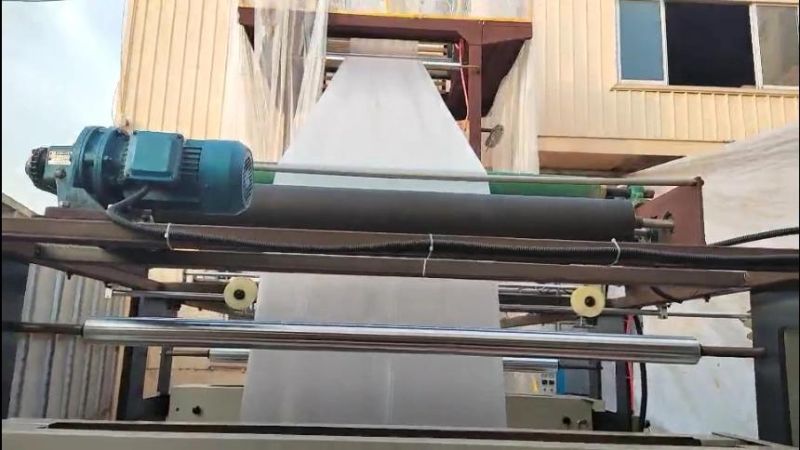

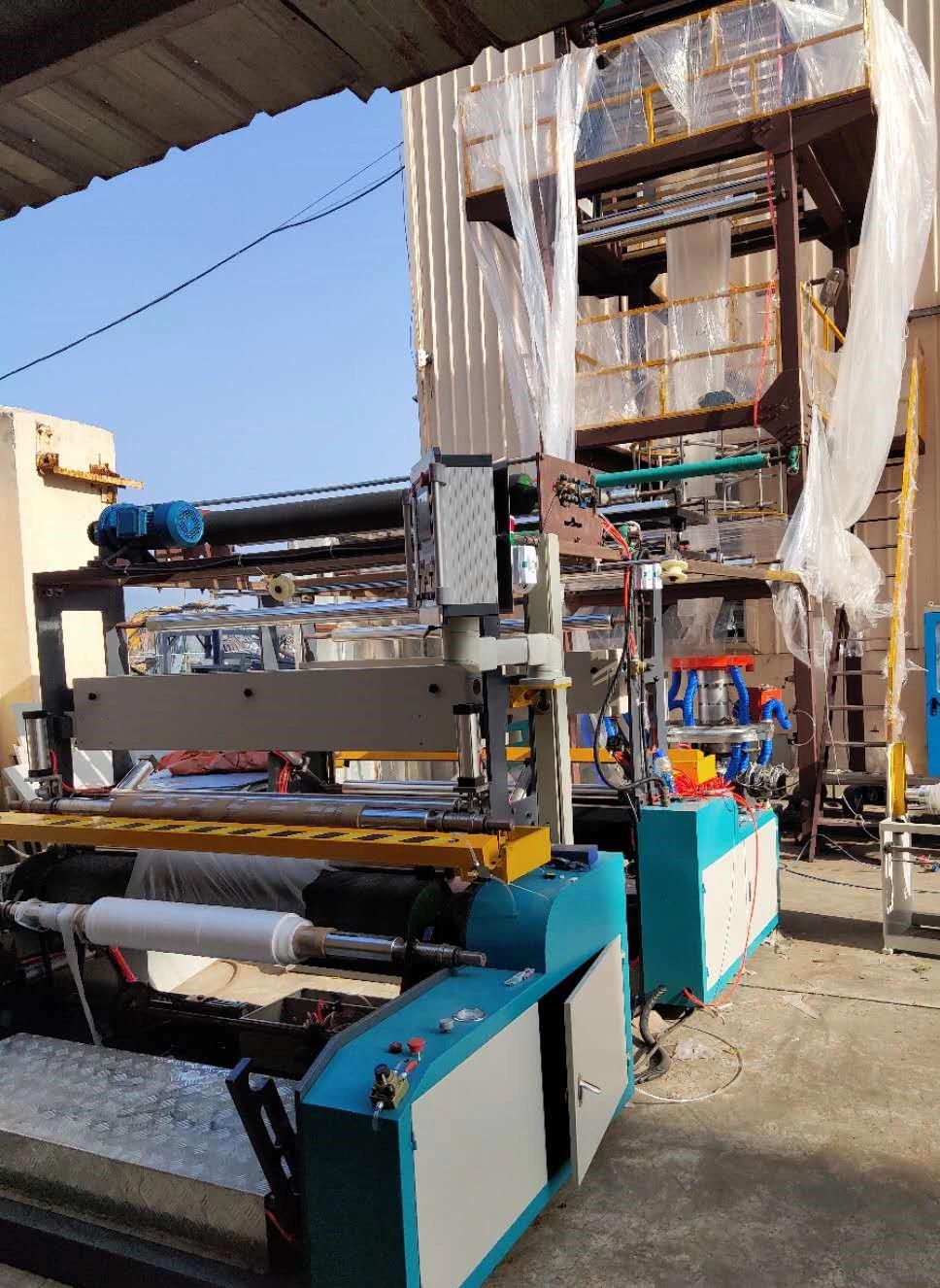

LDPE&HDPE Plastic Film Blowing Machine



use

1) It is used for blowing high-low pressure polyethylene, which has been widely
used for producing laminating films, packing films, agricultural covering films,
bags or films for textile and clothing and other packing materials

2) The main motor adopts frequency control of motor speed to improve the speed
regulating stability of main motor and save electricity by 30%

3) The screw and material barrel adopt 38 chrome-molybdenum aluminum which has
been nitrogen treated and the traction frame adopts lifting type

4) No matter what size the film is, big or small, it can achieve the best effect
of cooling

Model type	SJ-55	SJ-60	SJ-65
Diameter of Screw Stem	55mm	60mm	65mm
Screw L/D Ratio	28:1	28:1	28:1
Rational Speed of Screw stem	30-60rpm	30-60rpm	30-60rpm
Die Head	70mm	120mm	150mm
Thickness of Products	0.015-0.06	0.015-0.06	0.015-0.06
Folding Width of Products	100-400mm	100-600mm	150-700mm
Main motor Power	7.5kw	15kw	18.5kw
Heating Power	12kw	16kw	16kw
Output	15-35kg/h	25-45kg/h	25-50kg/h
Machine Weight	1.9t	2.1t	2.2t
Overall Dimensions(L*W*H)	5000*2000*3300mm	5300*2200*3400mm	5400*2300*3600mm



Company Information

RUIAN HENGTUO MACHINERY CO.,LTD. located in Ruian City, Zhejiang Province,China.is an innovative enterprise which integrates packaging machinery with professional scientific research and development, design and manufacturer, sales and after-sales service.


Main products: Three layer co extrusion stretch film making machine, Double extruder stretch film making machine, single extruder stretch film making machine, bubble film making machine, compound bubble film making machine, film blowing machine, printing machine, bag making machine etc.
Packing and Shipping
As export standard pallet, the material of pallet is stainless steel pipe the surface of each part of machinery covered film together with one set of packing list in English wooden crate: under fumigation treatment. Together with one set of packing list in English partial shipment allowed container shipment allowed before delivery, we will send the dimension & weight of machinery to customer to help them choose


  1. Within 45- 60 workding days after receipt of deposit.
  2. Stretch film wrapped, easy damage parts put in wooden case.
  3. By sea.
Our Services
1.Installation Services
   Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

2.Clients Traning Services
    We can train your staff to use your film blowing equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
