• Model NO.：SJ75, 80, 90
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Raw Material：Recycyled Pet Water Bottle Flakes, PP Granules
• Applications：Rope, Brush, Broom
• Transport Package：Plastic Film Wrapping and Plywood Pallets
• Specification：380V,3,50Hz
• Trademark：ZHUOYA
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：200sets,Year

ModelZYLS-75ZYLS-80ZYLS-90Screw L/D30:130:130:1Gearbox model200225225Main motor18.5kw22/30kw30/37kwCapacity(kg/h)80-100kg100-120kg120-140kgMould Dia.200200200Filament Dia.0.05-2.5mm0.05-2.5mm0.05-2.5mm
Equipment Configuration ListNo.Name Quantity1SJ75/SJ80/SJ90 single screw extruderOne set 2Die headOne set 3Water-cooling tankOne set 4First tensile machineOne set 5Pre-heating machineOne set 6Second tensile machineOne set 7Third tensile machineOne set 8Oil bath tank One set 9Pneumatic tensionerOne set10Two position winderOne set

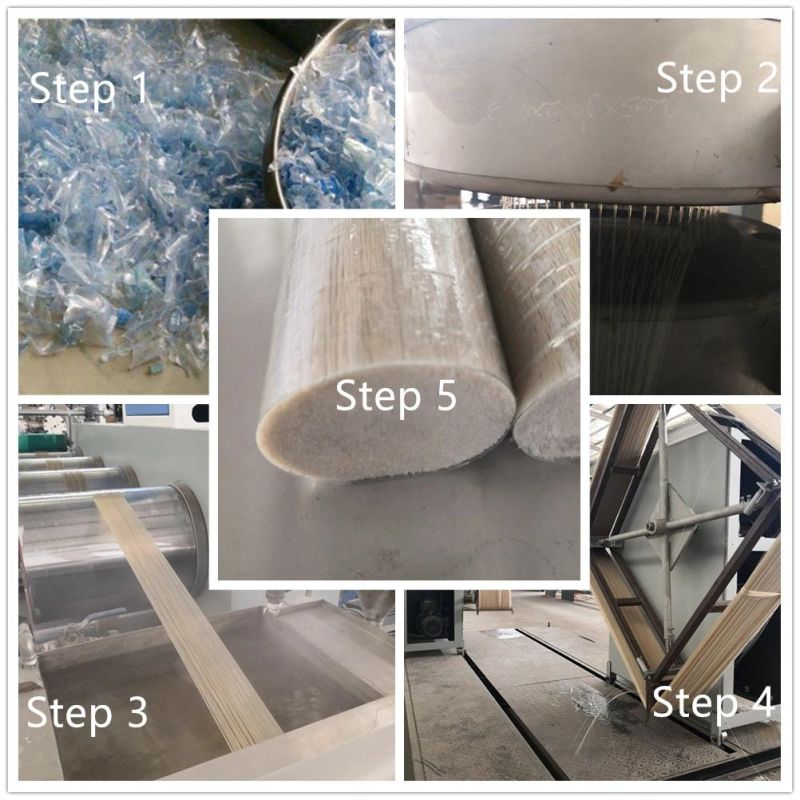

Production Procedure
Automatic material loader→high efficiency extruder→screen changer→spineret(mould)→cooling water tank→first pulling and stretching unit→hot water tank→second pulling and stretching unit→oil coating→winding→shaping→cutting.

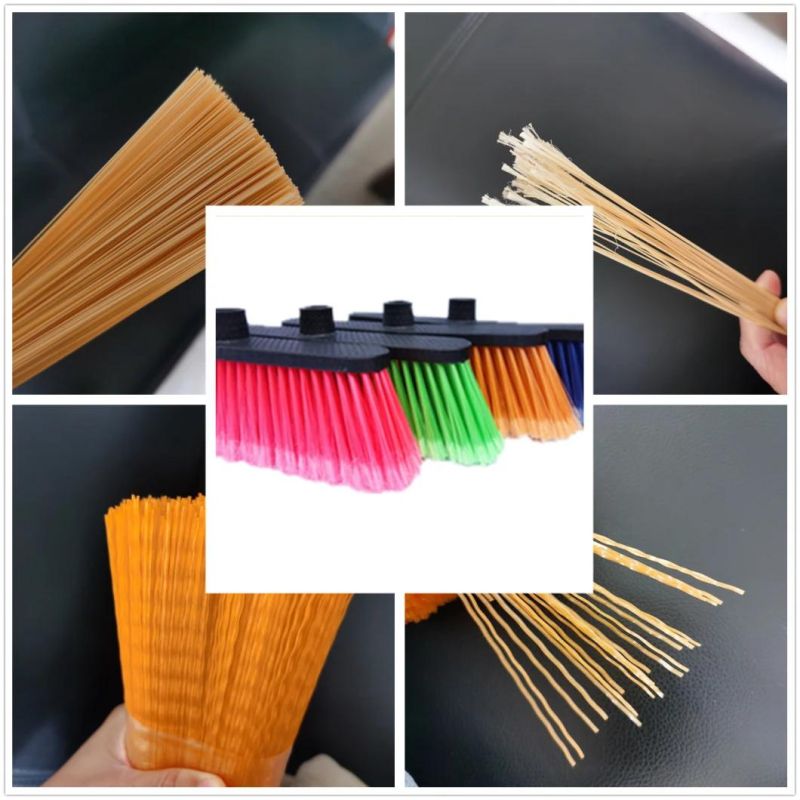

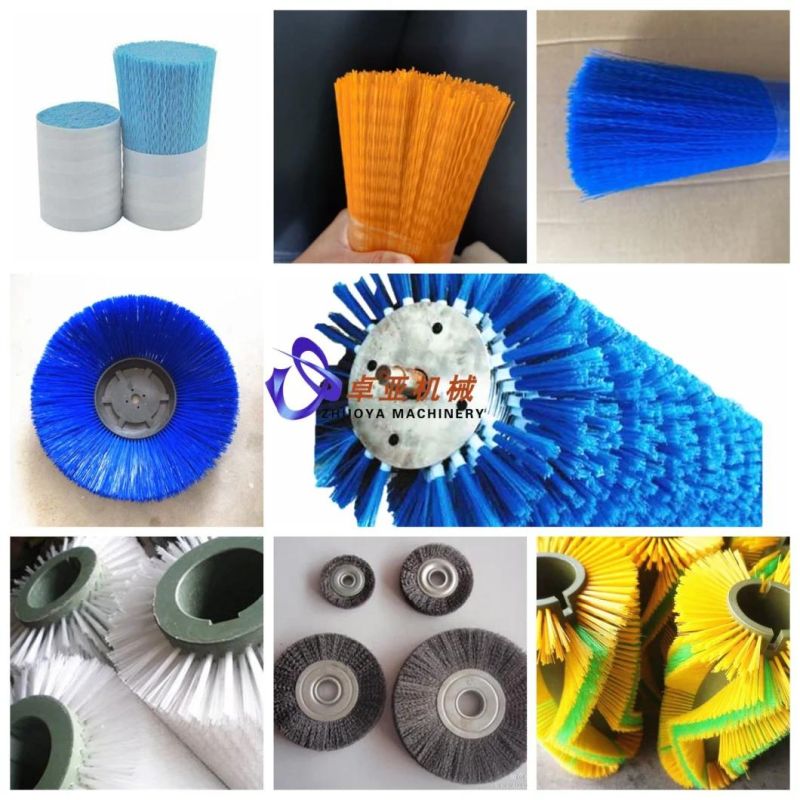

Application
House broom filament , cleaning brush filament, Christmas tree  needle filament, and safety net yarn etc.

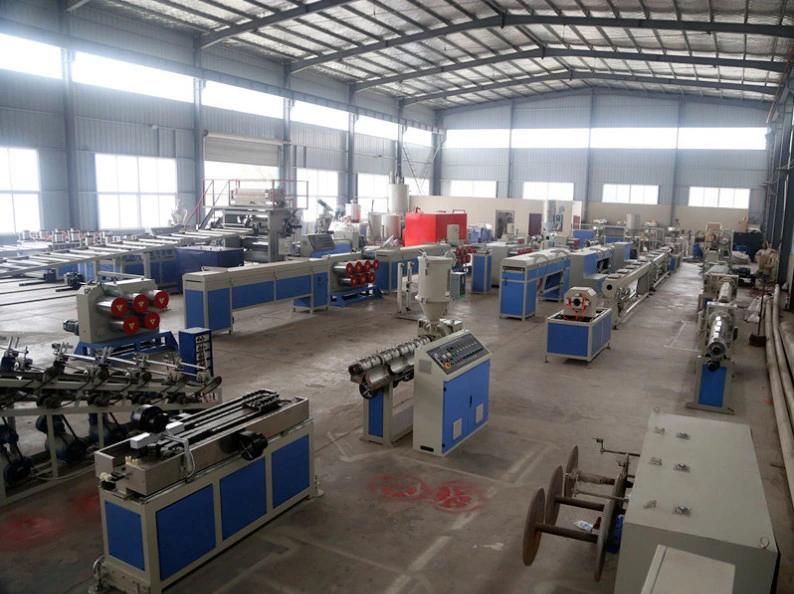

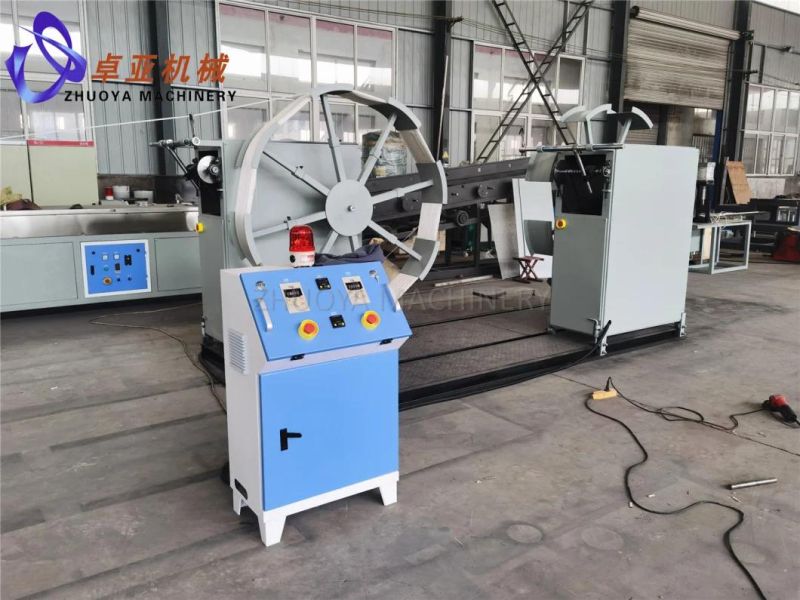

Machine Related Pictures



Service

Pre-service:
Professional engineers to provide pre-sales technical advice and guidance supporting the planning, such as unit selection, matching, room design, answer difficult questions encountered by the user during use and provide technical guidance.

The sale:
Our company will send professional and technical personnel to the installation site for installation and commissioning of the unit after receiving user notification , and do a good job with the user acceptance.
Standard unit responsible for guiding installation, commissioning.

After-service:
The warranty period: from the date of acceptance or the date of one year warranty accumulated 1,000 hours (whichever occurs both), as a result of parts factory assembled negligence or improper design and selection of raw materials and other reasons caused the damage or other unit fault, may be responsible for the warranty by the supplier.

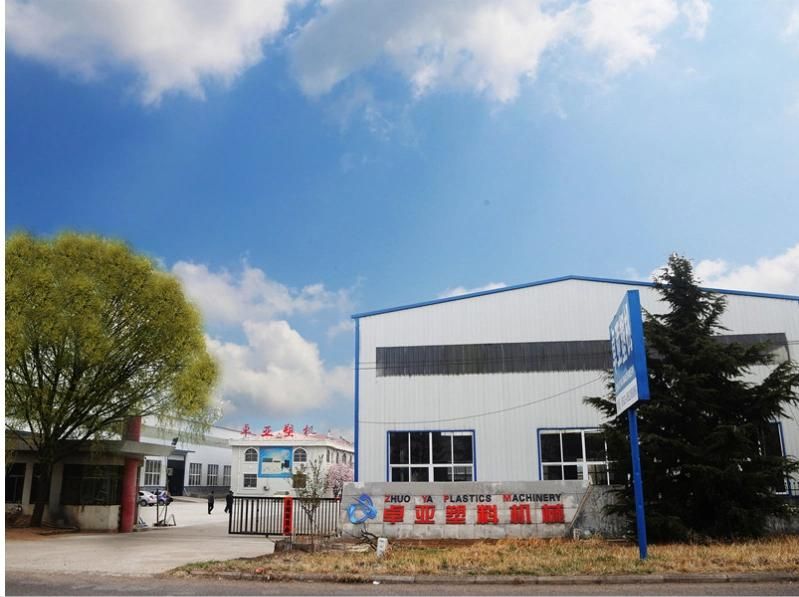

Company Information

Qingdao Zhuoya Machinery Co., Ltd. is the science and technology knowledge-intensive corporation integrated with research and development, fabrication, sales and service, professionally engaged in the manufacture of plastics processing complete equipment.The company always obeys the principle of "credit is the basis, quality is the life, innovation is the pursue , service is the main " , keeps the quality promise for customers, focuses on introducing and cultivating talent, cooperates with many science and research institutes, has strong technology power and perfect testing means, integrates advanced technology advantages and rigid equipments and has introduced many technologists with working experience in research and development and fabrication of plastics processing whole equipments, and understanding and experience accumulation in plastics process and plastics machinery design matching; all of these have ensured high quality and excellent performance of our fabrication of plastics machinery equipments.






Contact
Sales Manager: Ms. Lucia
Web: zyaextruder.en.made-in-china.com
