China Supplier Fully Automatic Pet Film Rewinding Machine
Jiaxing Patsons Electronics & Machinery Co., Ltd.- Transport Package：Packing in Standard Export Wooden Case.
- Specification：CE, SGS, ROHS, BV
- Trademark：PPD
- Origin：China(Mainland)
Base Info
- Model NO.：PPD_PET700A
- HS Code：84778000
- Production Capacity：10units,Month
Description
Basic Info.
Model NO. PPD_PET700A HS Code 84778000 Production Capacity 10units/MonthProduct Description

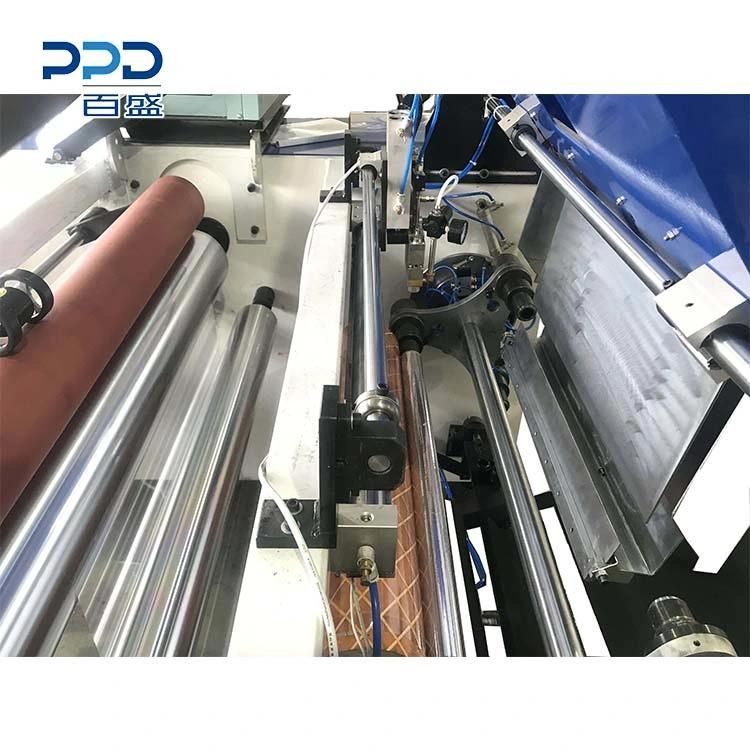

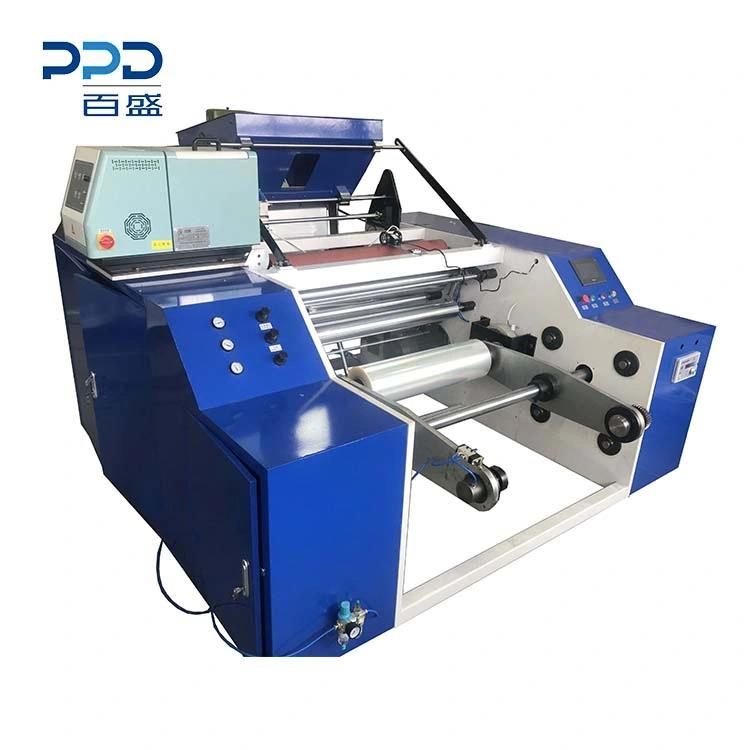

Fully automatic PET rewinding machine is mainly used for film rewinding of BOPP, OPP, PET, CPP, CPE, PVC, PE, etc.

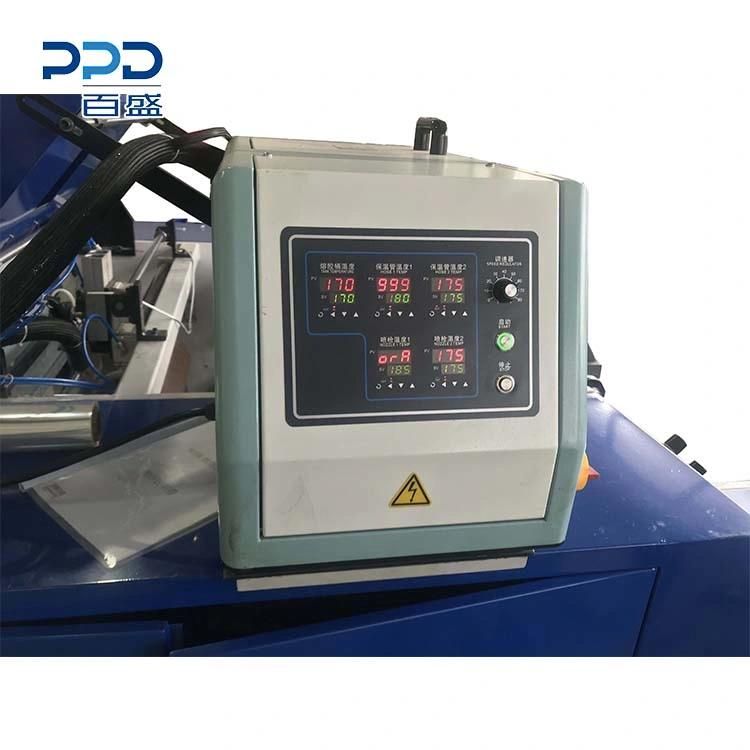

The machine is controlled centrally by the PLC, and the touch screen man-machine interface is used for centralized operation of the whole machine, which is simple in operation and highly automation.

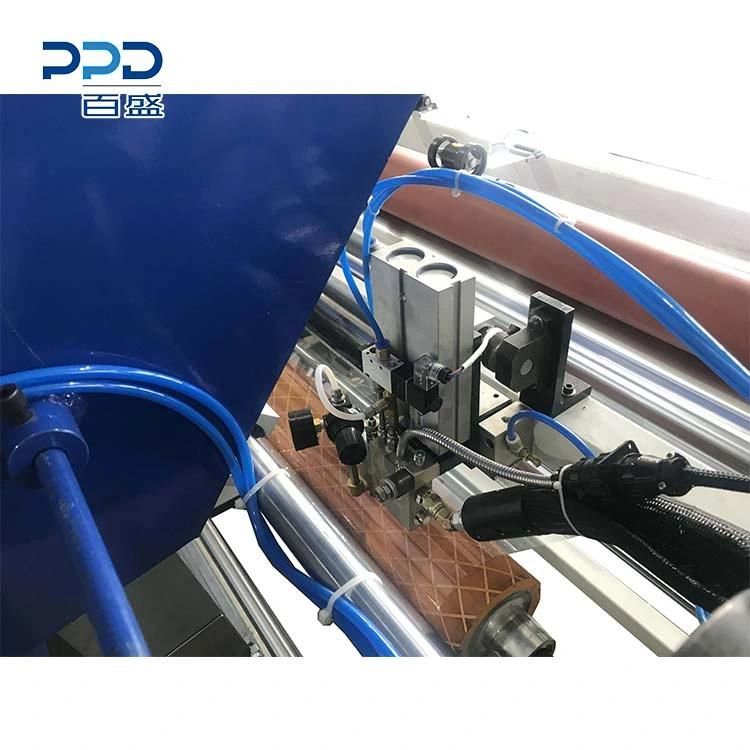

It is automatic gluing,automatic rewinding,automatic counting,automatic cutting,reduce the laber cost.
Main data:
Name:Fully automatic PET rewinding machine
Model:PPD-PET700A
Width of raw material:700mm
Maximun unwinding roll diameter:400mm
Inner diameter of raw material roll core:76/152mm
Inner diameter of finished product roll core size:38/50/76mm
Width of finished product roll:max700mm
Length of finished product roll:5-200mm option
Production speed:900rpm/min
Voltage:220/380/415/450V option
Power:4.37kw
NOTE:Different sizes can be customized.
