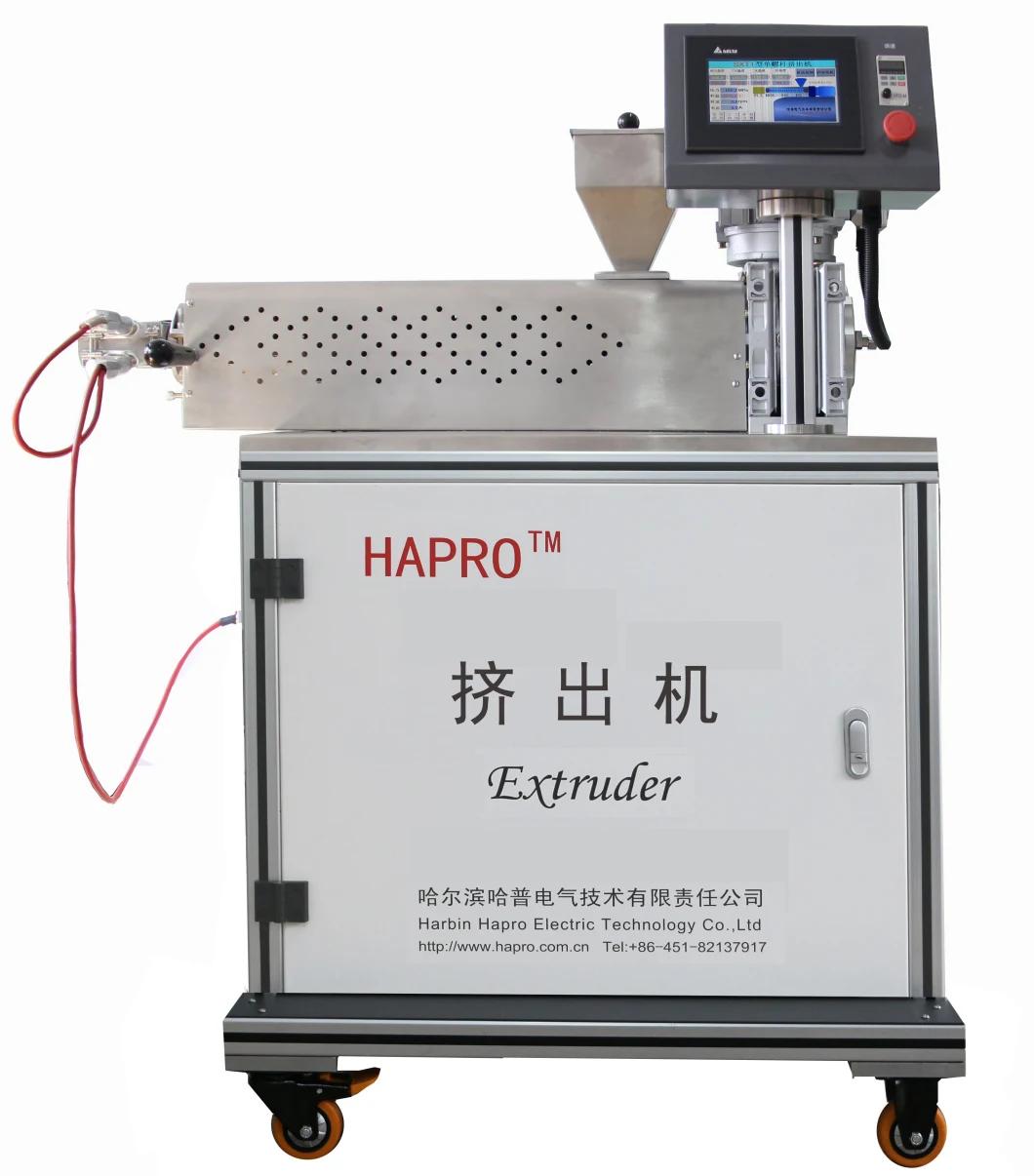

The Laboratory Is Equipped with Single Screw Extruder with Motor Measuring System
Harbin Hapro Electric Technology Co., Ltd.- After-sales Service：a Lifetime
- Warranty：1 Year
- Type：Sheet Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Assembly Structure：Separate Type Extruder
- Screw：Single-Screw
- Engagement System：Intermeshing
- Screw Channel Structure：Non Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Screw Diamter：20mm
- Screw L/D：25,1
- Screw Types：Many
- Die Heads：Many
- Screw Material：38 Crmoala
- Compression Ratio：2.4,1
- Transport Package：Plywood
- Trademark：Hapro
- Origin：China
- HS Code：9024800000
- Production Capacity：100,Year
Description
Dies head
(Select two from four)Capillary Die (InnerФ1.0,Ф1.27,Ф2.0 L:D:20/1,30/1,40/1) Flat Die( L×W:60×1.5 mm, 0.8 kW) Pipe Die(Inner Ф10, Outer Ф12.5) Coating Wire Die
(Core Ф1.5,Die outlet Ф4.0)
(Select two from four)
(Core Ф1.5,Die outlet Ф4.0)
