ISO Certificated 16mm-1200mm HDPE Pipe Irrigation Pipe Machine PE Water Pipe Making ...
Qingdao Weier Plastic Machinery Co., Ltd.- Type:Pipe Extruder
- Plastic Processed:PE
- Feeding Mode:One Feed
- Assembly Structure:Integral Type Extruder
- Screw:Single-Screw
- Engagement System:Full Intermeshing
Base Info
- Model NO.:SJ120
- Screw Channel Structure:Deep Screw
- Exhaust:Exhaust
- Automation:Automatic
- Computerized:Computerized
- Diameter:10-1200mm
- Speed Line:0.1-30m,Min
- Output:20-1500kg,H
- HDPE PP PPR Pipe Production Line:Single Layer or Multi-Layers
- Temperature Control:Omron
- Plastic Pipe Making Machine Line:HDPE PP PE PPR LDPE Pex Material
- HDPE PPR Water Supply Pipes Machine:Used for Water & Gas Supply
- Name:ISO Certificated 16mm-1200mm HDPE Pipe Machine
- Transport Package:Simple Packing
- Specification:follow customers′ need
- Trademark:WEIER
- Origin:Qingdao China
- HS Code:84772090
- Production Capacity:10 Sets,Month
Description
Basic Info.
Model NO. SJ120 Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Diameter 10-1200mm Speed Line 0.1-30m/Min Output 20-1500kg/H HDPE PP PPR Pipe Production Line Single Layer or Multi-Layers Temperature Control Omron Plastic Pipe Making Machine Line HDPE PP PE PPR LDPE Pex Material HDPE PPR Water Supply Pipes Machine Used for Water & Gas Supply Name ISO Certificated 16mm-1200mm HDPE Pipe Machine Transport Package Simple Packing Specification follow customers′ need Trademark WEIER Origin Qingdao China HS Code 84772090 Production Capacity 10 Sets/MonthProduct Description
ISO certificated 16mm-1200mm hdpe pipe irrigation pipe machine pe water pipe making machine:With this production line(ISO Qualified HDPE Pipe Making Machine PE Pipe Machine),It can produce single layer or multi-layer PE PP PPR PIPE
The whole production line from changing to stacking shall be controlled automatically by PLC, having
high reliability, easy operation and maintenance.
The outstanding characteristics of this production line is that in can not only produce the pure PE pipe
complying with the international standard, but also produces the wire reinforcing composite plastic pipe.
1)PE pipe machine used to produce irrigate water pipe
2)High technology and long year experience

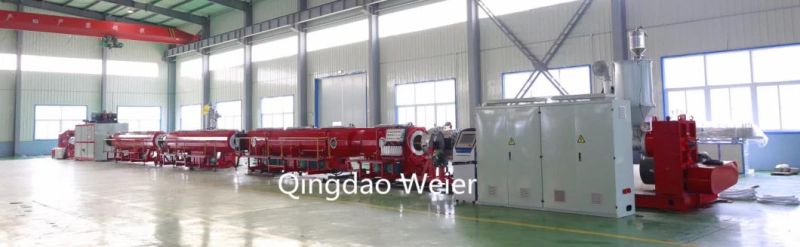

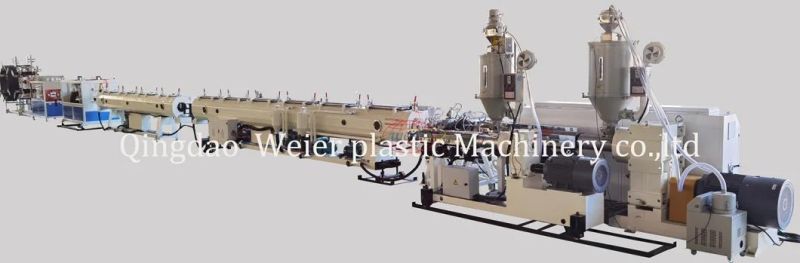

It mainly includes
1)single screw extruder,
2)pipe extrusion die,
3)vacuum calibrating water tank,
4)spray cooling water tank,
5)hauling unit,
6)cutting unit
7)stack unit.
We have this machine in stock for checking; Welcome to VISIT US;
20-63mm | SJ-65/30 + SJ-25/25 | 100-200KG/HR | 104kw |
63-160mm | SJ-65/33 + SJ-25/25 | 120-300kg/hr | 130kw |
75-250mm | SJ-75/33 +SJ-25/25 | 280-400kg/hr | 260kw |
160-450mm | SJ-90/33 + SJ-25/25 | 500-700kg/hr | 400kw |
315-630mm | SJ-120/33 + SJ-25/25 | 700-900kg/hr | 500kw |
450-800mm | SJ-150/33 + SJ -25/25 | 1000-1100kg/hr | 700kw |
Our service
Pre-sale
We provide presales service in various forms, for example, making investment budget, manufacturing
Planning, etc. so that customers make a reasonable plan with less cost.
Investment budgeting---We provide services of product profit analysis, recommendation of machine and
Auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
Plant Planning---We provide the mounting dimension of the equipment base, design of equipment layout,
Workshop ventilation, water transmission etc.
On-sale
Detailed design of workshop lay-out
Technological information of provided products
Schedule about design, manufacture and installation
Working & Producing process
Training courses for the technician team so that the installation is safe and standard
After-sale
For customers buying our products, we provide them training so that they can use and maintain the machine
independently.
We will offer to customers technical support in time. If needed, we will offer on-line guidance and assistance.
We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
We will prioritize the product upgrading of previous customers.
