• Condition：New
• Motor：Siemens Brand
• Inverter：ABB Brand
• Contactor：Schneider
• Temperature Controller：Omron,FUJI,Rkc Brand
• Transport Package：Film, Container
• Origin：China
• HS Code：84778000
• Production Capacity：up to Different Model

Overview

Product Description

PVC pipe production line, we can supply different machines for diameter from 16mm to 800mm .

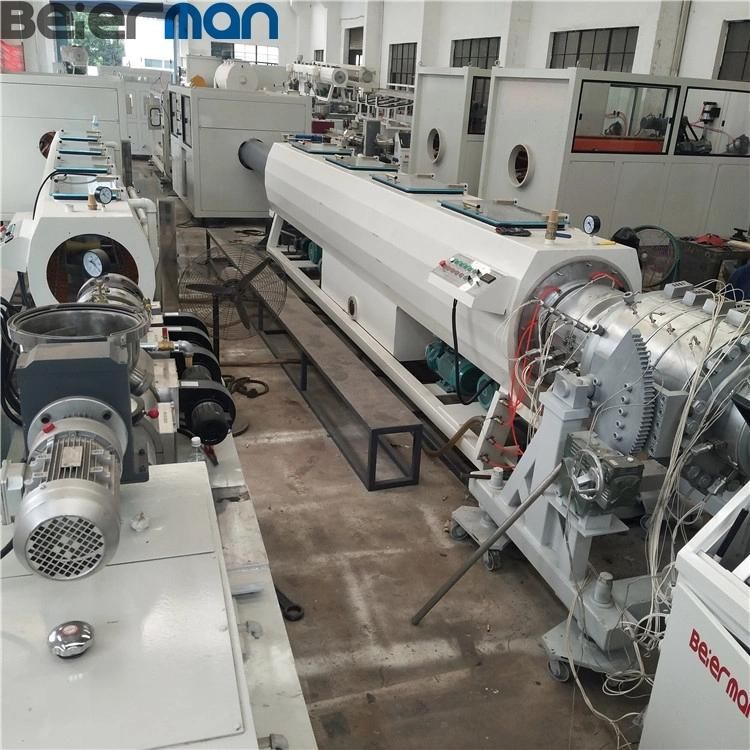

Zhangjiagang city Beierman Machinery 315-630mm large PVC pipe extrusion line  , with GF series auxiliary machinery, specially designed for PVC pipe, is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc .

The main conical twin screw extruder is a kind of special equipment for raw material PVC powder to extrude pipe.

The screw has applied oil cooling system, barrel is cooled by special wind cooling system, and the system is specially compute controlled. According to customer's requirements, most reasonable screw can be made in order to achieve best plasticity state and material quality, that is easier to extrude pipe.

For different diameter range pipe,will be equipped with corresponding different production lines.
we can supply PVC pipe production lines for diameter:
16mm,20mm,25mm,32mm,40mm,50mm,
63mm,75mm,90mm,110mm,125mm,160mm,200mm,
250mm,280mm,315mm,
355mm,400mm,450mm,500mm,550mm,
630mm,710mm,800mm.

each different pipe production line will include:

the 315-630mm complete PVC pipe production line will include:
1,DTC-1000 screw conveyor;
2,SRL-Z500/1000 PVC powder hot/cold mixer unit;
3,DTC-1000 screw conveyor/ or:ZJF700 spring conveyor;

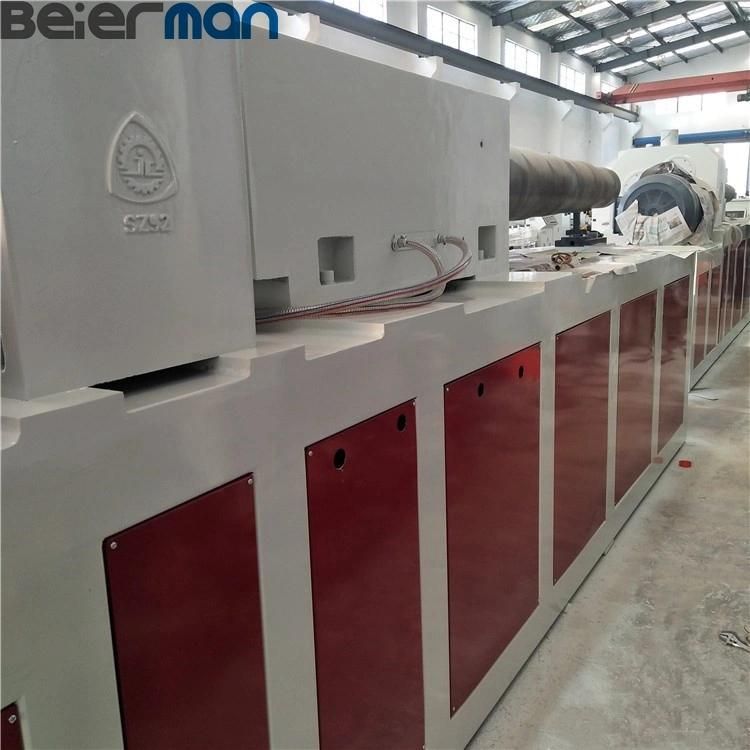

4,SJSZ92/188 conical twin screw extruder;
5, 315-630mm mould:315mm,355mm,400mm,450mm,500mm,630mm.

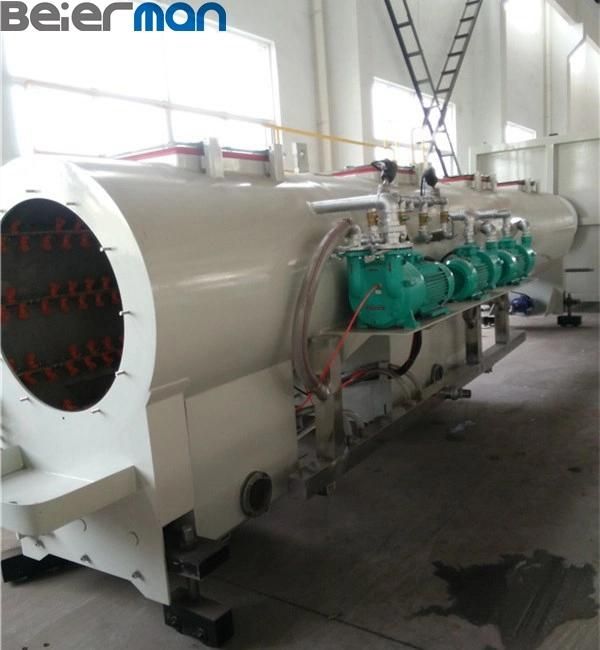

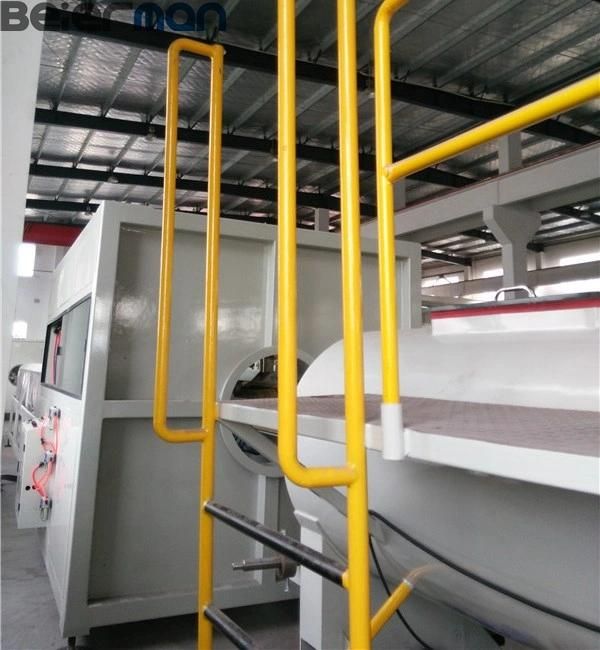

6, 315-630mm vacuum forming tank
7, 315-630mm six caterpillars haul off machine

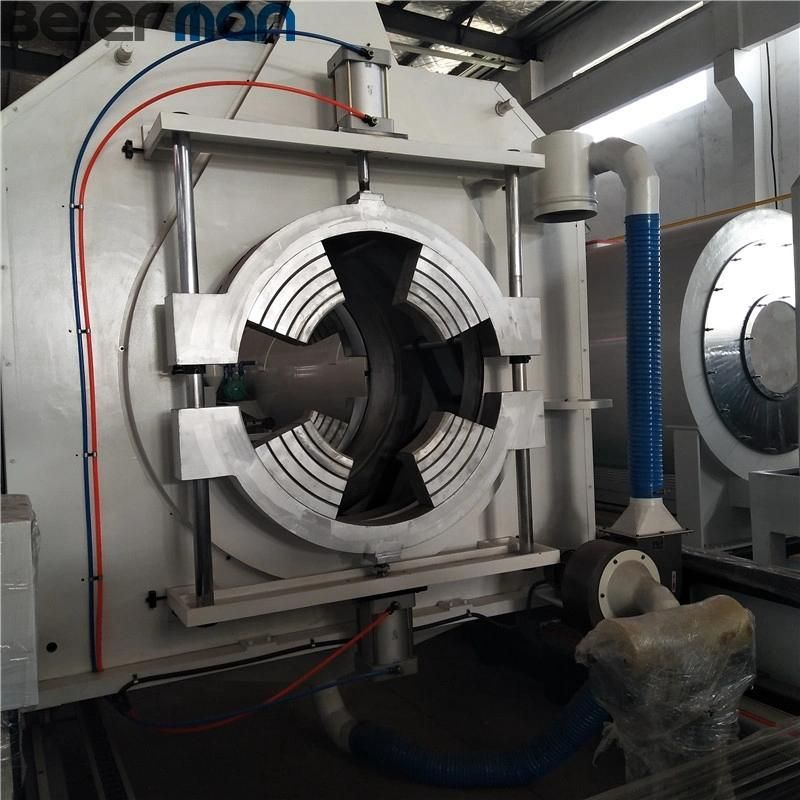

8, 315-630mm planetary cutting machine;
9, stacker(or belling machine,up to customer's choice)

Detailed Photos

Packaging & Shipping

Company Profile

- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.

- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.

- we have already get CE certificate for our machines and factory, which ensured the high quality level of all machines we are producing

- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.

- there will be 1-2 new produced machines will be showed to the customers every year.

- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.After Sales Service

Exhibition

FAQ
