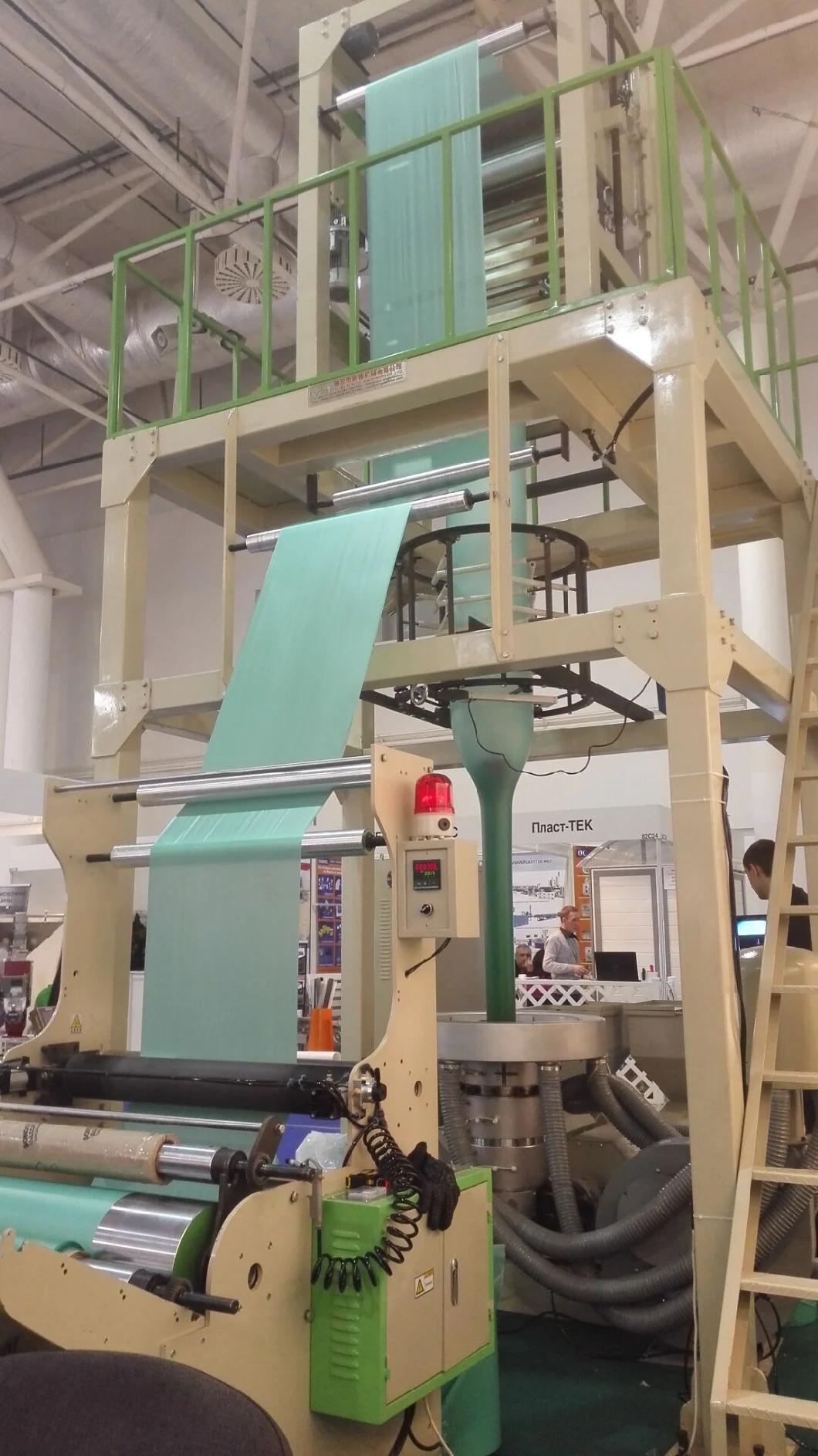

ABA Film Blowing Machine
Ruian Mingde Machinery Co., Ltd.- Type:Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material:PE
- Maximum Folding Width of Film:800mm
- Screw Diameter:50mm
- Automation:Automatic
- Computerized:Computerized
Base Info
- Model NO.:MD-ABA
- Machine Weight:3000kgs
- Certification:CE, ISO9001:2008
- Temperature Controller:China Frist Brand Xiamen Yudian
- Transport Package:Nude Packing
- Specification:4.5× 2.2× 6.5(meter)
- Trademark:MINGDE
- Origin:China
- HS Code:8477209000
- Production Capacity:50sets,Year
Description
Basic Info.
Model NO. MD-ABA Machine Weight 3000kgs Certification CE, ISO9001:2008 Temperature Controller China Frist Brand Xiamen Yudian Transport Package Nude Packing Specification 4.5× 2.2× 6.5(meter) Trademark MINGDE Origin China HS Code 8477209000 Production Capacity 50sets/YearProduct Description
Model | MD-ABA50,55 |
Suitable Material | HDPE,LDPE |
Max Film Width(mm) | 1200 |
Film Thickness(mm) | 0.012-0.12mm |
Max Extrusion Output | 120kg/hr |
Gear Box | 146X1,173×1 |
Screw Diameter(mm) | φ50×1, φ55×1 |
Screw L/D Ratio | 28:1 |
Screw's Material | 38CRM(55 |
Barrel's Material | 38CRM |
Barrel's Cooling Fan | 370W×2×2 |
Thermo Control (zone) | 3×2 |
Driving Motor (kw) | 18.5kwx1,22×1 |
Die Size (mm) | HD:φ150 LD250 |
Screen Changer | Normal |
Thermo Control (zone) | 3 |
Air Ring | 1 |
Cooling Blower (kw) | 5.5 |
Center Steady Stick | 1 |
Roller Width (mm) | φ138×1300 |
Embossing Roller Width | 700mm |
Take-UP Motor (kw) | 1.1 |
Take-UP Speed(M/min) | 10-60 |
Height adjustable type | yes |
Type OF Winder | Single winder with air shaft |
Roller Width (mm) | 1300 |
Winding Motor (N.M) | 16 |
Winding Speed(M/min) | 10-80 |
Voltage | 380V,3P,50HZ |
Cover Dimensions (m) | 4.5×2.2×6.5 |
