Prestressing Corrugated Tube Spiral Duct Forming Machine

Shanghai Muhong Mechanical and Electrical Equipment Co., Ltd.
  • Product Type：Prestressing Corrugated Pipe
  • Screw No.：Multi-screw
  • Automation：Non-Automatic
  • Computerized：Non-Computerized
  • Certification：CE
  • Customized：Non-Customized

Base Info

  • Model NO.：spiral duct OD: 35--150mm
  • Condition：New
  • Transport Package：Wooden Box
  • Specification：spiral duct OD: 35--150mm
  • Trademark：MH
  • Origin：China
  • HS Code：8455229090
  • Production Capacity：300 Units,Year

Description

Basic Info.

Model NO. spiral duct OD: 35--150mm Condition New Transport Package Wooden Box Specification spiral duct OD: 35--150mm Trademark MH Origin China HS Code 8455229090 Production Capacity 300 Units/Year

Product Description

strip width: 36mm
motor power(constant speed motor): 4kw
material: galvanized steel, Q195
thickness: 0.25--0.40mm
spiral duct OD: 35--150mm
cutting motor: 0.75kw
cooling pump motor: 90W
powerless uncoiler: as above photo
electric: 380v,50hz,3ph
dimension: 1350mm x 1450mm x 1550mm
weight: 650kg(not include molds)
machine includes electrical parts:
buttons, power light, AC contactor, transformer, air switch and travel switch
electrical parts brand: DELIXI or CHINT

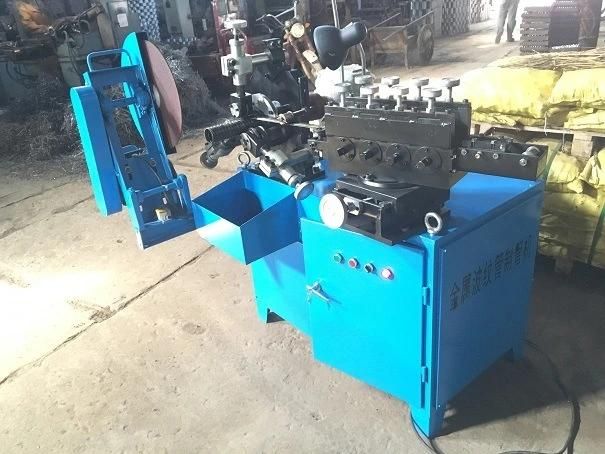

Prestressing Corrugated Tube Spiral Duct Forming Machine
