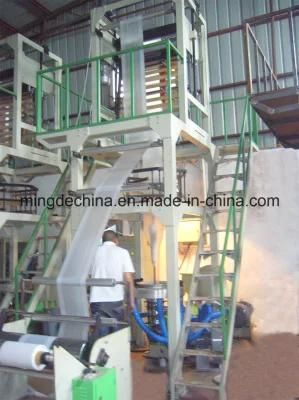

Rotary Head PE Film Blowing Machine (MD-HL50)
Ruian Mingde Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：LDPE
- Maximum Folding Width of Film：1200mm
- Screw Diameter：65mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：MD-HL50
- Machine Weight：2000kgs
- Certification：CE, ISO9001:2008
- Color：Green
- Transport Package：Nude Packing,Wooden Case
- Specification：CE, ISO9001
- Trademark：Mingde
- Origin：China
- HS Code：8477209000
- Production Capacity：100sets,Year
Description
Extrusion UnitHard-face Gear Case 146 Screw Diameter Φ50mm from Zhoushan China Screw Material 38 CRMOALA
38 CRMOALA Barrel's Material Screw L/D 28:1 Main Motor Power 11kw Frequency inverter From China Cylinder Cooling 250wx2 Thermo Control (zone) 3 Extrusion Die Die Size HD:60mm
LD:150MM Screen Changer Standard Manual Thermo Control (Zone) 2 Air Ring(mm) Φ620 Cooling Blower(kw) 1.5 Center Steady Stick 1 pcs Take-up Unit Traction Roller Width φ138×650mm Embossing Roller Width 550mm Take up Motor(kw) 0.75 Take Up Speed 10-60m/min Winding Unit Rewinding Type Single Rewinder.Surface Friction Winder Rewinding shaft Normal shaft Roller Width 1300mm Winding Motor 16KW Rewinding Speed 10-60m/min Voltage 380V,50HZ,3PHASE Machine Dimension 4500x2000x4300(mm)
38 CRMOALA
LD:150MM
