• Model NO.：HT-110
• Customized：Customized
• Certification：CE
• Condition：New
• Color：Customized
• Voltage：380V
• Transport Package：Wooden Case or Stretch Film Wrapped
• Specification：2.5*2.8*0.68
• Trademark：Hengtuo
• Origin：Ruian Zhejiang China
• HS Code：84778000
• Production Capacity：50

Basic Info.

Model NO. HT-110 Customized Customized Certification CE Condition New Color Customized Voltage 380V Transport Package Wooden Case or Stretch Film Wrapped Specification 2.5*2.8*0.68 Trademark Hengtuo Origin Ruian Zhejiang China HS Code 84778000 Production Capacity 50

Product Description

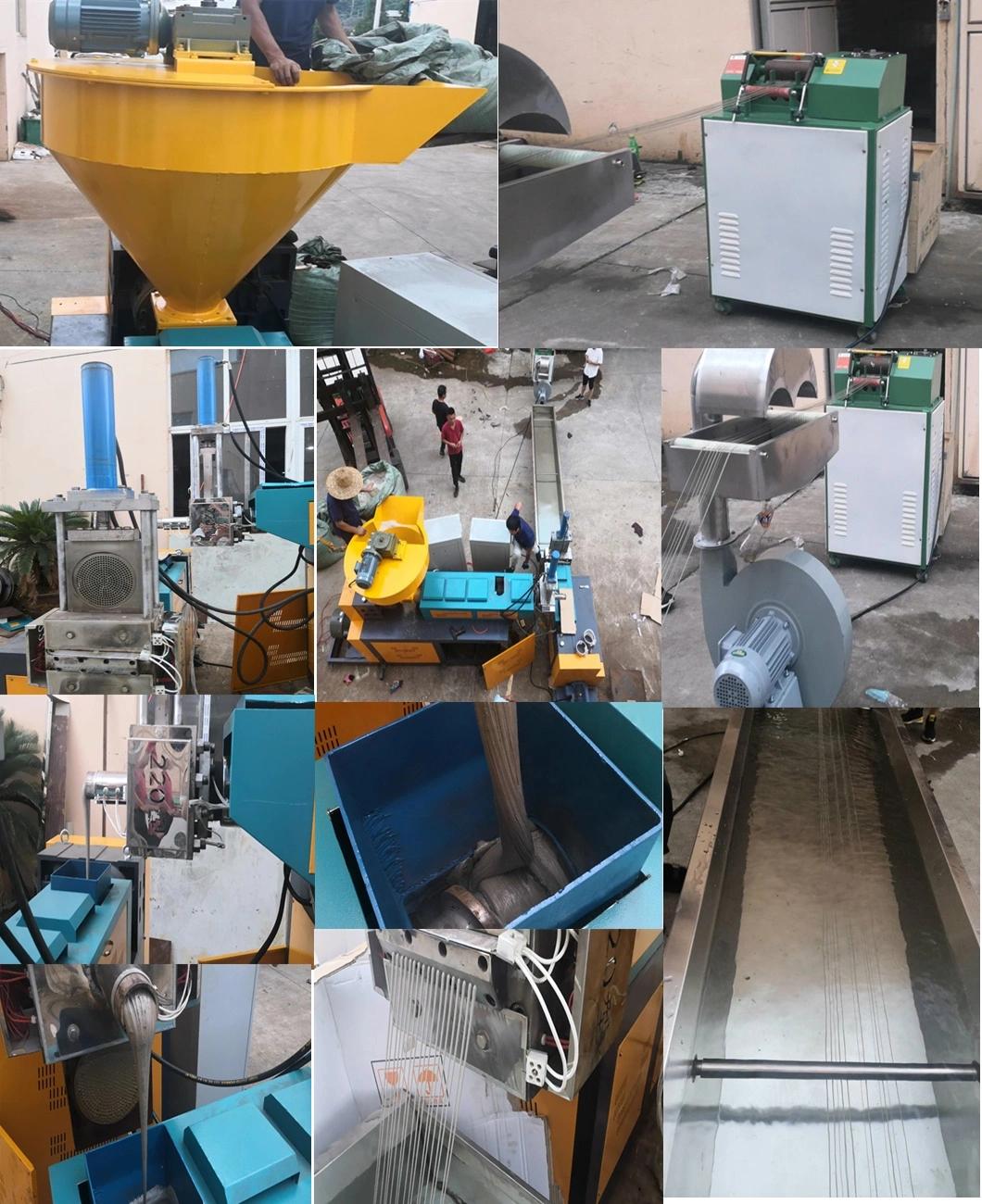

HT 90-100-110-120 waste plastic recycling gradulator


Application:
This machine is suitable for regeneration and granulation of waste plastics, such as HDPE , LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelletingwith an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit.


Main technical parameters

model	HT-SJ90	HT-SJ100	HT-SJ110	HT-SJ20
Diameter of screw	90mm	100mm	110mm	120mm
L/D	20:1-22:1	20:1-22:1	20:1-22:1	20:1-22:1
Rational Speed of screw	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main motor power	22kw	22kw	30kw	37kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall	2600kg	2800kg	3000kg	3200kg
