1gallon 4liter 5liter Single Station Single Die-Head Triple Layer Blow Molding Machine

Suzhou OTO Machinery Co., Ltd.
  • Warranty：One Year
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：TK-5S-1-3P
  • Certification：CE, ISO9001:2008, UL
  • After-sales Service：One Year
  • Max. Volume：2liter,0.5gallon
  • Station：Single
  • Die-Head：1~2
  • Screw Diameter：φ60mm,φ70mm
  • Screw L/D Ratio：25:1
  • Output：60kg
  • Extruder Driving Power：15kw
  • Oil Pump Motor Power：5.5kw
  • Claming Force：50kn
  • Air Pressure：0.8MPa
  • Transport Package：Wooden Case, PE Film
  • Specification：16CBM
  • Trademark：OTO
  • Origin：China
  • HS Code：847740
  • Production Capacity：170sets

Description

Basic Info.

Model NO. TK-5S-1-3P Certification CE, ISO9001:2008, UL After-sales Service One Year Max. Volume 2liter/0.5gallon Station Single Die-Head 1~2 Screw Diameter φ60mm/φ70mm Screw L/D Ratio 25:1 Output 60kg Extruder Driving Power 15kw Oil Pump Motor Power 5.5kw Claming Force 50kn Air Pressure 0.8MPa Transport Package Wooden Case, PE Film Specification 16CBM Trademark OTO Origin China HS Code 847740 Production Capacity 170sets

Product Description

0.5 Gallon, 1gallon,5 Liter, 4liter Automatic Extrusion Blow molding machine with conveyor, leak testing, in-mold labeling machine for optional

Basic installation including
  • Die head: special center feeding die head
  • Extrusion system: Adopt imported automatic temperature controlling device. Drive the screw with motor reducer to realize stepless regulating
  • Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder.
  • Blowing device: with bottom blowing type

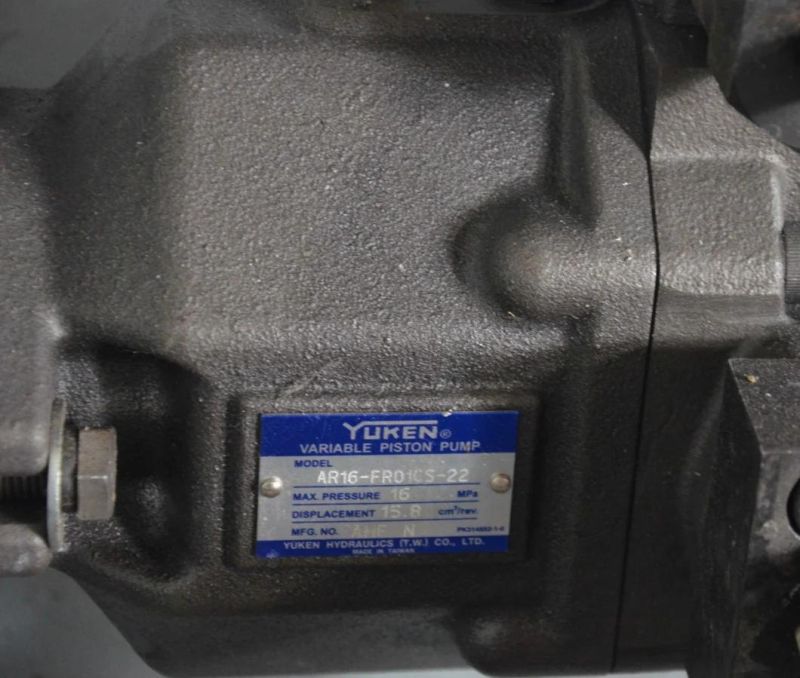

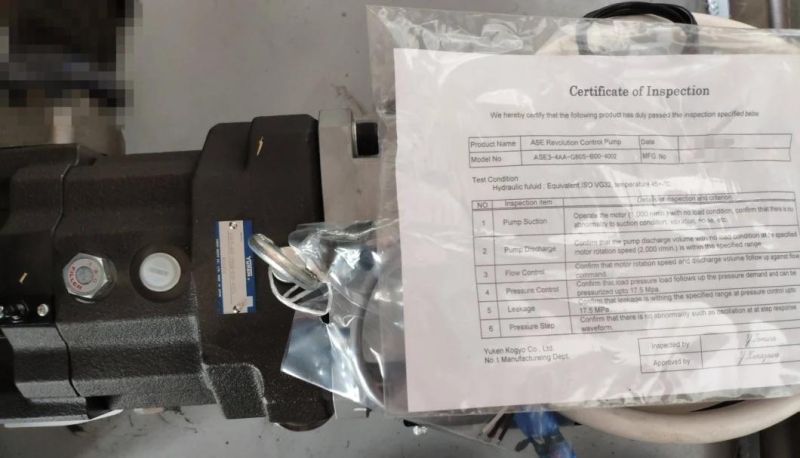

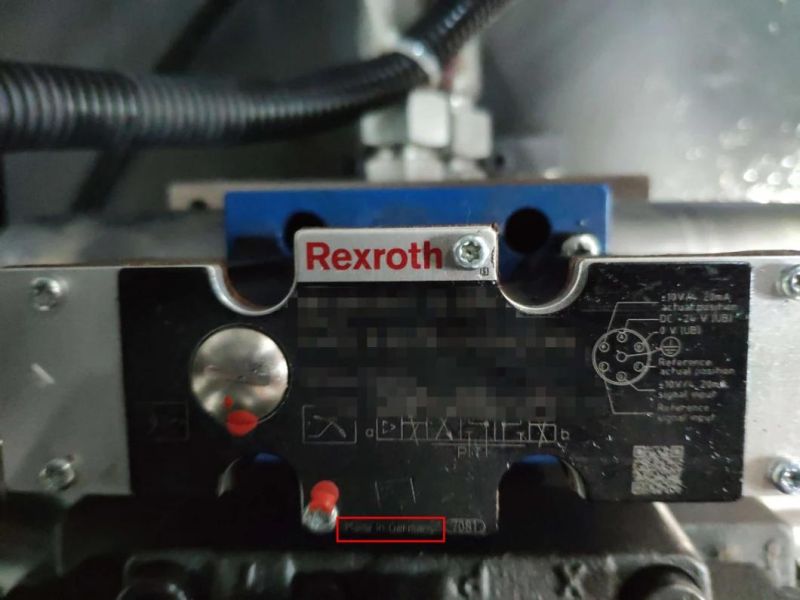

  • Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.

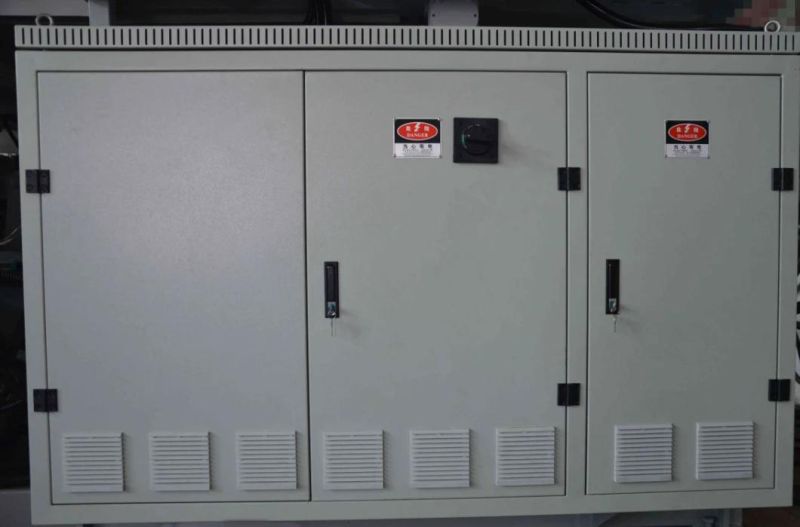

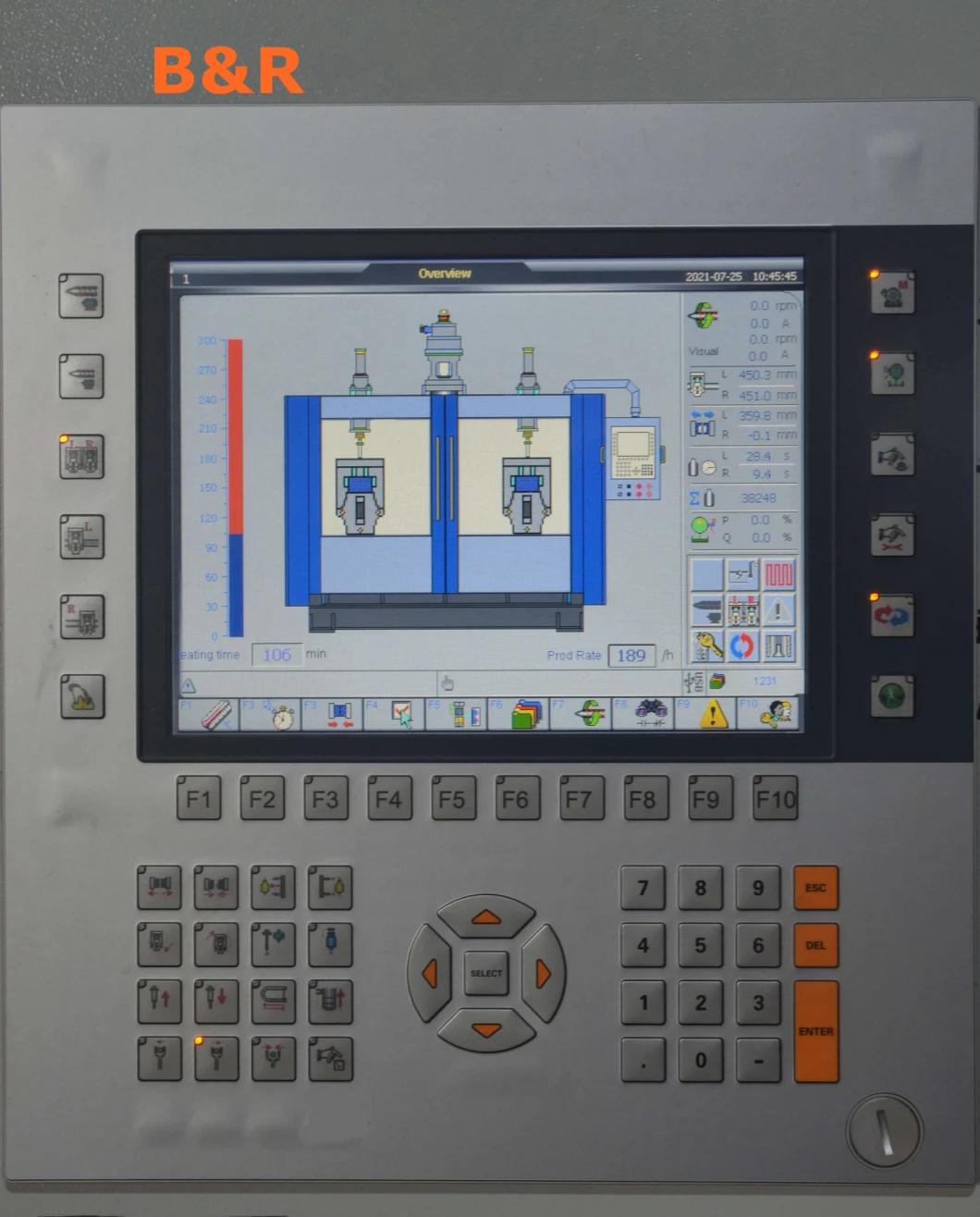

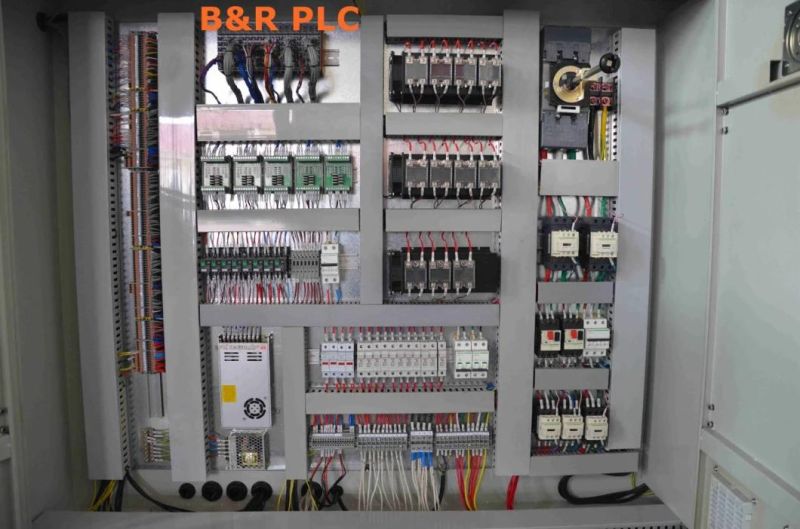

  • Electric controlling system: Adopt Panasonic brand PLC. Every electric component is in famous brand.
