• Model NO.：SJ
• Certification：CE
• CE：3layer
• Transport Package：Wrapping with Film or Sea Worthy Wooden Case
• Specification：CE
• Trademark：TINVA
• Origin：Zhejiang, China (Mainland)
• HS Code：8441200000
• Production Capacity：2 Sets Per Month

Basic Info.

Model NO. SJ Certification CE CE 3layer Transport Package Wrapping with Film or Sea Worthy Wooden Case Specification CE Trademark TINVA Origin Zhejiang, China (Mainland) HS Code 8441200000 Production Capacity 2 Sets Per Month

Product Description

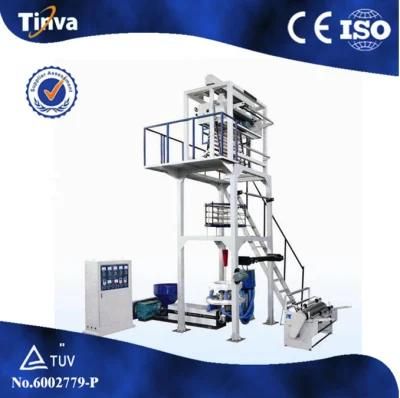

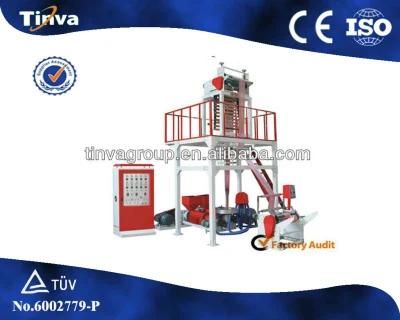

SJ-*3 High speed Three -layer Common extrude PE film blowing machine

Characteristics:
1. Die head is layer type spiral mandrel, continuous 360 rotation.
2. Screen changer design is reliable, safe in operation and change the fitter screen easier.
3. Various functional parts may be installed. Such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.

Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the rounds of preference of analogous lines in foreign and home. The lines can be blown continuous 800/1500mm in fold width, 0.08mm
In the thickness packaging films, film has good insulation, for instance holding temperature, anti-humid, anti-breeze, anti-rain, anti-rost, insulation oxygen oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.

Main Technical Variables
Model 3SJ-1000 3SJ-1200 3SJ-1500
Screw Diameter φ 55x2 φ 60x1 φ 60x2 φ 65x1 φ 65x2 φ 70x1
Screw Ratio L/D 28: 1 28: 1 28: 1
Screw Speed 15-150r/min 15-150r/min 15-150r/min
Main Motor Power 15Kw× 2 18.5Kw× 1 18.5Kw× 2 22Kw× 1 22Kw× 2 30Kw× 1
Extrusion Output(Single) 50kg/h 80kg/h 100kg/h
Range of Die φ 150 φ 200 φ 200 φ 250 φ 250 φ 300
Single-sided Thickness of Film 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
Max. Folding Width of Film 1000mm 1200mm 1500mm
Electric Total Capacity 76Kw 88Kw 102Kw
Overall Dimension 6600x4100x5000mm 6800x4300x6000mm 7000x4800x7500mm
Weight of Machine 4T 5T 6T

Technical parameters are subject to change withourt prior notice.
