• Model NO.：RCSJ RCDJ
• Computerized：Customized
• Certification：ISO9001:2008, CE
• Color：Could Be Customized
• After-Sale Service：Eers Available to Service Machinery Overseas
• Material of Recycling Machines：Stainless Steel
• Electric Grid：3p 220~440V 50 or 60Hz
• Transport Package：Wrap Film
• Specification：TSWL300~3000
• Trademark：RETECH
• Origin：China
• HS Code：8477800000
• Production Capacity：300~3000kg,H

Basic Info.

Model NO. RCSJ RCDJ Computerized Customized Certification ISO9001:2008, CE Color Could Be Customized After-Sale Service Eers Available to Service Machinery Overseas Material of Recycling Machines Stainless Steel Electric Grid 3p 220~440V 50 or 60Hz Transport Package Wrap Film Specification TSWL300~3000 Trademark RETECH Origin China HS Code 8477800000 Production Capacity 300~3000kg/H

Product Description

Plastic PP PE HDPE LDPE BOPP Film Recycling Pelletizing Machine

Plastic PP PE HDPE LDPE BOPP Film Recycling Pelletizing Machine Application:
Model:RCDJ Series
Plastic: HDPE film
Capacity:150kg/h-1200kg/h
Plastic PP PE HDPE LDPE BOPP Film Recycling Pelletizing Machine Features:
RCDJ Series Plastic film pelletizing machine is working to process all kinds of LDPE/HDPE film,such as leftover material,useless shopping bag film,logistic packaging film,etc.

Due to the character of HDPE film,it is high-density polyethylene,so it is with better stretchability compared to LDPE film.When recycling/pelletizing the HDPE film/bag,it is thought and recommended to use bigger motor for drive because of the low flow performance.

Plastic PP PE HDPE LDPE BOPP Film Recycling Pelletizing Machine Models:

Model	Screw Dia	Power Consumption	Labor needed	Capacity(PE)
RC85	85mm	90kw/h	1-2	200-260KG/H
RC100	100mm	135kw/h	1-2	250-320KG/H
RC130	130mm	190kw/h	2-3	450-550KG/H
RC160	160mm	270kw/h	2-3	600-750KG/H
RC180	180mm	420kw/h	3-4	800-1000KG/H

Machine Main Plastic PP PE HDPE LDPE BOPP Film Recycling Pelletizing Machine Parts:

1.Feeding belt conveyor
Usually the HDPE film is collected in bale or loosen shape,it needs an operator to feeding the film into compactor unit. A metal detector device is optional here for checking the metals inside of film, it will detecting and alarming while finding the metals and stop the belt immedietely.
This design is to protect the blades in compactor and protect the screw damage.

2.Compactor

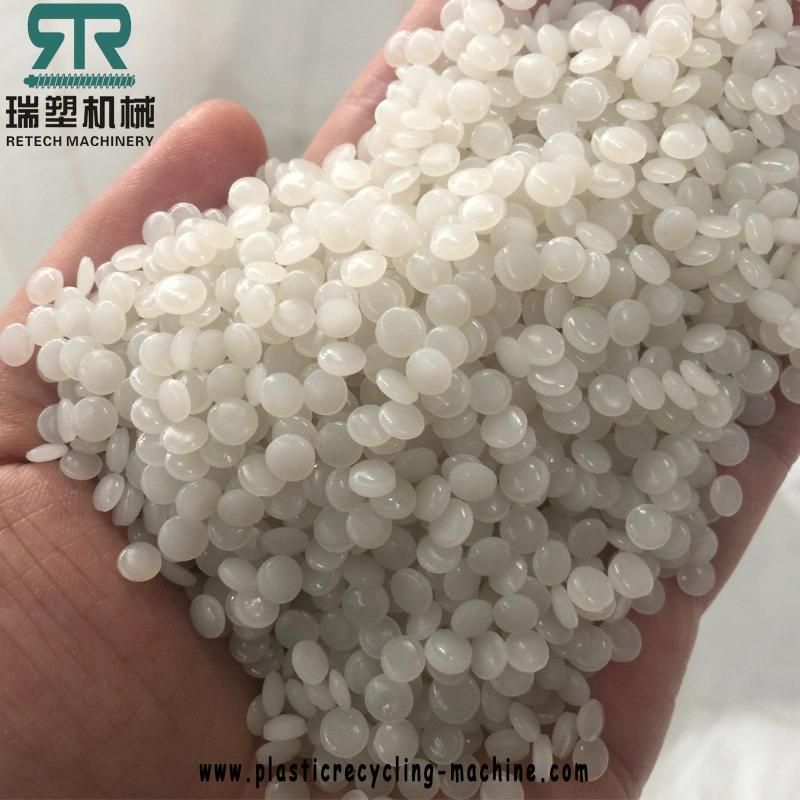

With rotation/stationary blades to cutting inside, the compactor will grind the big film into very small thin film. Cutting create heating and make theHDPE film half-plastifing into granules shape.

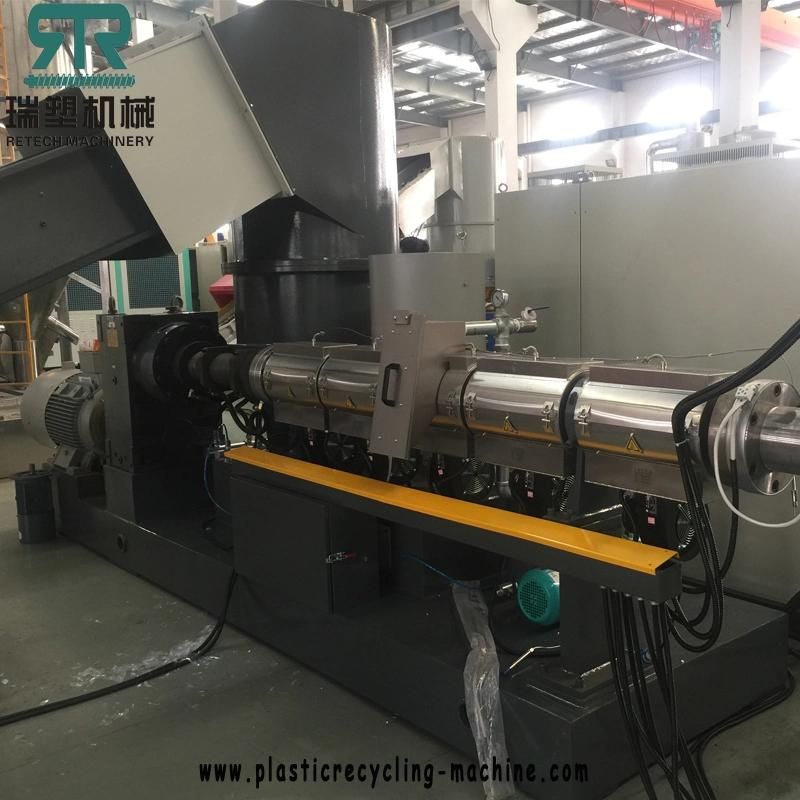

3.Extrusion/Film MeltHDPE film after cut and agglomeration will be feeded into screw extruder in a short time.The electric heated screw in a special designed structure will melting the film. A powerful degassing station must be included here if the foil material is printed.
In the end of screw,we put a sensor the feel the pressure in the screen changing net.If the current here is overload,it will keep alarming and warn the operator to change the nets.
4.Water ring die face cutting systemHorizontal water ring cutting system is more easy operate.Cold water will cooling the hot granules immedietely.A inclined stainless steel flume will bring the cooled granules into dryer.
5.Granules Dewatering DryerWe have 2 options here for drying the wet cooled granules. One is vibrating screen,another is centrifuge force dryer.



No.	Name	Quantity
1	Belt conveyor with metal detector	1
2	Compactor	1
3	RCSJ130/33 main extruder	1
4	RCSJ150/12 baby extruder	1
5	Hydrualic screen exchanger	2
6	Die face cutting system	1
7	Water flume	1
8	Dewatering machine	1
9	Vibrating screen	1
10	Blower conveying system	1
11	Storage hopper	1
12	Electric panel	1

Order flowing process of PP washing line:

Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services

Q&A about recycling machines:

1. What is the function of the PE PP film washing recycling machines?
The PE PP film washing recycling machinery is used to recycle and process the PE agriculture film, PE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. Where does it collect the waste material for the PE PP film washing recycling machines?
The waste mater is gotten mainly from agriculture film, city rubbish and plant in bale package or separated. They are with much dirties, such as the earth, soil, sand, stone, glue, grass, oil, and some other dirties.
But by our many years experience to manufacture the washing line, we can promise to wash the material clean enough to take the washed material into the extruder to make granules. We have our special design to guarantee this point.
3. What are main parts of the PE PP film washing recycling machines?
The following is a standard structure of the PE PP film washing recycling machinery:
Belt conveyer--- crusher with water--- screw conveyer--- floating washer--- screw conveyer--- high speed friction washer--- high speed friction washer--- screw conveyer--- horizontal centrifugal dewatering machine (or squeezer)--- drying system 1--- transition hopper--- drying system 2--- storage silo--- operating panel
The up is a standard structure of the line, we can adjust it to remove some parts or add some parts due to the situation of the material or customers' requirements.
4. What capacity of the PE PP film washing recycling machinery?
300-1000kg/h for single washing line
5. What power of the PE PP film washing recycling machines?
150kw~480kw
6. How much water does it need of the PE PP film washing recycling machines?
3~8T per hour
7. How large space does it need for a PE PP film washing recycling machines?
100~400 square meters, the whole line could be installed by straight, "L" shape or "U" shape. We could design how to instal the machines due to the space of your factory.
8. What is the condition of the final products from the PE PP film washing recycling machines?
The size of final flakes will be 50~100mm, and final moisture level of film flakes will be lower than 5%.
The PP PE flakes can be taken directly to the granulating/pelletizing line to make granules/pellets.
9. What is material of the PE PP film washing recycling machines?
The parts contacted with water are made of stainless steel SUS 304 or customized.
10. What certifications do you have for the PE PP film washing recycling machines?
We have CE and ISO9001 certification for the entire PE PP film washing recycling machines.
