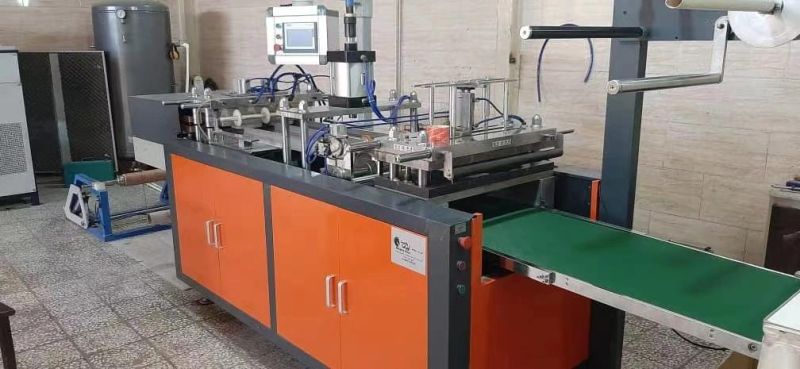

Plastic Lid Forming Machine

Ruian Hoin Machinery Co., Ltd.
  • Warranty：One Year
  • Column number：Double Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Transport Package：Wooden Case
  • Specification：4000*1200*1900mm

Base Info

  • Model NO.：HY-PL600
  • Trademark：HOIN
  • Origin：China
  • Production Capacity：20sets,Month

Description

Basic Info.

Model NO. HY-PL600 Trademark HOIN Origin China Production Capacity 20sets/Month

Product Description

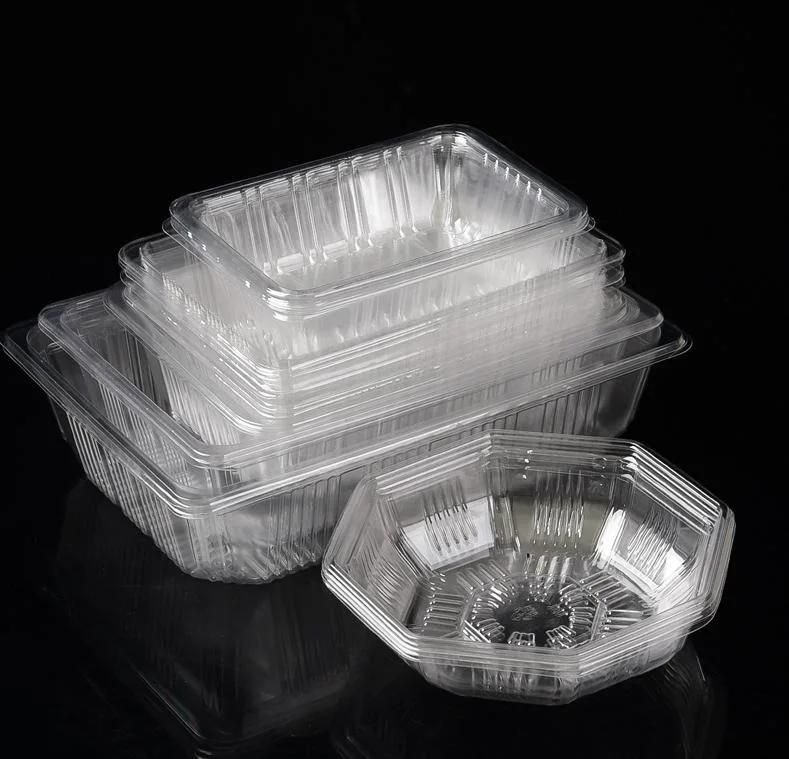

The machine is suitable for sheet of PVC, PS, PET etc.all kinds of covers,containers,trays,lids.
Plastic Lid Forming MachineTechnical parameter
Punch speed10-20punch/min
Mould Install Area630*350mm
Max. Forming size600*320mm
Max. Forming depth50mm
Max. Material width600mm
Material PET(0.06mm)
Stroke30-350mm
Compressed air0.6-0.8Mpa
Mold coolingtap water /recycle water
Total power4Kw
Overall dimension4000*1200*1900mm
Weight 2200kgs
Voltage380V  60Hz
Plastic Lid Forming Machine
