• Model NO.：SDF315
• Customized：Customized
• Condition：New
• After-sales Service：Yes
• Welding Range(mm)：90 110 125 140 160 180 200 225 250 315
• Wprking Voltage：380V 50Hz
• Weight：750kg
• Volume：2.5mx2.5mx2.5m
• Total Power：7.25kw
• Pressure Adjustable Ranges：0-6MPa
• Certificate：ISO Ce
• Accessories：Yes
• Operate video：Yes
• working voltage：380v 50,60Hz
• Wooden box：4 wooden boxes
• Application：Elbow, Tee, Cross
• Temp. Deviation in Surface：Less Than or Equal to 7 Degree Centigate
• Heating Plate Power：5.0kw
• Planning Tool Power：1.5kw
• Transport Package：Wooden Box
• Specification：ISO CE
• Trademark：SUDA
• Origin：China(Mainland)
• HS Code：85152900
• Production Capacity：1000,Sets,Months

Basic Info.

Model NO. SDF315 Customized Customized Condition New After-sales Service Yes Welding Range(mm) 90 110 125 140 160 180 200 225 250 315 Wprking Voltage 380V 50Hz Weight 750kg Volume 2.5mx2.5mx2.5m Total Power 7.25kw Pressure Adjustable Ranges 0-6MPa Certificate ISO Ce Accessories Yes Operate video Yes working voltage 380v 50/60Hz Wooden box 4 wooden boxes Application Elbow, Tee, Cross Temp. Deviation in Surface Less Than or Equal to 7 Degree Centigate Heating Plate Power 5.0kw Planning Tool Power 1.5kw Transport Package Wooden Box Specification ISO CE Trademark SUDA Origin China(Mainland) HS Code 85152900 Production Capacity 1000/Sets/Months

Product Description

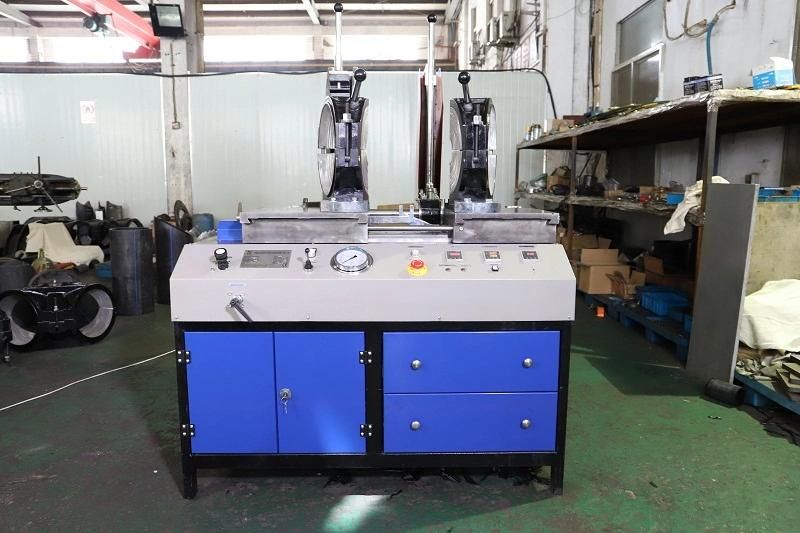

Sdf315 HDPE Pipe Fittings Butt Fusion Welding Machine/PE pipe butt fusion welding machine/Tee Fitting Fabrication Machine
Product Description

1. Suitable for fabricating Elbow, Tee, Cross, Y shape(45° and 60°) fittings of PE PP PVDF in workshop.

2. Integrated structure, nothing remains but to choose the different special clamps while fabricating different fittings.

3. Consist og Basic Frame, Hydraulic Unit, Trimmer, Heater and Electric Control Unit.

4. Removable PTFE cated heating plate with separate temperature control system.

5. Electric Trimmer with reversible double cutting edge blades.

6. Hydraulic unit provides welding machine with compressing power.

7. Low starting pressure ensures reliable welding quality of small pipes.

8. Including the Temperature Controller and Timer, easy to know the time and temperature.

SDF315 Specification

Model	SDF315
Welding Range(mm)	90 110 125 140 160 180 200 225 250 315
Welding Type	0-90°Elbow,Tee,Cross,45° and 60°wyes(optional parts should be used)
Heating Plate Max.Temp	270ºC
Temp.Deviation in Surface	≤±7ºC
Working Voltage	380V 50HZ
Weight	750KG
Pressure Adjustable Ranges	0-6MPa
Heating Plate Power	5.0KW
Planning Tool Power	1.5KW
Hydraulic Unit Power	0.75KW
Total Power	7.25KW

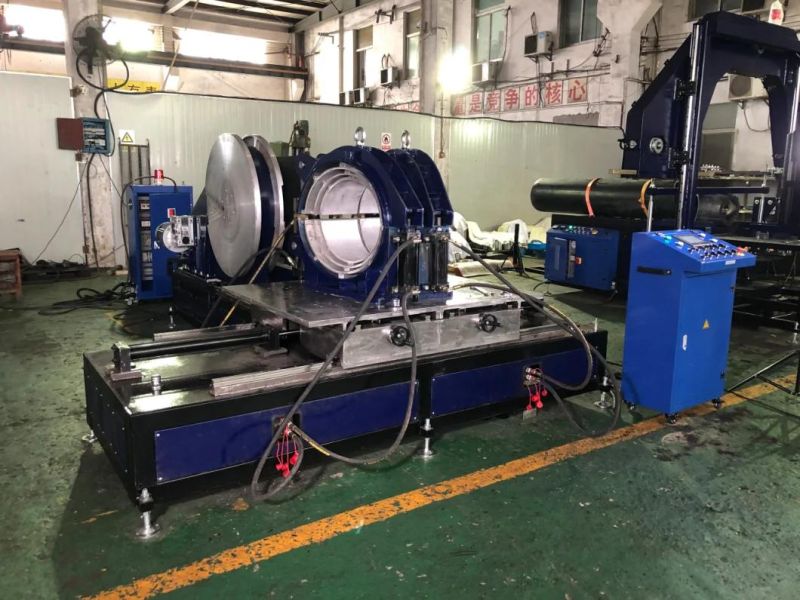

More Pictures

The SDF315 is applicable in the workshop production of PE, PP, PVDF elbow,Tee,Equal Stone,45º and 60º
Y-type tee,lengthening the injection of short pipe fittings,pipe fittings production assembly etc.

-Heating plate with separate temperature control system,Teflon coating
-Electric cutter,safety limit switch to prevent accidental start-cutter
-Independent dual-channel timer,you can record two time periods endothermic and cooling,alarm timer end,
user-friendly

OPTIONAL ACCESSORY
-Y-clamps with inserts
-Narrow clamps with inserts
-Stub end holder
-Auxiliary stand
-Wye Clamps

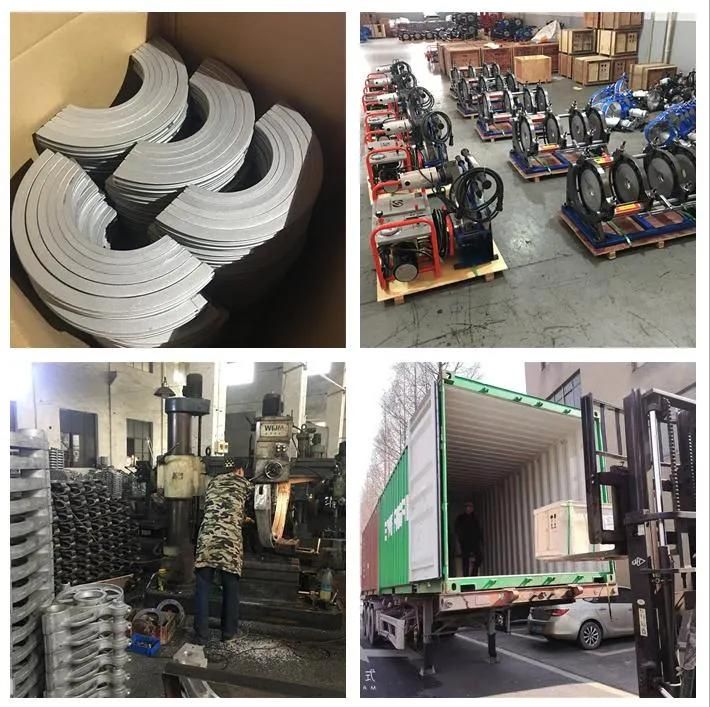

Factory Processing

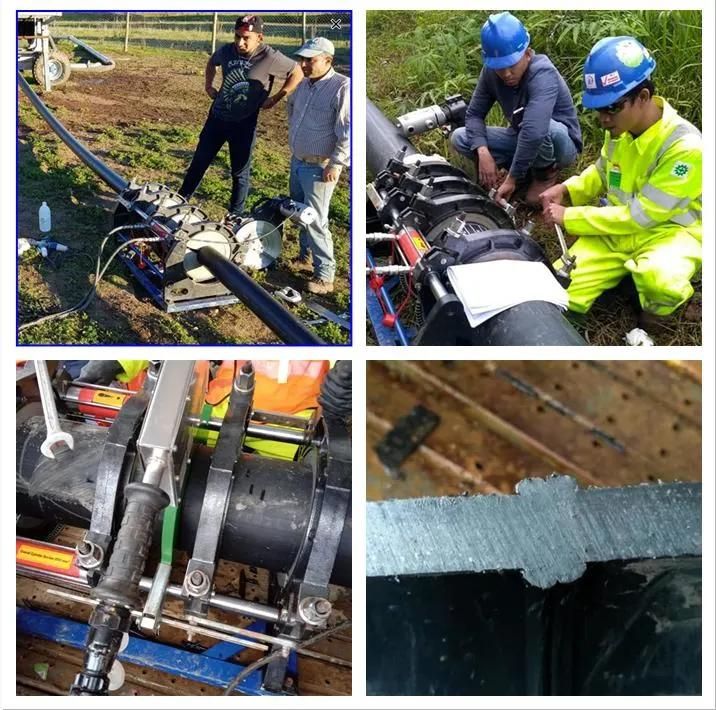

Construction Photos

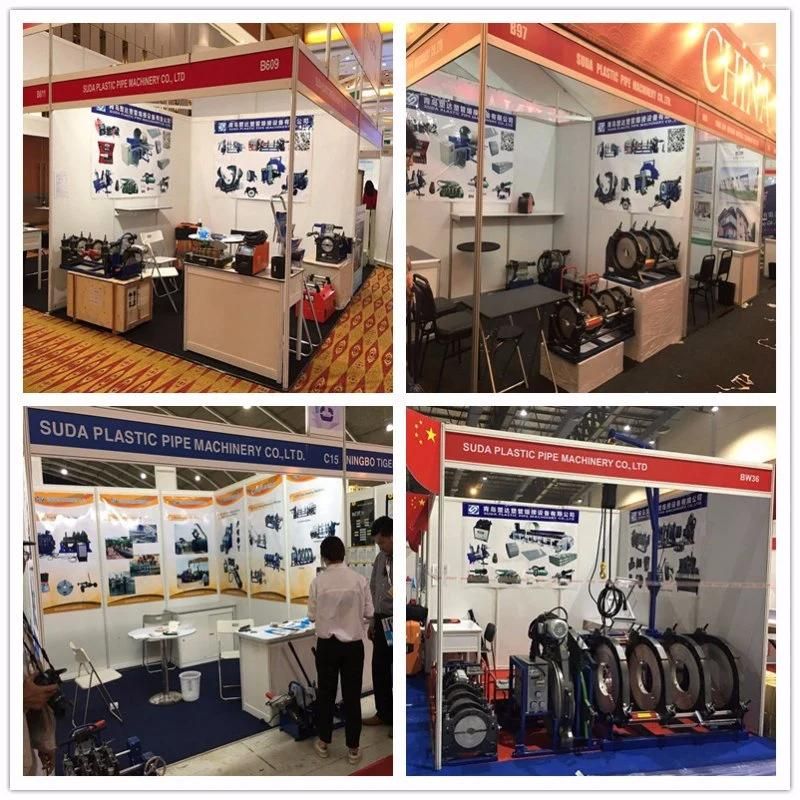

Exhibition

Our Services
1.Sample Services:
Our factory can offer the samples before customers big orders,but customers need pay the samples cost and transport charges.
2.Products Services:
butt fusion welding machine we produce as flows:
1. Manual HDPE butt fusion welding machine from 63mm to 250mm for HDPE pipe.
2. Hydraulic HDPE butt fusion welding machine from 63mm to 1600mm for HDPE pipe.
3. Pipe cutting saws from 0mm to 1600mm for HDPE pipe.
4. Workshop HDPE Fitting machine from 90mm to 1600mm.
