• Model NO.：3SJ-G
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Machine Weight：4T
• Certification：CE
• Speed：High Speed
• Die：Fix Die or Rotary Die
• Rewinder：Single or Double
• Transport Package：Stretch Film Packaging, Wooden Case
• Specification：5.5m*2.1m*4.7m
• Trademark：RILI
• Origin：Made in China
• HS Code：8477209000
• Production Capacity：50 Sets, Year

Basic Info.

Model NO. 3SJ-G Automation Non-Automatic Computerized Non-Computerized Machine Weight 4T Certification CE Speed High Speed Die Fix Die or Rotary Die Rewinder Single or Double Transport Package Stretch Film Packaging, Wooden Case Specification 5.5m*2.1m*4.7m Trademark RILI Origin Made in China HS Code 8477209000 Production Capacity 50 Sets/ Year

Product Description

Three Layer Co-Extrusion Heavy Packaging ABC Film Blowing Extrusion Machine

Introduction:
Three-layer plastic coextrusion blow molding composite film units are developed by us according to the market requirements. In the design structure, advanced levels of similar products at home and aboard are absorbed. They are applicable to LDPE, HDPE, LLDPE, MLLDPE and PA packaging films. Such films can be widely used in light and heavy packages such as various kinds of fresh fruit, meat wares, pickles, fresh milk and liquid drinks because they are quite able to provide barriers, preserve moisture, and resist damp, rain, wind, frosting and oil, and isolate oxygen.


Film blowing machine features:

Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment

Heaters: stainless heaters



Film blowing machine control Panel

1. Temperature of barrel and die head controlled by digital temperature controller

2. Inverter controls main motor driving speed and film taking up motor running speed

3. Electronics used are all Chinese top brand

4. Current meters and Voltage meters show the working state of motors

5. Small fan installed to avoid high temperature caused by long time running

Main Technical Parameters:

Model	3SJ-G1000	3SJ-G1200	3SJ-G1500
Diameter of screw	55×2 -60×1	60×2 -65×1	65×2 -70×1
Length-diameter ratio	28:1	28:1	28:1
Speed of screw	15-150r/min	15-150r/min	15-150r/min
Power of main motor	15Kw×2 18.5Kw×1	18.5Kw×2 22Kw×1	22Kw×2 30Kw×1
Output of a single extruder	50kg/h	80kg/h	100kg/h
Specification of die orifice	150-200	200 -250	250 -300
Film thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Max. lay-flat width of film	1000mm	1200mm	1500mm
Total capacity of electric appliance	76Kw	88Kw	102Kw
Overall dimensions:	6600×4100×5000mm	6800×4300×6000mm	7000×4800×7500mm
Machine weight	4T	5T	6T

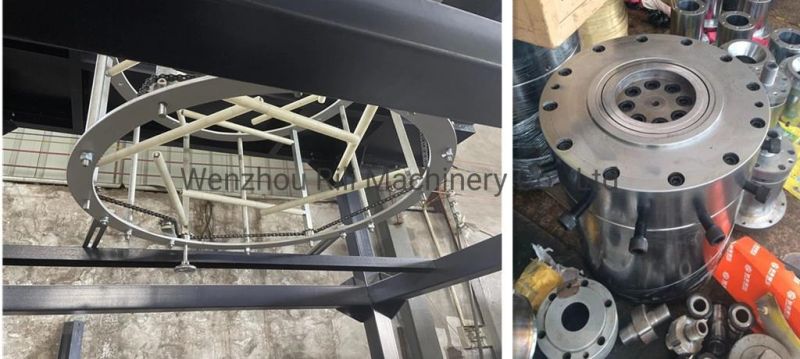

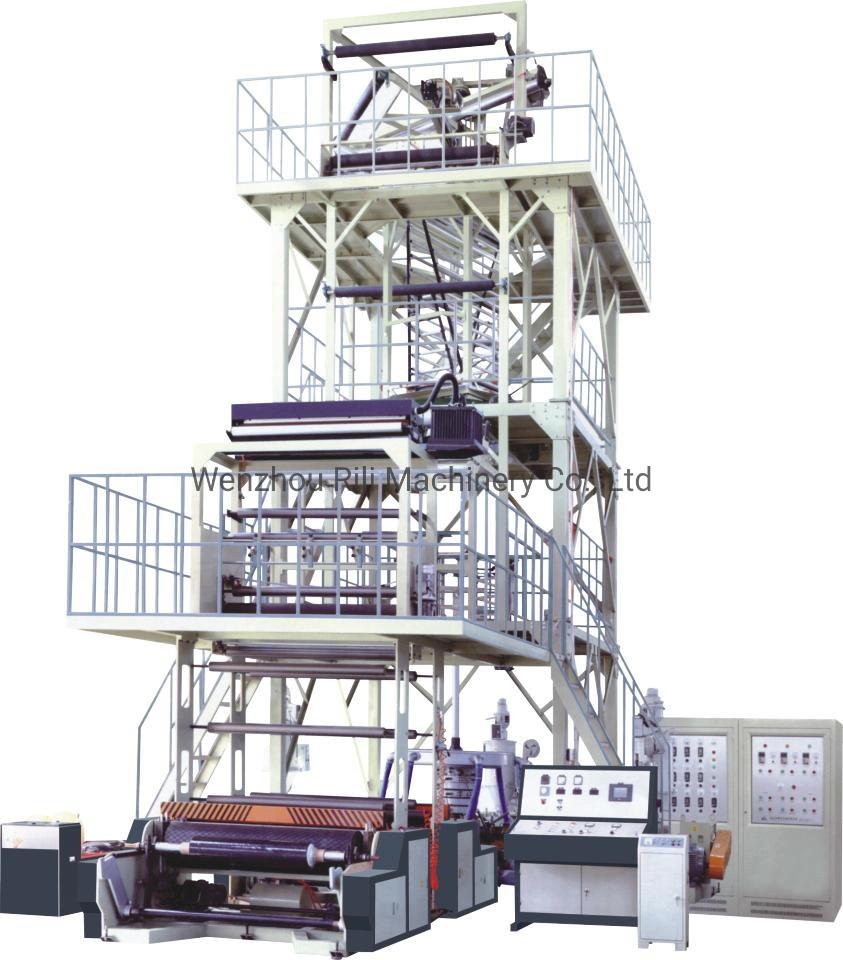

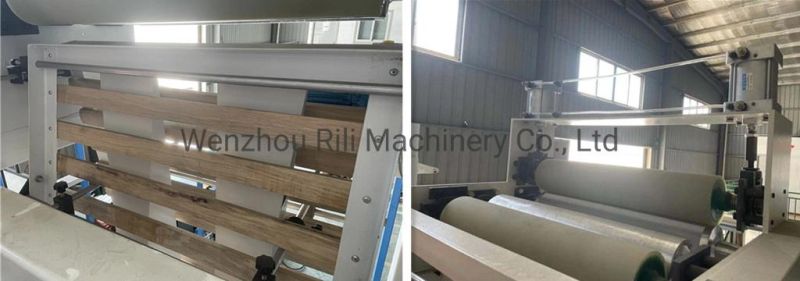

Machine Pictures:




Machine Loading
