3D Printer Filament Making Machine PLA ABS Filament Extrusion Machine

Zhangjiagang Plastar Machinery Co., Ltd.
  • After-sales Service：Engineers Available to Overseas
  • Warranty：1 Year
  • Type：Filament Extruder
  • Plastic Processed：PETG PC PLA ABS Peek Nylon
  • Product Type：Granulating Extruder
  • Feeding Mode：One Feed

Base Info

  • Model NO.：PL
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw
  • Engagement System：Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Screw Design：Single Screw
  • Screw Diameter：25mm, 35mm, 45mm
  • Color：Customized
  • Cooling Type：Water Cooling
  • Raw Material：Pet, Peek, PLA, PC, ABS, Nylon
  • Final Product：Filament
  • Usage：3D Printer Filament Extrusion
  • Filament Dia.：1.75-3mm
  • Tolerance Control：0.02-0.03mm
  • One Spool Weight：About 1kg
  • Whole Line Length：12.5meters
  • Whole Line Weight：2t
  • Installed Power：Around 20kw
  • Main Motor Power：5.5kw
  • Capacity：20-30kg,H
  • Transport Package：Standard Pacakge
  • Specification：It depends
  • Trademark：Plastar
  • Origin：China
  • HS Code：84772090
  • Production Capacity：1000sets,Year

Description

ModelPowerDiameterCapacityToleranceMaterialPL-252.2 KW1.75mm-3mm

3-5Kg/h

+0.02mmPLA ABS HIPS PA PET Nylon PPPL-304 KW1.75mm-3mm10-15Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PPPL-457.5 KW1.75mm-3mm20-25Kg/h+0.02mmPLA ABS HIPS PA PET Nylon PP



This Filament Extruder Machine is composed by following parts:

No.ItemQty1Hopper Dryer1 Set2Single Screw Plastic Extruder1 Set3Die2 Sets4Hot & Cooling water cooling tank2 Sets5Horizontal storage rank1 Set6Backstop machine1 set7Haul-off machine1 set8Winding machine1 set

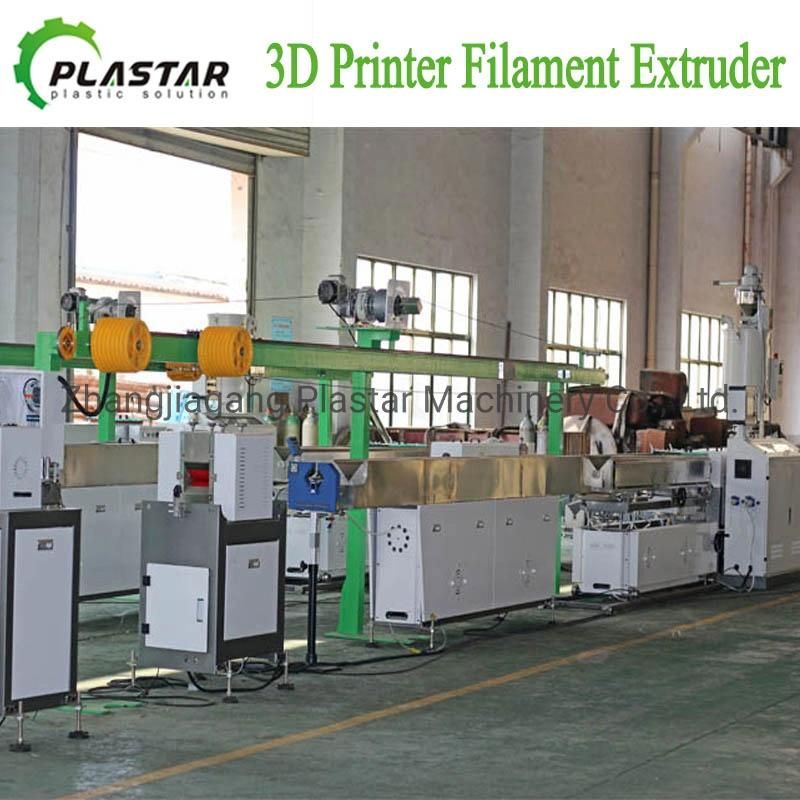

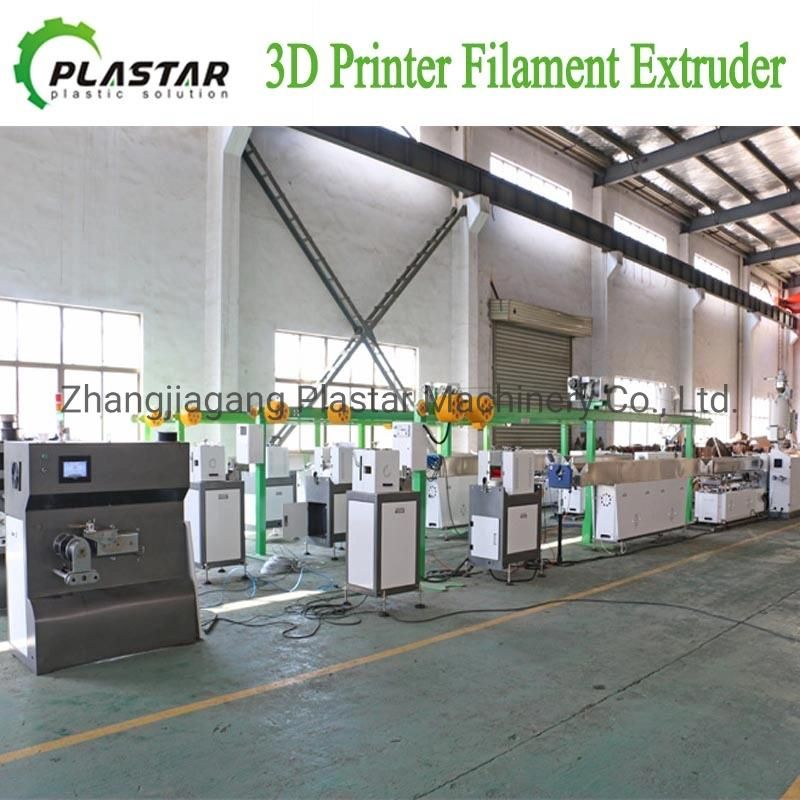

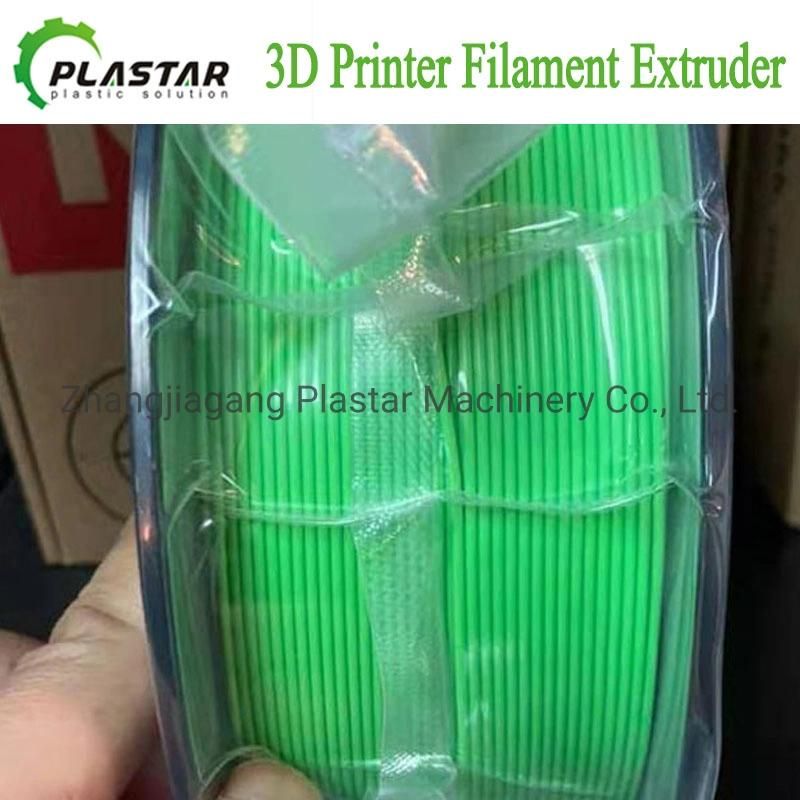

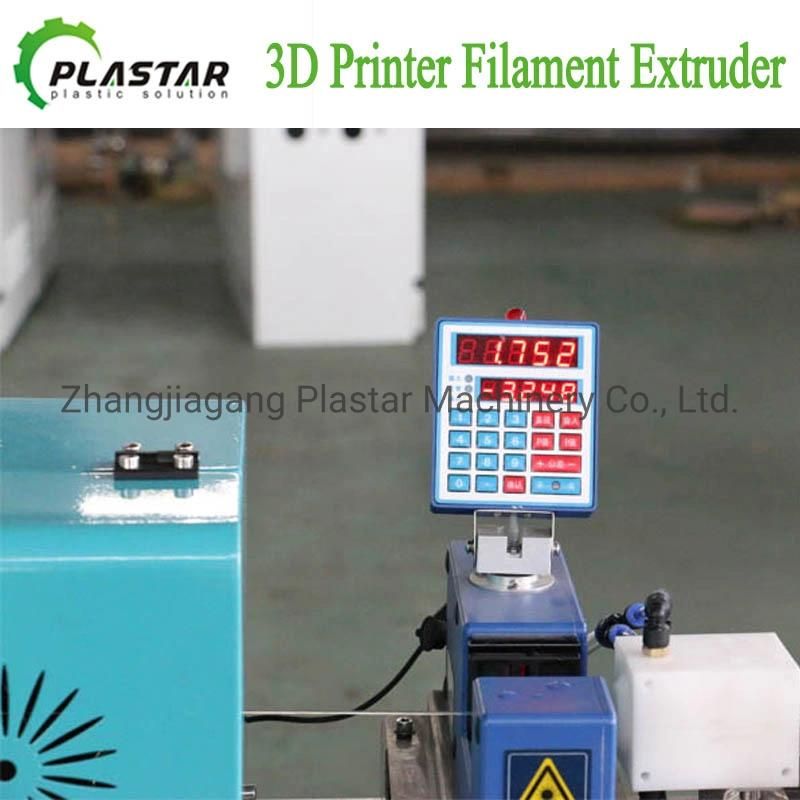

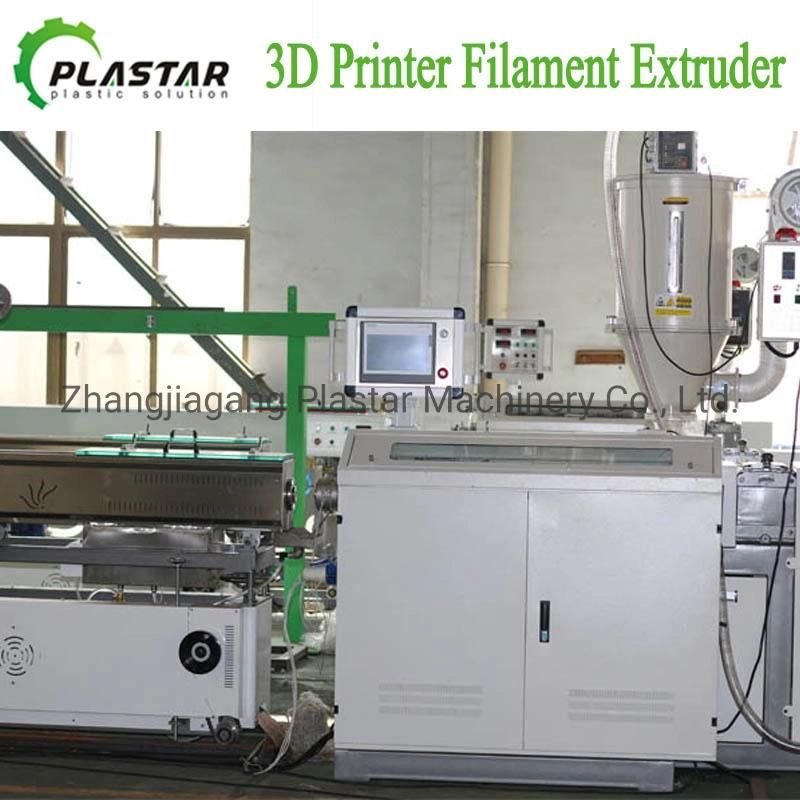

High Precision PLA ABS 3D Filament Extruder Machine pictures for reference:
3D Printer Filament Making Machine PLA ABS Filament Extrusion Machine3D Printer Filament Making Machine PLA ABS Filament Extrusion Machine3D Printer Filament Making Machine PLA ABS Filament Extrusion Machine3D Printer Filament Making Machine PLA ABS Filament Extrusion Machine3D Printer Filament Making Machine PLA ABS Filament Extrusion Machine3D Printer Filament Making Machine PLA ABS Filament Extrusion Machine3D Printer Filament Making Machine PLA ABS Filament Extrusion Machine3D Printer Filament Making Machine PLA ABS Filament Extrusion MachineCompany introduction:

Zhangjiagang Plastar Machinery Co.,ltd. is the professional manufacturer for kinds of plastic machines, such as 3D printer filament extruder, plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.

The target of our company is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.

Excellent quality and professional service is the promise made by PLASTAR Machinery  to new and old friends. We are looking forward to establishing the good cooperation relationship with you on the basis of mutual benefits.



If you have further inquiry,please contact with us at any time
