• Model NO.：JY-450ST
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Wooden Box
• Specification：1.7*1.2*3m
• Trademark：JIEYANG
• Origin：China
• HS Code：8477209000
• Production Capacity：200 Sets Per Month

MODELJY-450STScrew Diameter30mm32mm35mmSafe Shot Weight(PS)2.6OZ3.0OZ3.75OZOpening Stroke200mmClamping Force(T)45TonsPlaten Size580×430mmDistance  Between Tie Bere  410×250mm Min Mold Height(KW/HP) 220/70mm  Pum Motor Power 5.5/7.5/HP Machine Dimensions(LxWxH) 1.7×1.2×3.0m  Number of Temperature Control3PCS Pump Output37.2L/min Oil Resservoir Capacity130LiterBarrel Heating Power2.8KW Cooling Water Consumption600-800L/hr Total Power9KW Machine Weight1.8Tons Shipping Weight1.9Tons

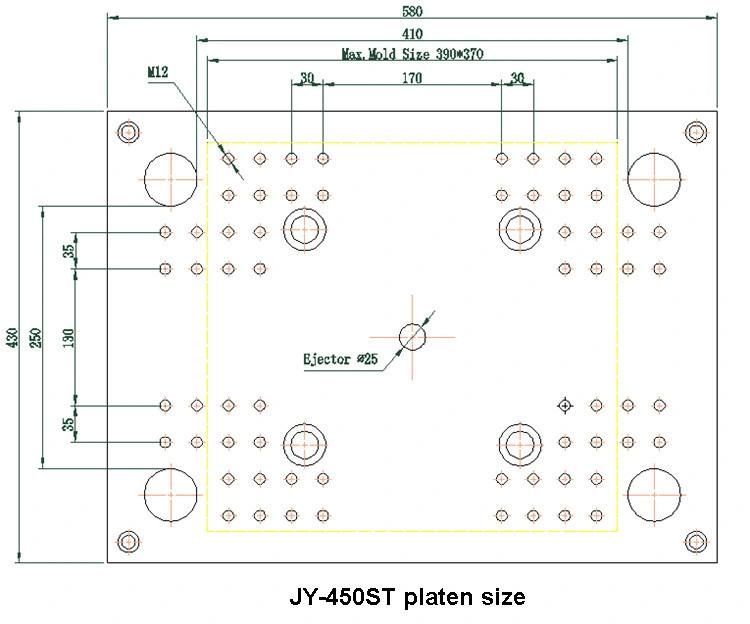

Mold Platen Details:

Functions

1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.

Machine Application

     vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.






Packaging&Shipping





Our Services

Pre-Sales Service

If you are not sure which machine is your best choice within budget, please provide the samples picture, size, material and production capacity to us. We will offer you the best solutions and machines.

Technical consulting

Any question about the machine selection, operation, production and so on, please feel free to contact us and we will provide you reasonable budget and suggestion.

After-sale Service

Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.

Please contact us,we will provide a professional production plan for you.
