Complete Pet Bottle Production Line

Jiangsu Faygo Union Machinery Co., Ltd.
  • Type：Stretch Blow Molding Machine
  • Raw Material：PET
  • Making Method of Parison：Injection Blowing
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, QS, UL, GMP

Base Info

  • Model NO.：FG4
  • Name：Complete Pet Bottle Production Line
  • Capacity：6800-7200bph
  • Bottle Size：Above 280ml to 2liter
  • Bottle Material：Pet
  • Electric Consumption：Around 22kw
  • Cavity：Complete Pet Bottle Production Line
  • Blowing Method：Pet Bottle Making
  • Transport Package：Covered by PE Film
  • Specification：FG-B4 complete pet bottle production line
  • Trademark：FAYGO PLAST complete pet bottle production line
  • Origin：China
  • HS Code：847000
  • Production Capacity：6000-7200bph Complete Pet Bottle Production Line

Description


ITEMS
NAME
MODEL
QTY
1

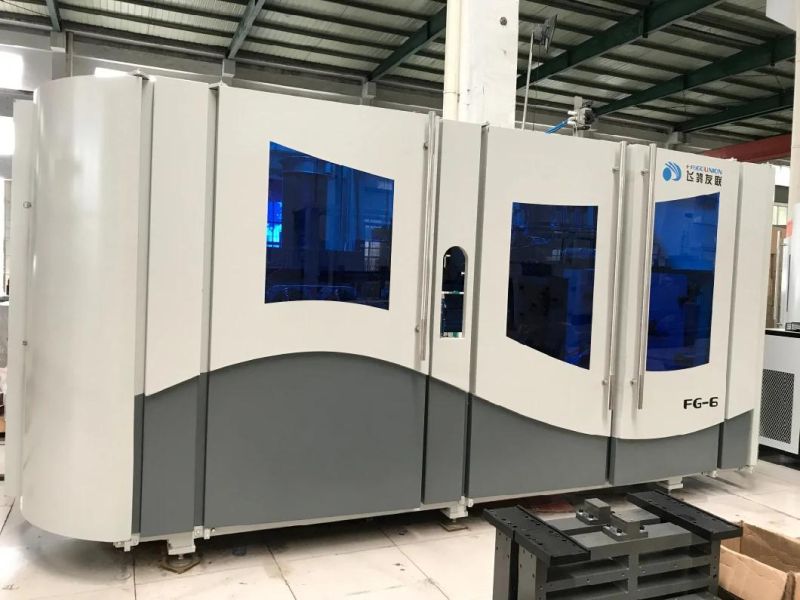

Automatic Bottle Blowing Machine
FGB4(6000-7200)
1set
2
Touch Screen
Include electric parts& touch screen
1set
3
Preform Elevator
Including electrical parts& touch screen
1set
4
Preform Sorter
Sorted
1set
5
Air Compressor
WH-2.0/30-SB
3sets
6
Air Dryer
6.0m3/min 30Kg
1set
7
3 Stage Air Filter
6.0m3/min 30Kg
3sets
8
Oil separator
sorted
1set
9
Air Tank
2 m3
1set
10
Mold Chiller
6HP
1set
11
Oven Chiller
3HP
1set
12
500ml Blowing Mold
500ml
1set
13
200ml Blowing Mold
200ml
1set
14
1000ml Blowing Mold
1000ml
1setComplete Pet Bottle Production Line
