• Model NO.：SJ
• Model No.：Sj-50,Mc600
• Machine Weight：2500kg
• Screw Diameter (mm)：65
• Film Width(mm)：600-1200
• Film Thickness(mm)：0.006-0.10
• Max. Extrusion Output (Kg/H)：90
• Die Size(mm)：100,200
• Main Motor：Siemens Brand
• Inverter：LG Brand
• Temperature Controller：Omron Brand
• Guarantee：One Year
• Delivery Time：20 Days
• Transport Package：Wooden Plate
• Specification：600mm
• Trademark：KWJX
• Origin：Wenzhou, China
• HS Code：847730900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ Model No. Sj-50/Mc600 Machine Weight 2500kg Screw Diameter (mm) 65 Film Width(mm) 600-1200 Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 90 Die Size(mm) 100/200 Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Guarantee One Year Delivery Time 20 Days Transport Package Wooden Plate Specification 600mm Trademark KWJX Origin Wenzhou, China HS Code 847730900 Production Capacity 20 Sets/Month

Product Description

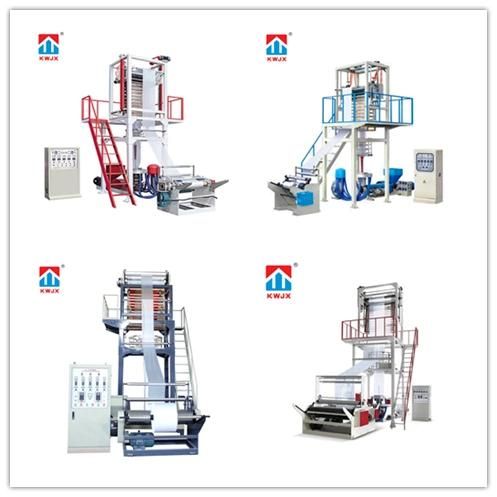

HDPE/LDPE/LLDPE film blowing machine series SJ-50, SJ-55,SJ-60,SJ-65



Product detail:
It is used for blowing the plastic laminated film of low density polyethylene(LDPE), high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.



Model	SJ-50/HMB600	SJ-55/HMB800	SJ-60/HMB1000	SJ-65/HMB1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30:1	30:1	30:1	30:1
Film Width(mm)	200-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.006-0.10	0.006-0.10	0.006-0.10	0.006-0.10
Max.Extrusion Output (kg/h)	60	70	80	90
Die Size(mm)	Φ60/100	Φ80/150	Φ100/200	Φ120/250
Blower	3kw	3kw	3.7kw	4kw
Cylinder Cooling (Kw)	0.13*2	0.13*2	0.13*3	0.13*3
Driving Motor(kw)	15kw	18.5kw	22kw	30kw
Total power(kw)	28	36	40	45
Cover Dimension L*W*H(m)	5.0*2.1*4.0	5.0*2.3*4.2	5.0*2.3*4.5	5.0*2.3*5
Weight of Machine(kg)	2500	2800	3000	3200

Detailed Images
Machine PartsName: Gearbox
Original:Hangzhou
it is hard surface gearbox. with Oil Lubrication system and water cooling system



Main Features

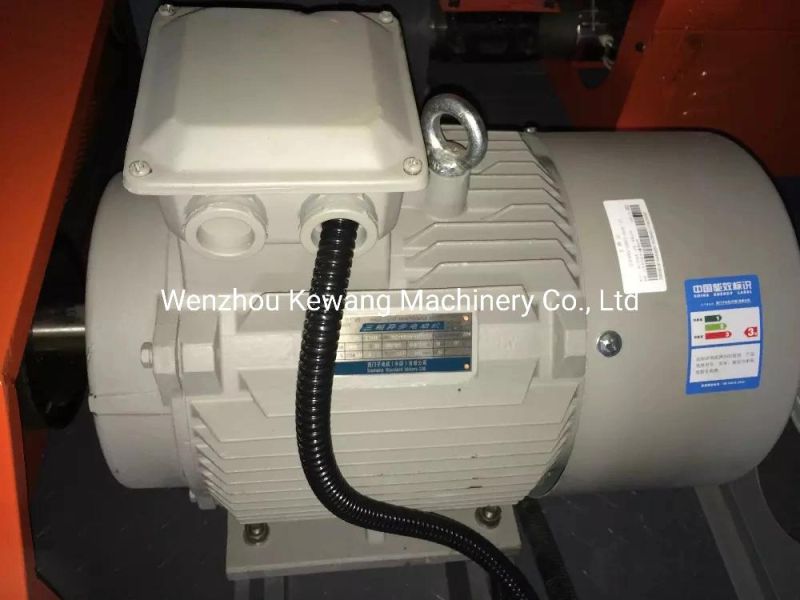

Name: Main driving motor

Brand: Siemens
Original: Germany
Reaching CE standard, longer life, higher quality

Machine Parts

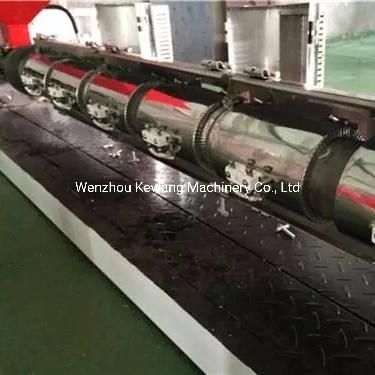

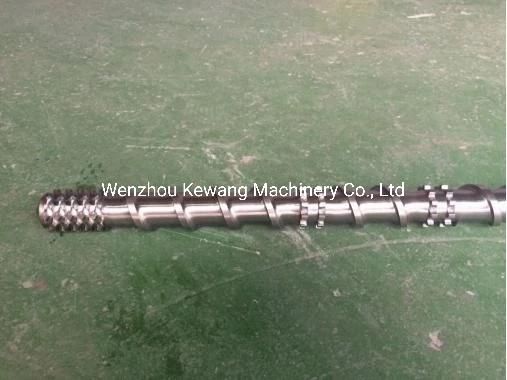

Name: Taiwan quality screw
the scraw contains Tungsten carbide so that it is very hard , live longer..

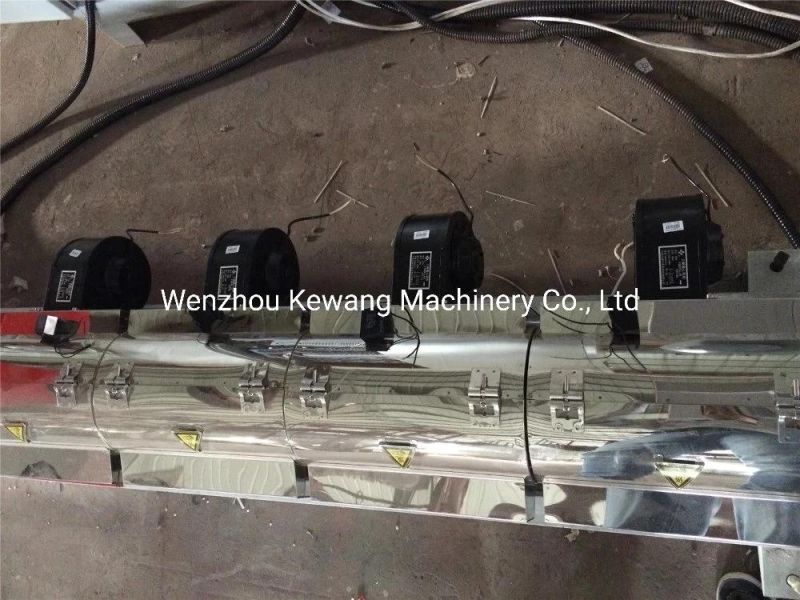

Main FeatureName:Stainless Cover and High Speed Blower.

Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift

Machine Parts

Name: High Speed Die Head
Original: China
It is 45 Steel Materials.
it is processed by Taiwan Machine Center, Taiwan design

Machine Parts

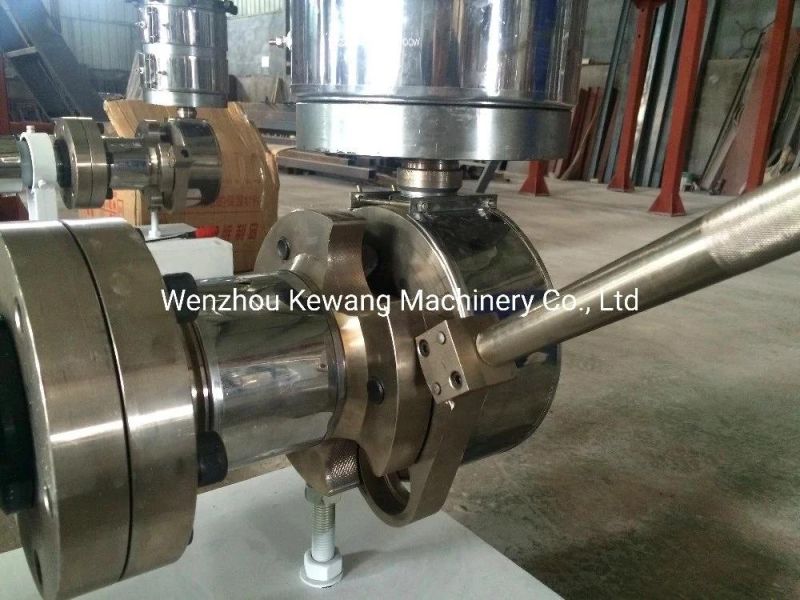

Name: Fast Screen Changer
Original: China
It is 45 Steel Materials, very stronger, non leakage

Machine Parts

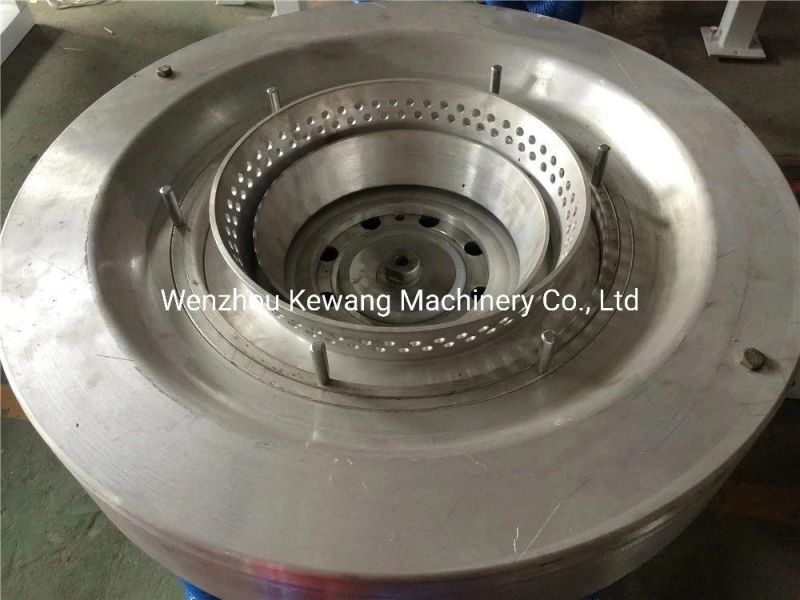

Name: Double vent air ring
Original: China
It is aluminum double vent air ring, which cool the film faster. And it is controlled by LG inverter

Machine Parts

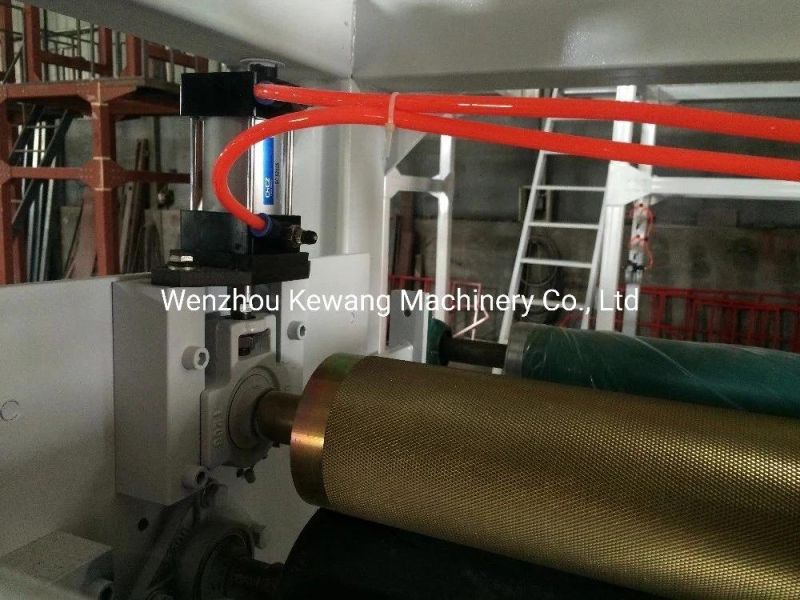

Name: Embossing Roller
Original: China
it is controlled by air cyclinde


Machine Parts

Name: Traction Driving Motor
Original: China
The turbine Motor is controlled by inverter



Machine Parts

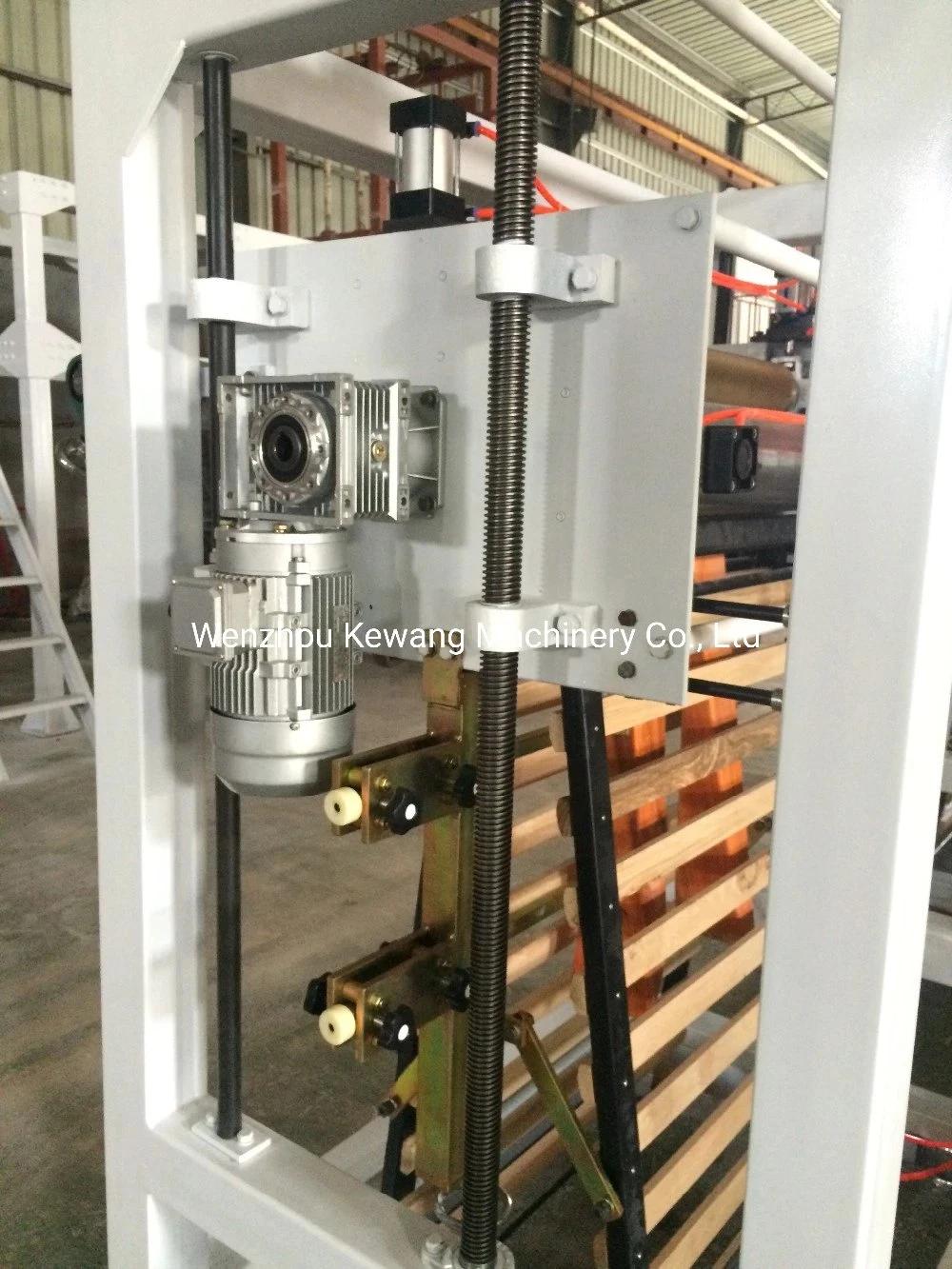

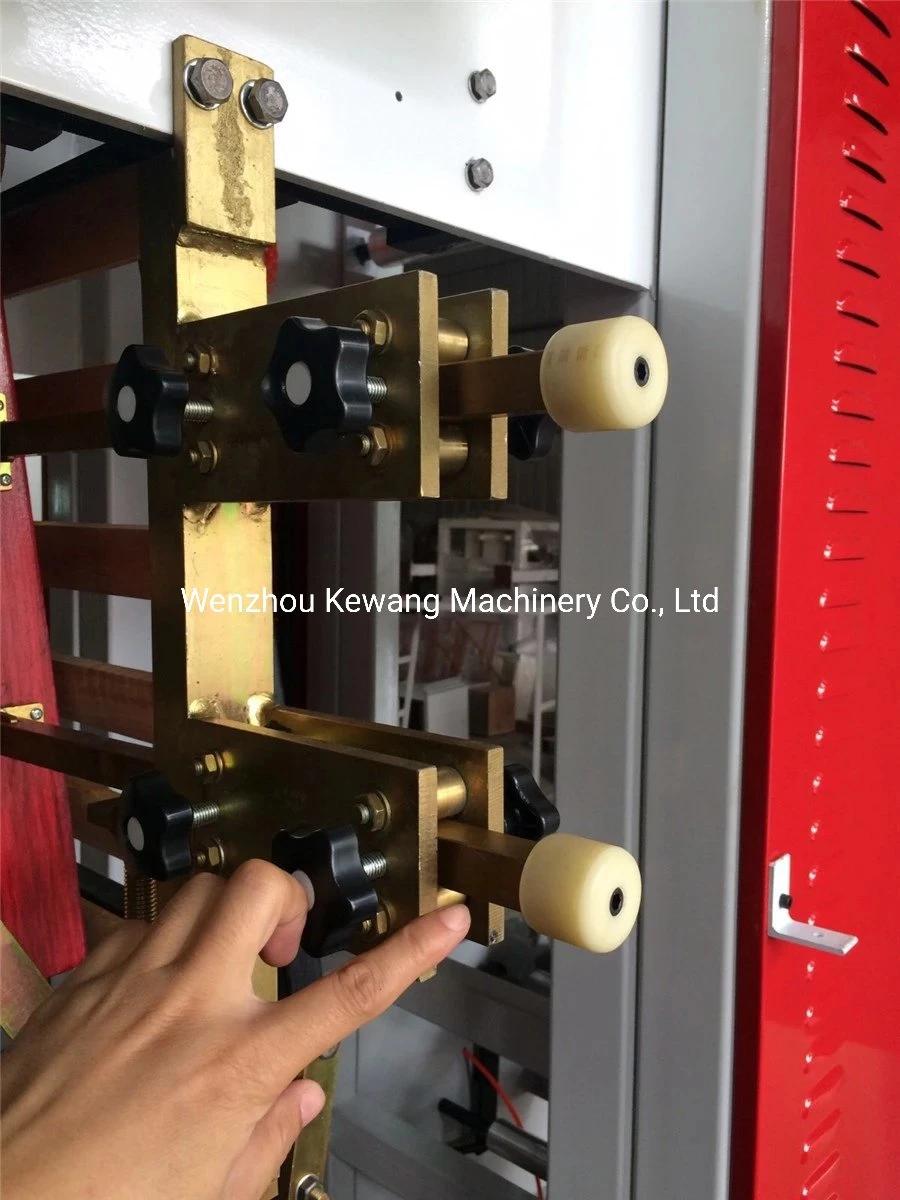

Name: Gusset Parts
Original: China
The gusset parts is copied from Taiwan



Machine Parts

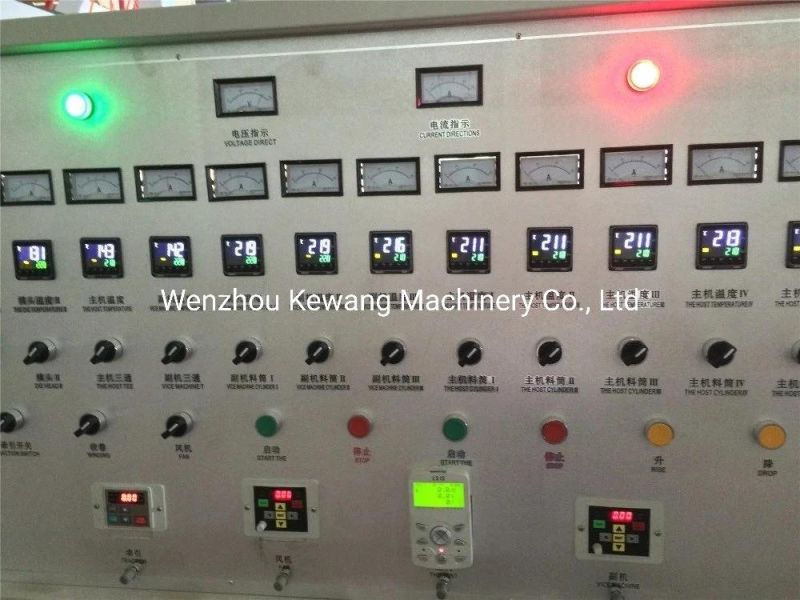

Name: Electric Box
Original: Chinese
Temperature controller is Omron Brand
Inverter is LG brand
Switch is CHINT brand, best supplier of China
