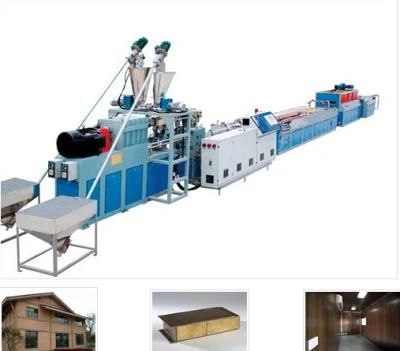

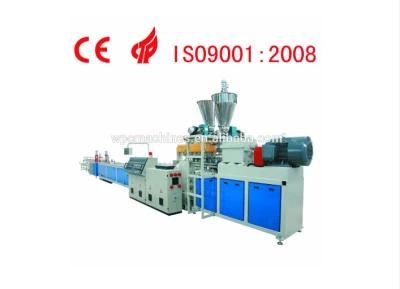

WPC (PE or PP) Cool-Drawn Pelletizing Line
SKY WIN Technology Co., Ltd.- Type：Granulator
- Plastic Processed：WPC
- Product Type：Granulating Extruder
- Feeding Mode：One Feed
- Screw：Twin-Screw
- Exhaust：Exhaust
Base Info
Description
Product Description
I. Advantages:1. With big material bunk (suitable for volume of mixer) to put under the cool mixer, and then convey material onto
the hopper with spiral convyor.
2. With big-diameter signle-screw measureing feeder.
3. After years of experience on WPC pelletizer, we designed special twin-screw elements and combination to make
65% wood powder and PE/PP mixing and plastication in best condition.
4. Four natural vents designed to exhaust left water and volatile matter from wood powder, in order to make sure of
qualified finished produts.
5. To design dust-removal system.
6. Big L/D (40:1) can make barrel temperature heated not too high to avoid wood burnt, and to make more moisture
out.
7. Special structure of extruder head to crush even and reliable pellets.
II. Technical Parameters
| Equipment Type | Output(KG/H) | Total Power (KW) | L/D | Rotational Speed(R/Min) | Outline Dimension (MM) | Weight (KG) |
| SWMSZ-1L | 60-100 | 68 | 36-40 | 500 | 15000*2000*2800 | 4800 |
| SWMSZ-2L | 80-200 | 110 | 36-40 | 500 | 18000*2200*3200 | 5600 |
| SWMSZ-3L | 200-400 | 150 | 36-40 | 500 | 20000*2300*3800 | 7800 |
