• Model NO.：AF-120
• Engagement System：Full Intermeshing
• Screw Channel Structure：Non Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Glue Stick Size：Customized
• Mixing Vessel：Two Pieces
• Vessel Volume：100L, 200L, 300L
• Af-80 Machine Output：50-80kg,Hr
• Af-100machine Output：80-120kg,Hr
• Af-120 Machine Output：120-160kg,Hr
• Transport Package：Sea Worth Packing with Stetch Film or Wooden Case
• Specification：ISO, CE,
• Trademark：ANFU
• Origin：Dongguan, China
• HS Code：8477209000
• Production Capacity：60-160kg,Hr

Basic Info.

Model NO. AF-120 Engagement System Full Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Glue Stick Size Customized Mixing Vessel Two Pieces Vessel Volume 100L, 200L, 300L Af-80 Machine Output 50-80kg/Hr Af-100machine Output 80-120kg/Hr Af-120 Machine Output 120-160kg/Hr Transport Package Sea Worth Packing with Stetch Film or Wooden Case Specification ISO, CE, Trademark ANFU Origin Dongguan, China HS Code 8477209000 Production Capacity 60-160kg/Hr

Product Description

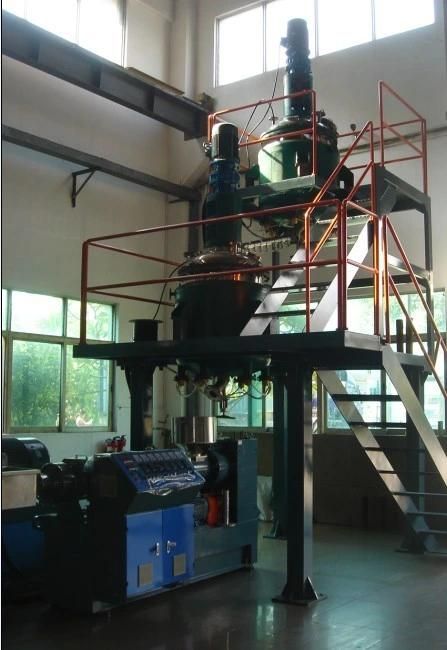

EVA Hot Melt Adhesive Making Machine

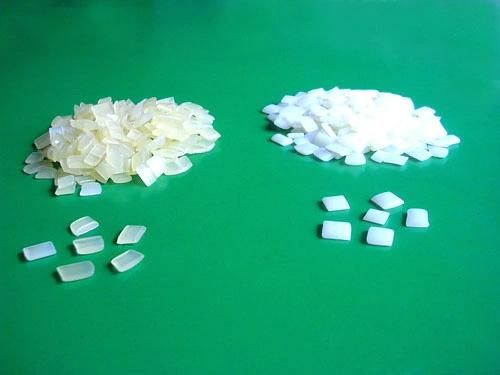

1. Uses: EVA Hot Melt Adhesive Making Machine applies to produce varieties of hot melt granules, hot melt stick, hot melt adhesive film, using extrusion method, without the reactor, extruder screw is specially designed to achieve a plasticizing, mixing effects, automatic cutting, frequency adjustment speed. Good energy-saving and high degree automation. The products are bright and uniform.

2. Features: Entire device structure is well designed. Extruding uniformly. The cooling effect is good and surface is smooth. It is also equipped with Meters and automatic cutting device to ensure the length of product be adjustable. No special conditions required, as long as electricity and water supply can be guaranteed. In order to reduce costs, can also use the corresponding recycled materials. Non-pollution, waste recyclable.
3. Production process Ingredients --Mixing --Plasticization and Extrusion--Mould--Cooling -- Traction -- Measurement-- Auto Cutting --Finished

YAOAN PLASTIC MACHINE Co., Ltd. is a professional plastic machine manufacturer since 1980s. We have an excellent track record with our customers and have sold to 28 regions throughout the world. Our mission is to create high-end.

1. The line can produce various type of hot melt adhesive sticks
2. Hot melt adhesive sticks applies to handicraft, electrical appliances, clothing, toys and so on
3. Need extruder, not need reactor, it not only saves equipment, but also improves the product quality
4. It can continuous production, overcomes the disadvantage of mixing uneven and poor transparency of reactor,
5. Save energy
6. One-step of reaction and extrusion to produce
7. The screw of the main machine by special design
8. Good mixed, smooth surface, good diaphaneity, uniform specifications
9. It is the most advanced technology of producing hot melt adhesive stick.

Model	L/D	motor power	two vessel volume	output capacity
AF-80	15:1	11KW	100L*2	60-80kg/hr
AF-100	15:1		200L*2	80-120kg/hr
AF-120	15:1		300L*2	120-160kg/hr
