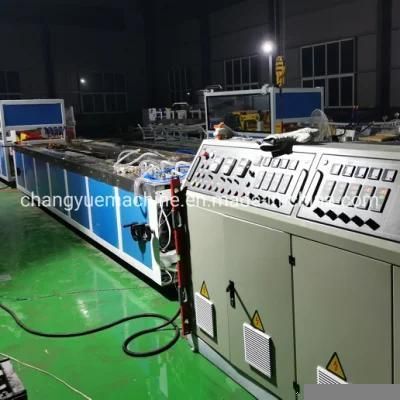

Plastic PE PP Board Floor Roofing Tile Extrusion Production Line

ZHEJIANG CHAMPION PLASTIC MACHINERY CO., LTD.
  • After-sales Service：Yes
  • Warranty：5
  • Type：Sheet Extruder
  • Plastic Processed：PE
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：Multiple Feed

Base Info

  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Transport Package：Wooden
  • Trademark：CHUNDI
  • Origin：China
  • Production Capacity：1000p,Y

Description

  Plastic PE|PP Board Floor|Roofing Tile|Extrusion Production LineOTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thickness range: 0.15-1.5mm
Net sheet width: 650-1550mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 500-700kg/h
Application: Thermoforming(cup, bowel, etc. ), food box, fruit/egg tray, cup, electric tray, stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 600mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 100kg/h-1200kg/h
Application: Thermoforming(cup, bowel, etc. ), food box, fruit/egg tray, cup, electric tray, stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-750kg/h
Application: Vacuum forming, thermoforming, refrigerators/ freezer' inner layer, drawers, doors' inner, water pans, water dispensers' inner liner&door, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 2-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-750kg/h
Application: Vacuum forming, bathtub, shower room, wash basin, steam room, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 2-8mm, 4-40mm
Net sheet width: 1220mm-1300mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 250kg/h-450kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet width: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 350-600kg/h
Application: the breeding of agriculture and the vegetable greenhouse, size of workhouse, market and greenhouse roof, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm-40mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:250-450kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additives
Thickness range: 0.3-2mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam board extrusion line
Board width: 1220mm, thickness: 1-10mm, 3-25mm
Board application: decoration board, advertising boards, exhibition boards
Extruder model: SJ-80/156 conical twin screw extruder
Max capacity: 350kg/h
Certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer structure: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior, and exterior decoration parts, etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA, and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavilions, hotels, family building, etc.
