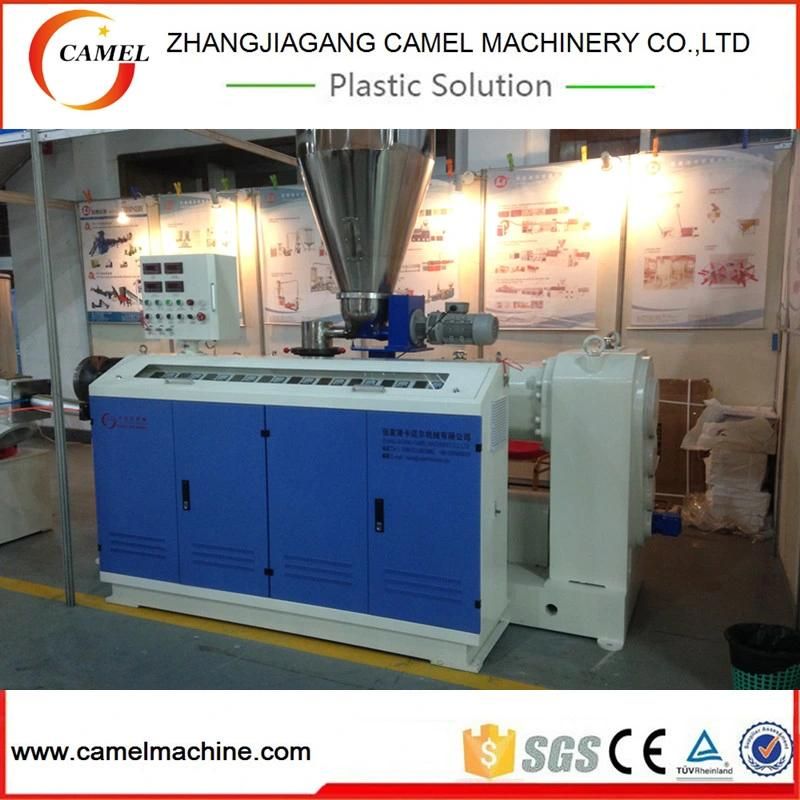

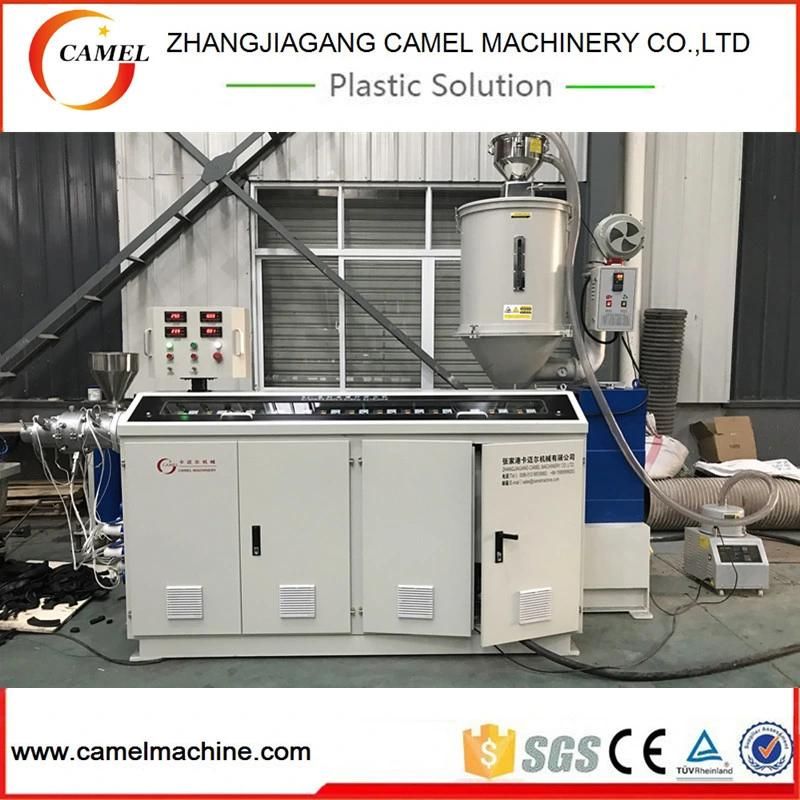

Plastic Conical Single Double Screw Twin Screw Extruder/Extrusion Machine
Zhangjiagang Camel Machinery Co., Ltd.- Type:Pipe Sheet Profile Pellets
- Plastic Processed:All The Plastic
- Product Type:Pipe Sheet Profile Pellets
- Feeding Mode:One Feed
- Assembly Structure:Integral Type Extruder
- Screw:Twin-Screw
Base Info
- Model NO.:SJSZ
- Engagement System:Full Intermeshing
- Screw Channel Structure:Deep Screw
- Exhaust:Exhaust
- Automation:Automatic
- Computerized:Computerized
- Name:Plastic Conical Single Double Screw Twin Screw Ext
- Inverter:ABB Brand
- Motor:Siemens Beide
- Raw Material:All The Plastic
- Contactor:Siemens Contactor
- Warranty:1 Year
- Color:Customised
- Temperature Controller:Rkc
- Usage:Pipe Sheet Profile Pellets
- Voltage:380V 50Hz 3phase(Customized)
- Transport Package:Standard Shpping Package
- Specification:3.5mx1...5mx2m
- Trademark:CAMEL
- Origin:China(Mainland)
- HS Code:84772090
- Production Capacity:800 PCS,Year
Description
Basic Info.
Model NO. SJSZ Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Name Plastic Conical Single Double Screw Twin Screw Ext Inverter ABB Brand Motor Siemens Beide Raw Material All The Plastic Contactor Siemens Contactor Warranty 1 Year Color Customised Temperature Controller Rkc Usage Pipe Sheet Profile Pellets Voltage 380V 50Hz 3phase(Customized) Transport Package Standard Shpping Package Specification 3.5mx1...5mx2m Trademark CAMEL Origin China(Mainland) HS Code 84772090 Production Capacity 800 PCS/YearProduct Description
Extruder machineTechnical data
Model | SJSZ51/105 | SJSZ55/100 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
Screw diameter (mm) | 51/105 | 55/100 | 65/132 | 80/156 | 92/188 |
Quantity of screw | 2 | 2 | 2 | 2 | 2 |
Max. Rotation speed of screw (r/min) | 40 | 38 | 38 | 37 | 36 |
Effective length of screw (mm) | 1200 | 1200 | 1440 | 1800 | 2500 |
Main motor power (kw) | 18.5 | 22 | 37 | 55/75 | 90/110 |
Productuion capacity (kg/h) | 100 | 150 | 250 | 400 | 750 |
Center height (mm) | 1000 | 1000 | 1000 | 1100 | 1200 |
Dimensions (L*W*H)mm | 3360*1290 *2127 | 3620*1050 *2157 | 3715*1520 *2450 | 4750*1550 *2460 | 6725*1550 *2814 |

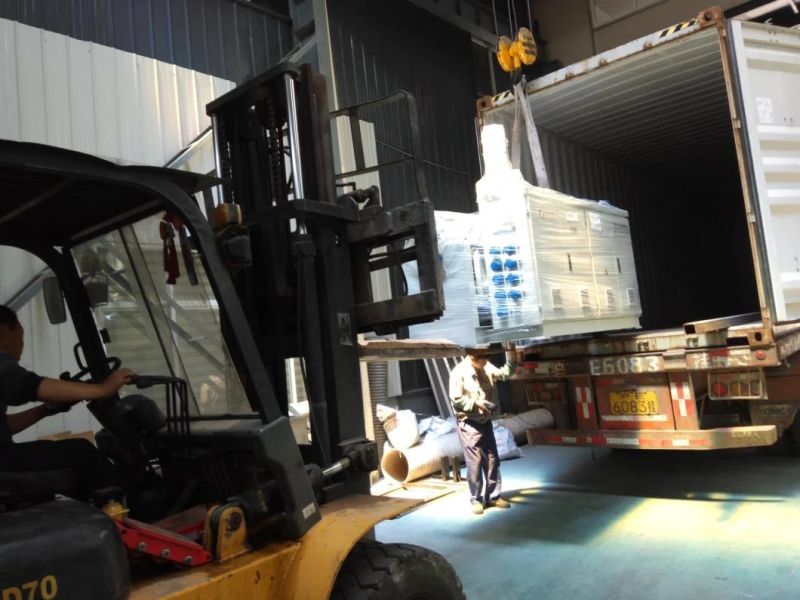

Packaging&Shipping
Contact us
