• Model NO.：SJ120
• Customized：Customized
• Condition：New
• Main Electricity Parts：ABB Rkc Omron Schneider etc.
• Extruder Model：Sj65,30, 90,30, 120,30, 150,30
• Brand Name：Leader
• Screw：Single Screw Extruder
• Exported：Global Market
• Guaranteed Time：12 Months
• HS Code：8477209000, 8477209000
• Transport Package：Wooden Case or Other Moistureproof Packages
• Specification：CE ISO9001-2008, GOST, SGS
• Trademark：Leader Machinery
• Origin：Qingdao, Shandong, China
• Production Capacity：10 Set,Month



1. SJ-120-30 single screw extruder                                1 set 2. SJ-120 Auto changer                                                     1 set 3. XYMY-1500 PP sheet molds (2-5mm, 6-8mm)      1 set T die, 2 sets core die 4. XYMY-1500 Vacuum cooling calibration                    2 sets 5. SJ-1500 12-roller haul-off machine                                              1 set 6. SJ-1500 Hot air cycling system                                    1 set 7. SJ-1500 Directional cooling system                            1 set 8. SJ-1500 6-roller haul-off machine                                1 set 9. SJ-1500 Cutting Machine                                              1 set 10. SJ-1500 Board system                                                  1 set 11. HMC - Ι control system                                                    1 set Technical Parameters SJ-120-30 Single screw extruder 1.1 Screw diameter: 120mm, L/D: 30: 1 1.2 Output: 450kg/h 1.3 Z4-132KW DC motor, EUROTHERM converter 1.4 Delivery system 1.4.1. With high torque force outputreducing gear system 1.4.1.1Basic structure: Vertical installation 1.4.1.2 With outside cycling cooling system 1.4.1.3 High-performance thrust bearing, high torque force driving 1.4.1.4 Gear: special alloy making hard gear, quenching treatment 1.4.1.5 Gear Box: Jiangsu GUOMAO, GUOTAI 280 type   1.4.1.6 Gear ratio: 12.5: 1   1.4.1.7 Bearing: maximum thrust: 50Mpa, high quality bearings, imported 1.4.2 Through elastic clutch connected with motor to improve the deliver efficiency 1.4.3 Driving stage: two stage 1.5 Extrusion system (barrel, screw) slotted screw and barrel   1.5.1 L/D: 30: 1 1.5.2 Material: 38CrMoAlA, nitriding thickness: 0.5-0.7mm, hardness surface of screw  ≥ HV910, barrel ≥ HV940 1.5.3 Stainless steel cover, cast aluminium heater. Heating Power: 7.5kw*6, heating zone: 6 1.5.4 Low noise mini-fan, power: 180w*6 1.6 Charging system   1.6.1Slotting type forced charging system   1.6.2 With strong cooling type charging sleeve 1.7 Pressure control system   1.7.1 Melt pressure indicator adopts Hunan Wuyue   1.7.2 With high temperature melt detector 1.8 Rack 1.8.1: From high strength steel sections welded together   1.8.2: Entirety design for the main cabinet 2.0SJ-120 Auto-filter 2.1 Way of changing net: Speediness without stopping 2.2 Hydraulic control system 2.3 Time of change net: ≤ 2 second/once 2.4 Hydraumatic station: main motor, oil pump, accumulator, change valve, air-vent valve and so on. 2.5 Material of the changing net system: good quality hot work steel 5CrNiMo, steel heat treatment, hard Cr of surface 2.6 Power of the oil pump: 4HP 2.7 Max pressure: 20Mpa 3.0 SJ-1500 PP hollow sheet mold (δ =6~8mm)   3.1 Pressure system with fine-tuning, 6 zones can be changed 3.2 Cast aluminium heating system 3.3 Width of mold: 1550mm 3.4 Heating power: 3.8kw*7 4.0 SJ-1500 Vacuum cooling calibration system   4.1 Calibration moldboard size: 1500*600mm, number of moldboard: 2 sets, entirety cast, inner water cycling   4.2 Vacuum pump power: 15kw 4.3 With pneumatic hold down gag 4.4With back and forth travel mechanism, gear location 4.5Chilled water consumption: 30m³ /h 4.6Chilled water temperature: 5° ~15° C 5.0 SJ-1500 12-roller haul-off machine   5.1 roller size: Φ 230× 1600mm 5.2 Roller number: 12pcs 5.3 Motor power: 7.5kw (OMRON convertor)                                                                              5.4 Speed: 6m/min 5.5 Material of roller: NBR 6.0 SJ-1500 hot air cycling system   6.1 Power: 15 kw   6.2 Quartz heating system 6.3 Cylinder: Ø 80*300 6.4Insulating layer: 100mm 7.0 SJ-1500 directional cooling system 7.1 Roller number: 5 7.2 Cooling power: 6*0.35kw 8.0   8.1 roller size: Φ 230× 1600mm   8.2 number of roller: 6   8.3 power: 3.7kw (OMRON convertor)   8.4 speed: 6m/min   8.5 With lengthways scrap edge system, fixed knife: 4,   2*2 9.0 SJ-1500 cutting machine 9.1 Cutting blade: twin station 9.2Cutting way: hawser cylinder, straight line lead rail, alloy blade 9.3 Lengthways PLC locking 9.4 With rotary encoder, automatic cut 10.0 SJ-1500   10.1 Transporter: belt delivery     10.11 Motor: 1.1kw     10.12 High quality gear box   11.0 HMC-IIcontrol system   12.1 System hardware: OMRON   12.2 Speed controller: EUROTHERM   12.3 Contactor: OMRON   12.4 Convertor: OMRON   12.5 Thermocontroller: ABB   12.6 Computer display screen size: 10.4' ' , OMRON   12.7 Electrical equipment cabinet structure: split structure   12.8 Filter ventilation system: dust seal installation

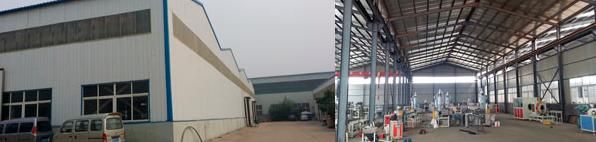

Company  profile:
Our company  manufacture and supply products cover plastic pipe/profile/sheet extruder and extrusion line for many years.
and we have exported many contries so far.

If any product meet your demand, please contact us for further information.
We're sure your any inquiry or requirement will get prompt attention.


FAQ:

Delivery, payment and services
1.delivery time: 50 days after receiving the deposit
2.payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3.Packing details: wooden pallets and cases with stretching films
4.Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
5.Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.
