• Model NO.：PE-655,1372
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Dimension：36m*1.8m*3m
• Pipe Range：63mm-250mm
• Transport Package：Standard Package
• Specification：ISO9001: 2008
• Trademark：HSD
• Origin：Qingdao
• HS Code：8477109000
• Production Capacity：40units,Year

Basic Info.

Model NO. PE-655/1372 Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Dimension 36m*1.8m*3m Pipe Range 63mm-250mm Transport Package Standard Package Specification ISO9001: 2008 Trademark HSD Origin Qingdao HS Code 8477109000 Production Capacity 40units/Year

Product Description

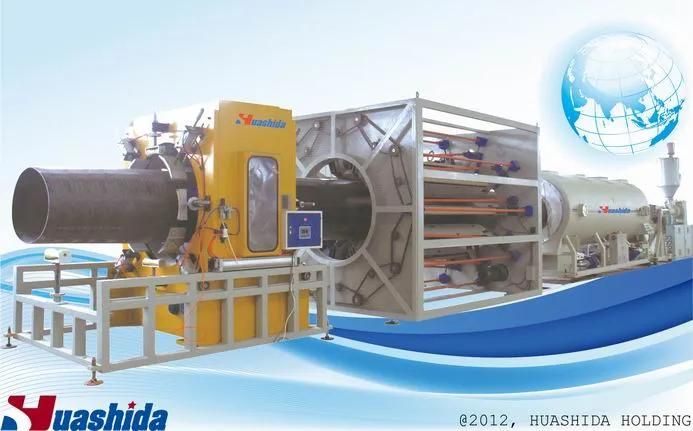

Plastic Extruder pre-insulating outer PE Pipe Extrusion Line
 Technical Parameters:Style:  PE-655/1372
Main extruder:   SJ-120/33
Installed power:   440kw
Capacity:  700-900kg/h
Length:   32m



Huashida's Vacuum calibrating device, due to the use of a large length of diameter screw and the new direct connection technology, extruder performance has been improved, gear box intelligent cooling system, saving water, reducing energy consumption by 30%.
The production line adopts sectional cooling and  forced feeding system to achieve a high pressure fast feed, forced compression resistance, the effect of reflux in plasticizing, mixing section length, achieve high efficient and stable extrusion, improve the efficiency of 20%.

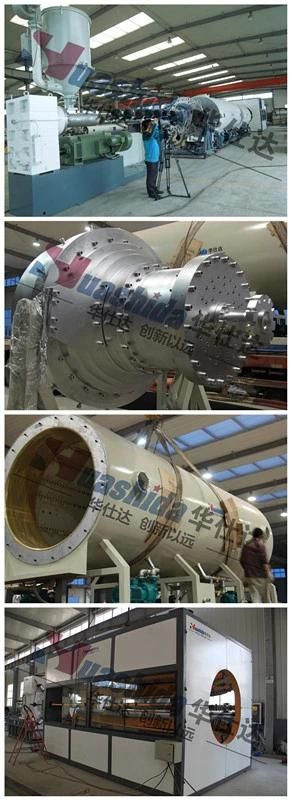

Thermal insulating jacket pipe production line mainly composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker.


One true case. It turned out that the Linyi customer did not have a stable and efficient equipment since winning the bid. Though the customers has been engaged in the production of thermal insulation pipe over the years, but the equipment adapted fully gas technique, low efficiency, unstable, nor safe, pipes were easy to be defective goods, leading to the production cost high, the economic benefit is also only so-so. This 60km project, and the time is urgent, must use the new and efficient and stable new equipment to produce the pre-insulation pipe, can not delay the construction period. So Linyi customers with Jining friends started to inspect the equipment, finally chose a Huashida Ф1680 mm vacuum calibrating insulation pipe extrusion line. Two months ago, when the equipment was delivered to Linyi customers, Huashida also sent experts to assemble and debug the equipment, and in two days, it produced high-quality insulating pipes. After this period of production, Linyi customers have found that the equipment of Huashida is stable and reliable and efficient. Such as dia 1680 mm pipes, Huashida equipment capacity is 1 pipe per hour, about a day can produce 24 pipes, unit yield about 24 tons/day, high output than normal the same type unit 6-8 tons/day production. Moreover, the operation has been very stable for two months, which completely satisfied the need of the engineering construction, so that the benefits of the project have improved and the customers are satisfied. So ask Huashida to also hurriedly produce a device, can not only meet the needs of the project task when all of a sudden more insulation pipes, can also be used to supply to the market, improving the company market share.

Guarantee and after service :
the guarantee period 12 months from the date of installation ,but no more than 14 months from the date of delivery.
During the warranty period we are responsible to solve any problem for buyers, provide spare parts which are breakdown. except delibrately damaged caused by the buyer.
Trading ShowClient Visiting

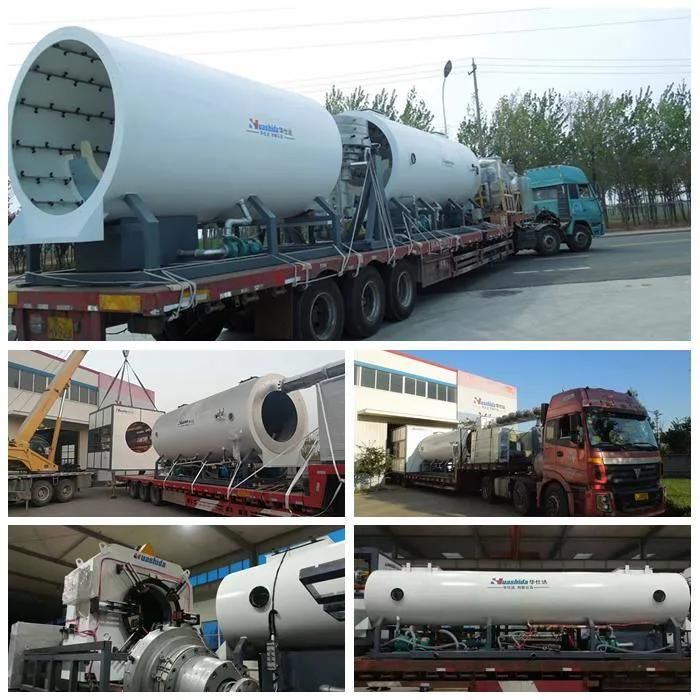

Our TeamPre-insulation pipe production liune Delivery
