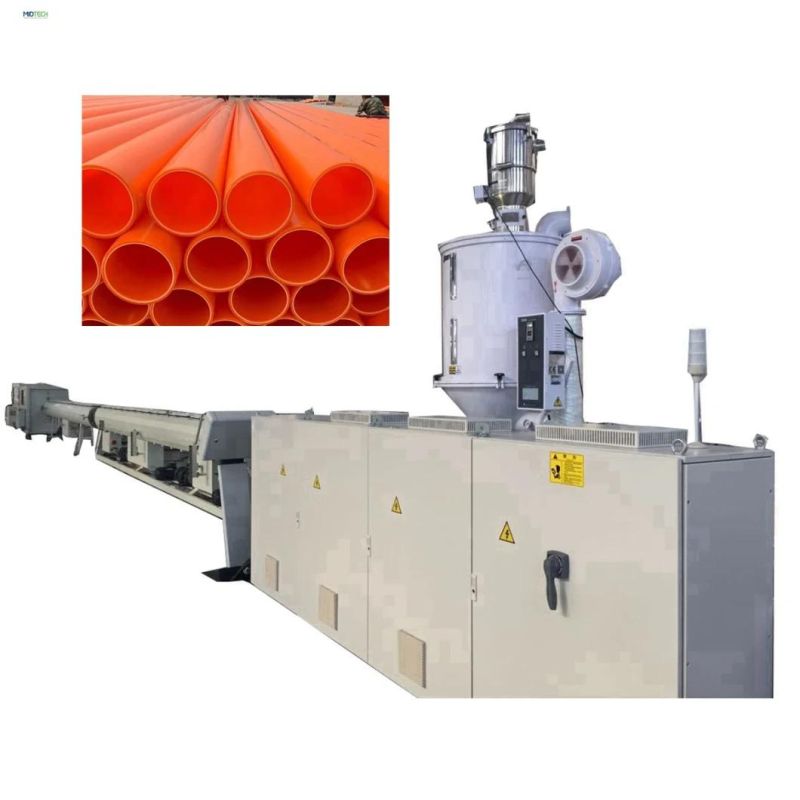

Mpp Cable Pipe Making Machine
QINGDAO TRUSTY PLASTIC MACHINERY CO., LTD.- Warranty：14 Months
- Product Type：PP Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：SJ75
- Customized：Customized
- Condition：New
- After-sales Service：Oversea Installation & Debugging
- Transport Package：Wooden Packing
- Specification：Customized
- Trademark：Trusty
- Origin：China
- HS Code：84772090
- Production Capacity：30 Sets,Month
Description

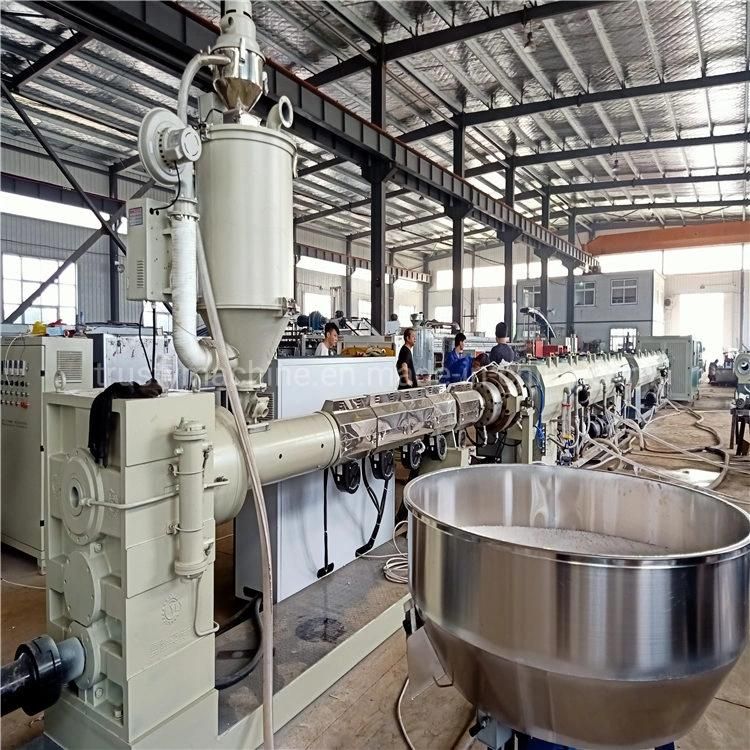

Name: SJ-75/33 Single Screw Extruder(with vacuum loader)1)Screw and barrel are all from Zhoushan,with good quality.
2)Motor:Siemens
3)Heating method:Electric aluminum cast heating
4)Electric contactor:Siemens
5)Frequency inverter:ABB
Name :MPP/PE pipe mold:1)Pipe diameter:50mm-250mm
2)Sizing unit:,50mm,63mm,75mm,90mm,110mm,125mm,160mm,185mm,200mm,225mm,250mm
3)Sizing unit material:Copper alloy steel

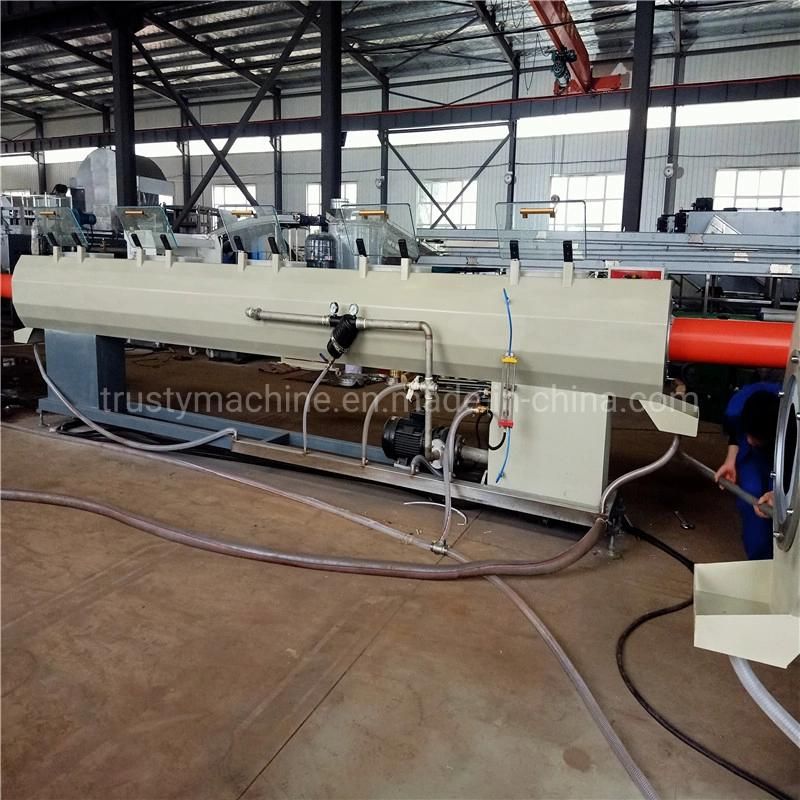

Name: Vacuum Calibration and Cooling Tank
1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel
3)with Vacuum pump and Water Pump

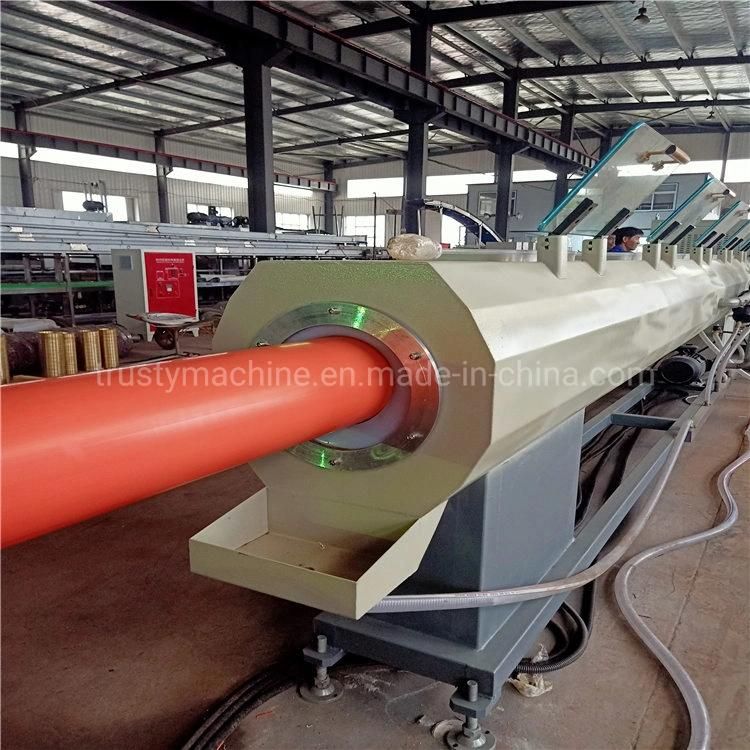

Name: Water Cooling Tank:1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel
3)With water pump

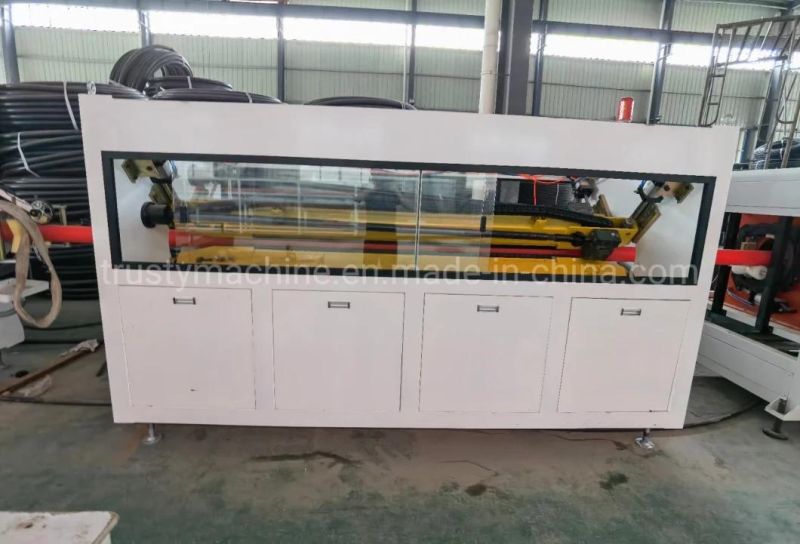

Name: Haul off Machine:1)Effective traction length:1.8meter
2)Motor power:4KW
3)Traction speed:1-4m/min
4)Speed control:by ABB inverter

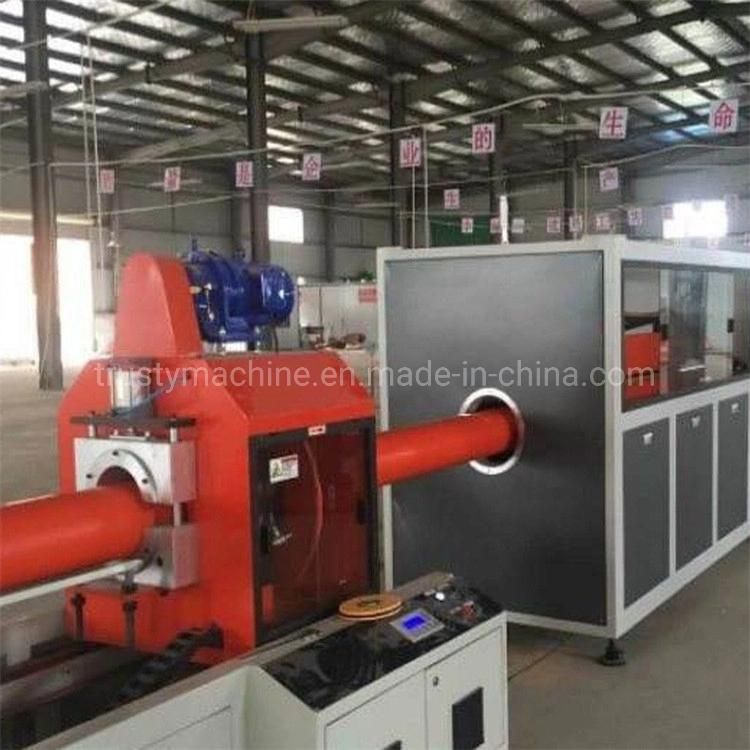

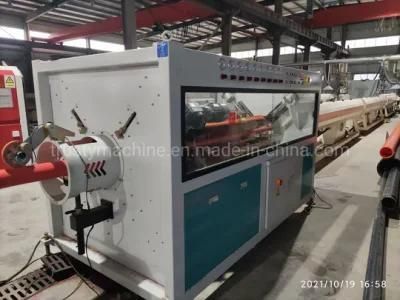

Name: Cutting Machine:
1)Cutting method:Non-dust cutting
2)Cutting knife raw material:alloy steel
3)Cutting range:50mm-250mm
Scope of application

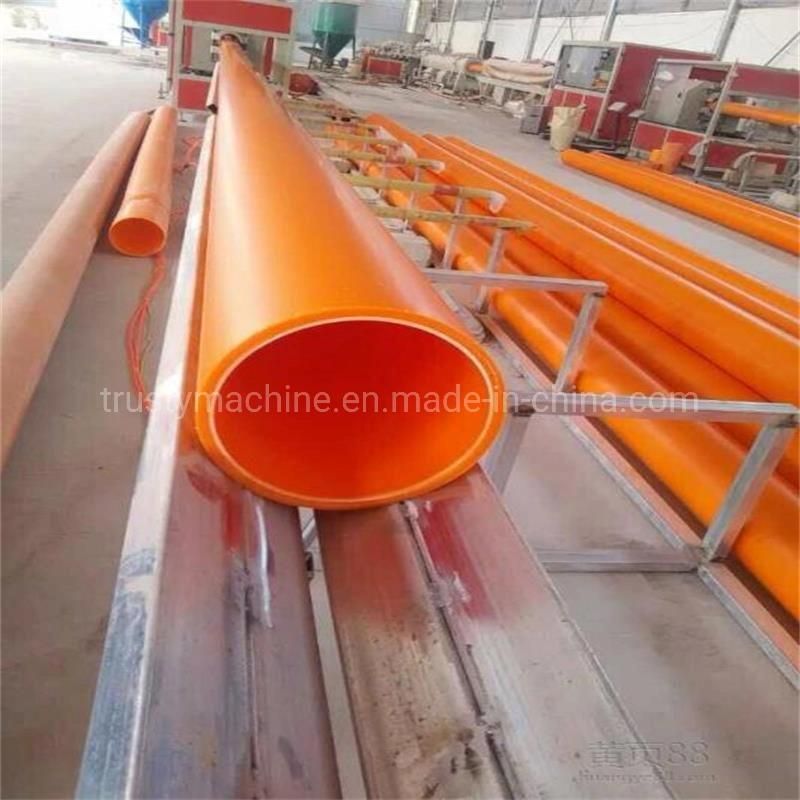

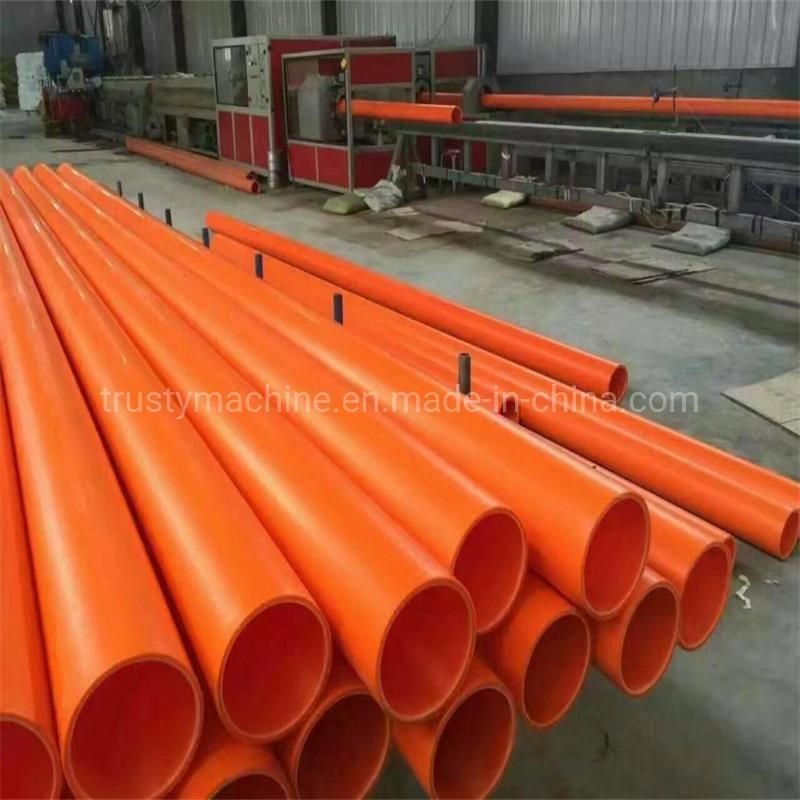

MPP cable pipes can be widely used in pipeline projects such as municipal administration, telecommunications, electricity, gas, tap water, and heating.
MPP cable pipe urban and rural non-excavation horizontal directional drilling power pipe project, and open excavation power pipe project.
MPP cable pipe urban and rural non-excavation horizontal directional drilling sewage drainage pipe project. Industrial wastewater discharge project.
Superiority
1. MPP power tube has excellent electrical insulation.
2. MPP power tube has high heat distortion temperature and low temperature impact performance.
3. MPP power pipe has higher tensile and compressive performance than HDPE.
4. MPP power pipe is light, smooth, low friction resistance, and can be welded butt welded.
5. The long-term use temperature of MPP power tube is 5~70ºC.About us
1)About company
Qingdao Trusty Plastic Machinery Co., Ltd. is a professional plastic extrusion equipment
manufacturer integrating design, research and development, production and sales.
The company's main products are rich, the production technology is mature, and the after-sales service is guaranteed. Products are sold at home and abroad, such as: Brazil, Chile, Mexico, the Philippines, Italy, Russia, Pakistan, Vietnam, India, Algeria, Egypt and other countries.

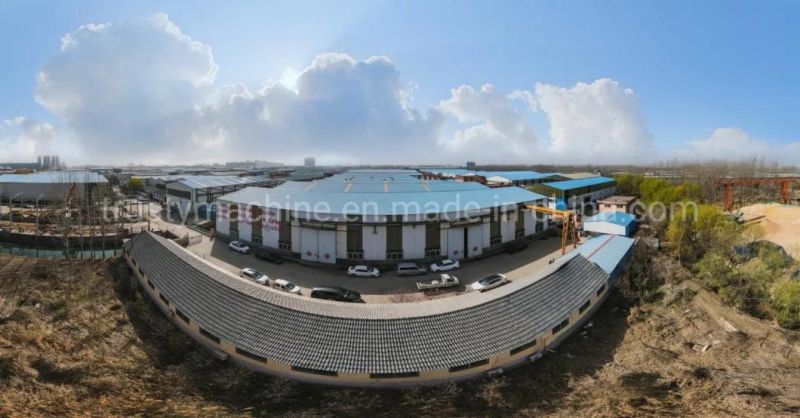

Our company is located in Qingdao, one of the plastic machinery bases in China, where the railway, sea transportation, aviation and other transportation systems are very complete. And it is one of the regions with rapid economic development in the coastal cities.The advantaged geographical conditions have provided great convenience for the development of the company's trade.
Our company's main products are:
PVC door and window profile production line
WPC wood-plastic profile production line
PVC wall panel production line
PVC/PE/PPR/PP pipe production line
PP/PE/ABS board/sheet production line
PVC/WPC crust foam board production line
PE/PP/PC hollow sheet production line
PVC roof tile production line
PP/PET packing belt production line
According to customers' needs, to achieve diversified processing customization.
Over the years, the company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.
2)About services
| Technical documentation |
| All symbols on the equipment will be in English. We will be responsible for providing the Buyer with a general layout plan, electrical plan, installation orientation and manuals, in English. |
| Arrangements for inspection, installation and testing of the equipment |
| a. After all of the equipment is delivered to the customer's factory, the Buyer shall be responsible for all preparation work, e.g. electricity supply, water supply, cranes and labor, etc. b. We will prepare visa applications for their engineers, who will assist in the equipment installation and testing at the Buyer's factory. c. The Buyer will buy a round-trip air ticket for the engineer(s) after the visa application is approved. The Buyer is responsible for all expenses generated, e.g. visa application fees, meals, accommodation and an allowance of $80.00 per day for each engineer. d. The engineer(s) will provide free training for the operators and maintenance people, in Buyer's factory. e. If the Buyer does not request commissioning by our engineer(s) within four months from the date of the bill of lading, it will be accepted that all the equipment has been successfully tested and approved by the Buyer. |
| Quantity and quality guarantee |
| a. In cases of quantity discrepancies or equipment damage, at the destination, the Buyer will file a claim within 30 days after the arrival of the goods at its destination. The insurance company and the shipping company will be responsible for all discrepancies and damage caused by the shipping company or other transportation companies. b. Guarantee period and after-sales services: 13 months from the date of the bill of lading. During this guarantee period, if there is a quality issue, we will provide spare parts without charge. If malfunctions are caused by the Buyer's improper operation of equipment, we will provide the Buyer with spare parts at cost prices. c. Long-term service: Beyond one year, we will provide the Buyer with spare parts at reasonable prices and provide long-term technical guidance. |

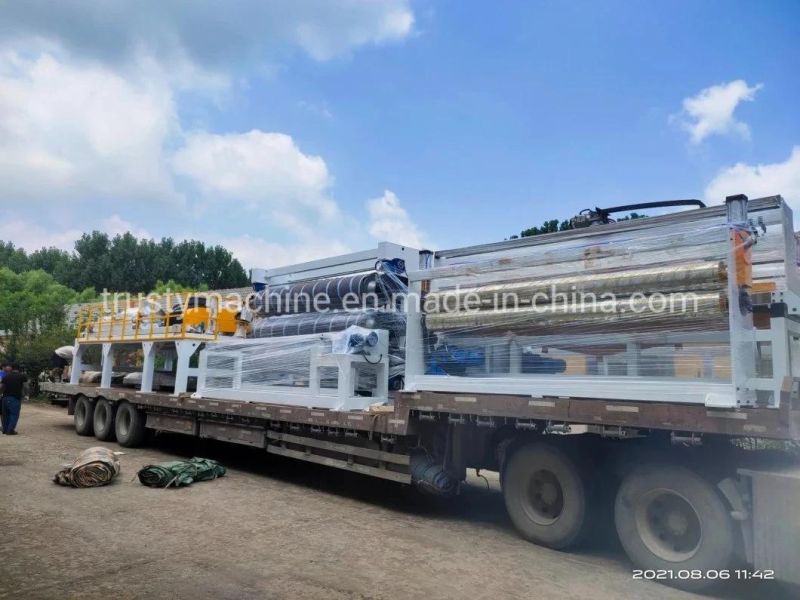

3)About Loading and transportation
FAQ
1.WHY CHOOSE US
We are the Professional manufacturer to develop the plastic extrusion machines in Qingdao. Machine quality and customer satisfaction is our pursuit.Be sure we have the strength to provide you with quality machines and perfect service.
2.WHAT SERVICES DO WE OFFER?
Pre-sale communication → Design proposal, signature confirmation→
Customized production→ Test machine before shipment →Package &
delivery→ Engineer installation→Training operator → Technical support
3.PAYMENT TERMS:
30% of total amount should be paid by T/T as down payment ,the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
