• Model NO.：MD-3L
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Transport Package：Export Standard Packing Type
• Specification：CE
• Trademark：Mingde
• Origin：China
• HS Code：8477
• Production Capacity：10sets,Year

3SJ60-MD1500
 3SJ65-MD1800
 3SJ70-MD2300
 Film width
 1200mm
 1400mm
 1700mm
 2100mm
 Film layer
 3
 Film thickness
 0.02 -0.12mm
 Output
 200kg /hr
 250kg /hr
 300kg /hr
 400kg /hr
 Suitable material
 LLDPE LDPE EVA
 Screw diameter
 Φ 45/ Φ 55/ Φ 45mm
 Φ 50/ Φ 60/ Φ 50mm
 Φ60/Φ70/Φ 60mm
 Φ75/Φ90/Φ 75mm
 Screw L/D
 L/D 30:1
 Screw speed
 100r/min
 Main motor power
 18. 5/30/18 .5kw
 22/37/22kw
 30/45/30kw
 55/90/55kw

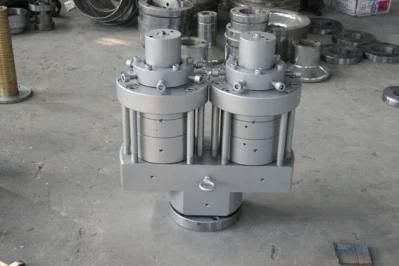

 Die structure
 ICB film tube inner cooling system
 Air-ring structure
 Double vents air ring
 Reversting haul-off system
 horizontal±180°
 Take-up wide up speed
 45 -120m /min
 Total power
 150kw
 280kw
 280kw
 280kw
 Machine size
  according to the machine actual sizeMachine weight
