• Model NO.：SJ65
• Computerized：Computerized
• Certification：CE
• Customized：Customized
• Condition：New
• Extruder Model：Sjsz90,33
• Mould for Sheet/Board：T Type
• Intelligent Temperature Controller：Omron
• Inverter：ABB
• Button：Schneider
• Control System：PLC Control System
• After Sale Service：Life Long with Professional After Sale Team
• Machine Color：as Request
• Operator：2-3
• Transport Package：According to Export Standard for Plastic Machine
• Specification：ISO9001 CE
• Trademark：SUKE
• Origin：Qingdao, China
• HS Code：84775900
• Production Capacity：40sets,Year

I. Machine Introduction Certificate: CE, ISO9001:2008, SGS,
Brand Name: SUKE
PVC free foaming board extrusion machine is  composed of special twin-screw extruder, T-die head and downstream equipments. This machine has the features of high output, stable extrusion, high foaming, smooth and wearable surface etc. And also our company will supply the customer raw material formulation and whole processing technology.
PVC foam boards produced by this line are widely used in automobiles, trains, in-house decorating, kitchen, bathroom cabinets, advertising boards and so on.
 II. Production Process Flow Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping(optional) --- Package.

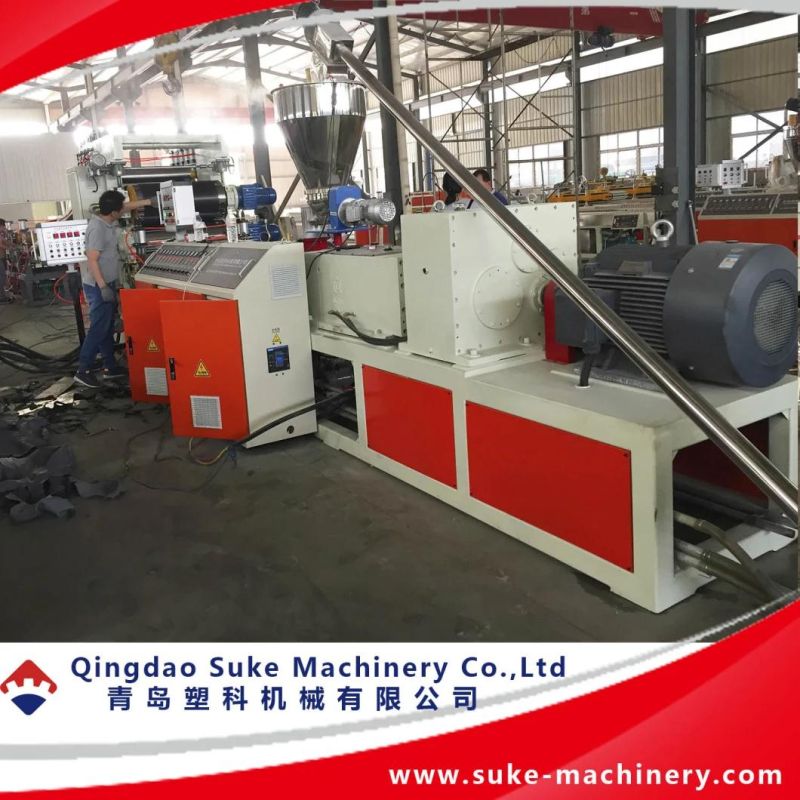

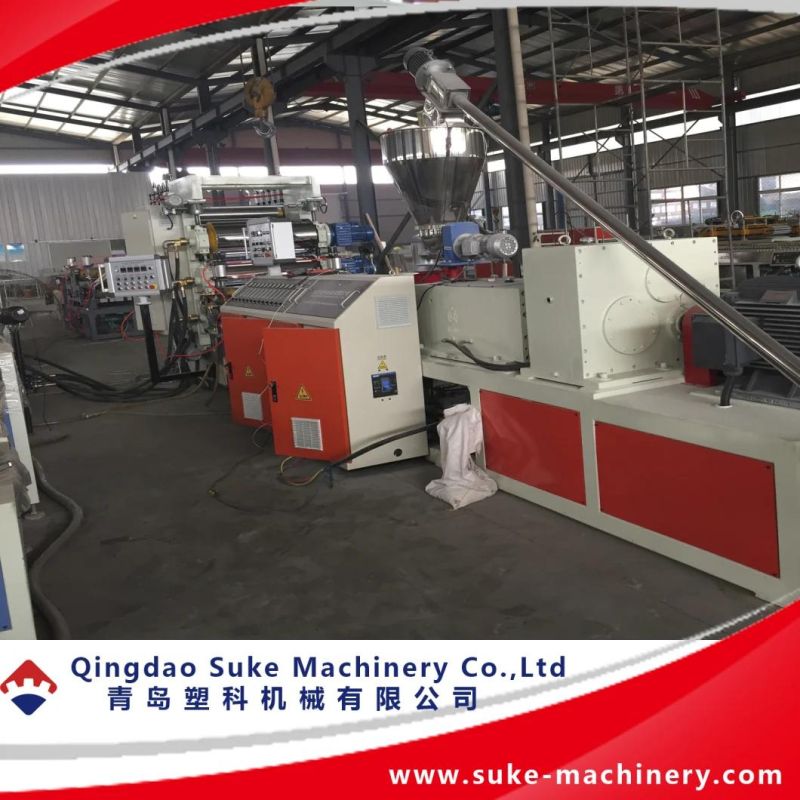

 III. Machine Features1.    Conical Twin Screw Extruder:
Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.
2.    Vacuum calibrating table:

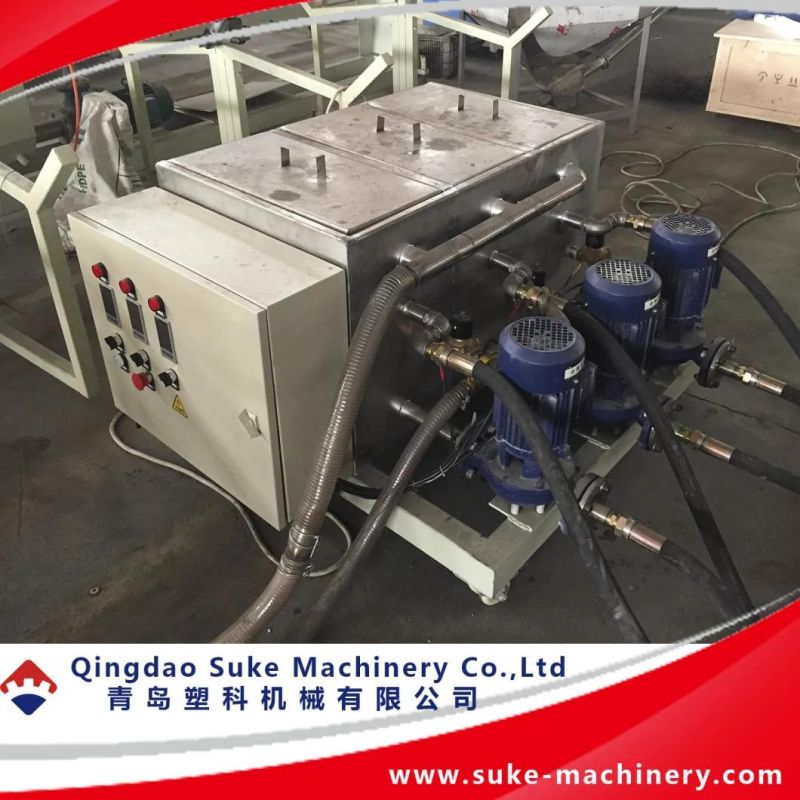

Adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.
3.    Haul off machine:
Adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
4.    Cutting machine:
the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.
 IV. Equipment List:1.    Double Screw Extruder (screw feeder)      1 unit

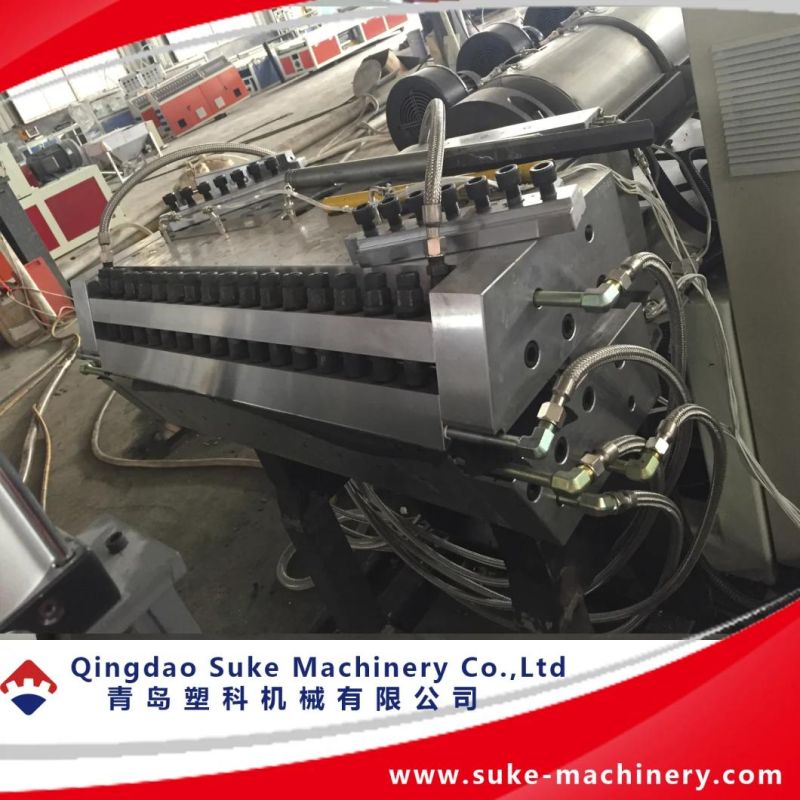

2.    Mould(T-Die)                                              1 set

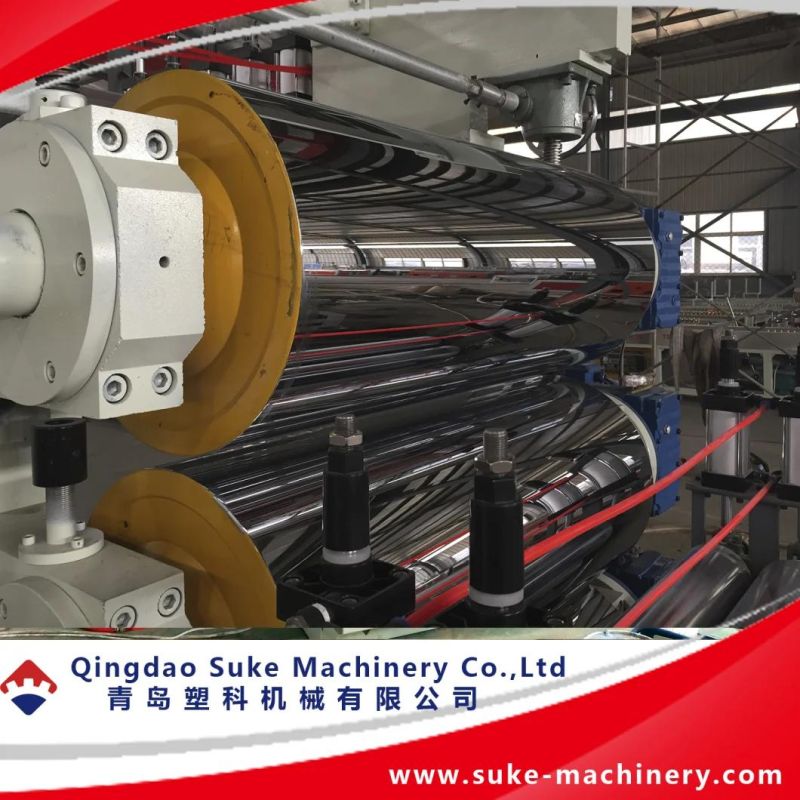

3.    Three Roller Calander                                1 unit
4.    Cooling Frame and edge Cutting Devices  1 unit
5.    Haul-off Machine                                         1 unit
6.    Cutting Machine                                          1 unit
7.    Stacker                                                        1 unit
Optional Auxiliary Machine;
1.    Crusher                                                       1 unit
2.    Mixer                                                           1 unit
3.    Pulverizer                                                    1 unit
4.    Air Compressor                                           1 unit



Model SJP120/21-1500 SJZ85/156-1150 Product width 2050mm 1220-1560mm Product thickness 0.6-1.5mm 0.5-3mm Extruder specification SJP120/21 SJZ85/156 Main motor power 132KW 90KW Max. Extrusion capacity 500Kg/h 300Kg/h

Welcome contact with us, if there is any need. Thank you.
