• Assembly Structure：Integral Type Extruder
• Screw：Multi-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Material：LDPE,LLDPE
• Transport Package：Wooden Box Packing
• Specification：8*6*2.5m
• Trademark：WT
• Origin：China
• Production Capacity：1000

Basic Info.

Assembly Structure Integral Type Extruder Screw Multi-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Material LDPE/LLDPE Transport Package Wooden Box Packing Specification 8*6*2.5m Trademark WT Origin China Production Capacity 1000

Product Description

5 Layers Bubble Wrap Film Extrusion Machine









Introduction of air bubble sheet making machine:

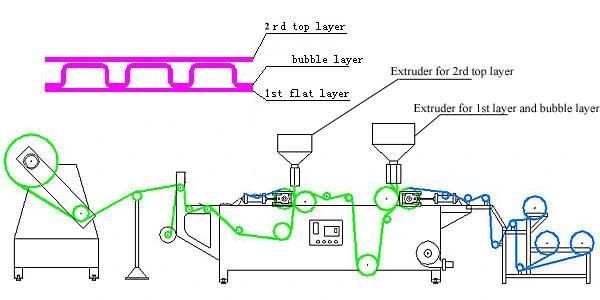

1. Main parts: two extrusion parts, two electrical control part, forming part and winding part.

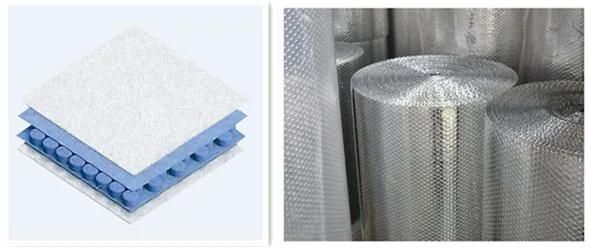

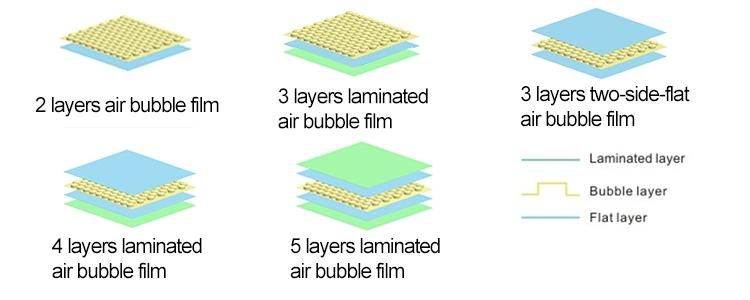

2. Be able to produce three layers air bubble film.


3. Standard widths: 1500mm and 2000mm. Special offer between 1000 and 300mm

4. Be able to manufacture various specifications of bubble between Φ4mm and Φ30mm and forming mould with different heights.

5. Cool the forming mould with water inside or with wind outside etc. cooling methods to satisfy the request of different raw materials and air bubble film. The cheapest raw material will also have the good laminated purpose and prevent air bubble from being broken and other quality problems.





Model	Max. Width	Screw Diameter(mm)	Screw & Barrel material	Capacity (kg/hr)	Line Speed (m/hr)	Heating Power (kW)	Consumption  Power (kW)	Layer	Weight  (kg)
1000	1000	Φ55mm/Φ55mm / Φ55mm	38CrMOALA	65-120	700-1800	83	40-47	3	6000
1200	1250	Φ55mm /Φ55mm / Φ55mm	38CrMOALA	83-120	700-1800	83	42-49	3	7000
1500	1500	Φ65mm /Φ65mm / Φ55mm	38CrMOALA	100-160	700-1800	95	53-60	3	7500
1600	1600	Φ65mm /Φ65mm / Φ55mm	38CrMOALA	108-160	700-1800	95	55-65	3	8000
2000	2000	Φ75mm /Φ75mm / Φ65mm	38CrMOALA	135-210	700-1500	112	70-80	3	10000
2500	2500	Φ85mm /Φ85mm/  Φ75mm	38CrMOALA	150-240	700-1500	143	80-90	3	12000
3000	3000	Φ90mm /Φ90mm / Φ80mm	38CrMOALA	160-260	700-1500	150	90-98	3	13000





Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing. If export to EUROPEAN countries, the wooden box will be fumigated. we  use PE film for packing or pack it according to customers special request.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
