Taiwan High Speed T Shirt Bag Plastic Film Blowing Machine Extruder
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：800mm
- Screw Diameter：50mm
- Automation：Automatic
Base Info
- Model NO.：SJ-
- Computerized：Computerized
- Machine Weight：1.2t
- Certification：CE, ISO9001:2008
- Die Type：Rotary Die
- Winder Type：Double Winder
- Main Motor：15kw
- Transport Package：Based on Customer Requestment
- Specification：SGS
- Trademark：YUNBANG
- Origin：China
- HS Code：8477309000
- Production Capacity：15 Sets,Month
Description
Basic Info.
Model NO. SJ- Computerized Computerized Machine Weight 1.2t Certification CE, ISO9001:2008 Die Type Rotary Die Winder Type Double Winder Main Motor 15kw Transport Package Based on Customer Requestment Specification SGS Trademark YUNBANG Origin China HS Code 8477309000 Production Capacity 15 Sets/MonthProduct Description
Product DescriptionSJ-50 LDPE / HDPE Rotary Die Head Film Blowing Machine
1.certificate: CE
2. high quality with the most competitive price
3.make special accoring to the client requirment
4. Rotary dIe Head. double rewinder
Use:
It is used for blowing the various plastic film of low density polyethylene (LDPE), high density polythylene(HDPE) and linear low density polyethylene(LLDPE) etc. Which are widely used for packing liquid industrial products garment and textile, etc. And printing lamination.
Characteristics:
The cylinder and the screw stems of the extruder are made of high quality alloy steel with optimum hardness and strong corrcsion resistance after ntrogen treat- ment and precision finishing. The auxllary machine has a plat from working table for making operation easy and is equipped with bubble stabillzing ring. Double- rolling and double cutting unit adopts torque motor to motor to keep proper tension and make even and roll-changing easy.
Main Technical Variables:
| Model | SJ50 | SJ55 | SJ65 | SJ65-1 |
| Diameter of screw | Φ50 | Φ55 | Φ60 | Φ65 |
| Reduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
| Max. Extrusion(kg/h) | 35 | 50 | 65 | 80 |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of main motor(kw) | 7.5-11 | 11-15 | 18.5-22 | 22 |
| Power of Traction motor(kw) | 1.1 | 1.1 | 1.5 | 1.5 |
| Heating Power(kw) | 11 | 13 | 19 | 21 |
| Outline diameter(L*W*H)(mm) | 4800*1900*3500 | 5500*2100*3800 | 6500*2300*4200 | 6500*2500*6000 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |

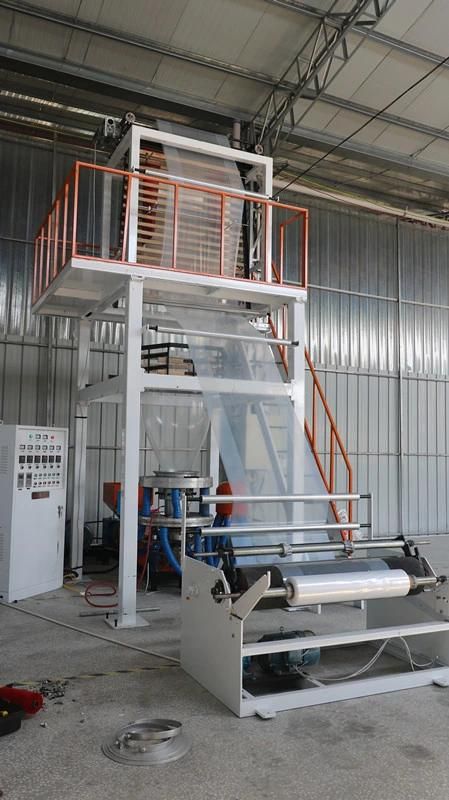

The Machine Picture:
