New Electronic Heating Lab PVC Plastic Granule Process Open Two Roll Mill for Rubber
Dongguan Xihua Machinery Technology Co., Ltd.- After-sales Service：a Lifetime of Service
- Warranty：One Year
- Mixed Capacity：0.5-1kgs or Designated
- Temperature of The Roller：Electrical Heating Room Temp ~ 300ºC
- Heating Mode：Electrical Heating
- Revolution of The Roller：Dual-Frequency Limitless Speed Change
Base Info
- Model NO.：XH-401CE
- Roller Pitch：0.1~5mm Adjustable
- Size of The Roller：Φ120mm*L350mm or Designed
- Transport Package：Wooden Case
- Specification：1000*550*1200mm
- Trademark：Xihua
- Origin：China
Description
Technical Parameter Of XH-401CE lab two roll millApplicable materials PP, PE, PVC, rubber, etc. Mixing capacity 0.5-1kgs or designated Roller diameter 160mm or designed Roller width 350mm or designed Roller gap 0.1 - 5mm (adjustable) Speed of roller 18r/min Heating mode electrical heating Safety device protective cover, safety lever, reverse door, emergency stop button Motor 1HP (2 Sets) Power supply 380V/50Hz/3 phases or Customerized
Main Features of lab two roll mill
1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.
Detailed Images

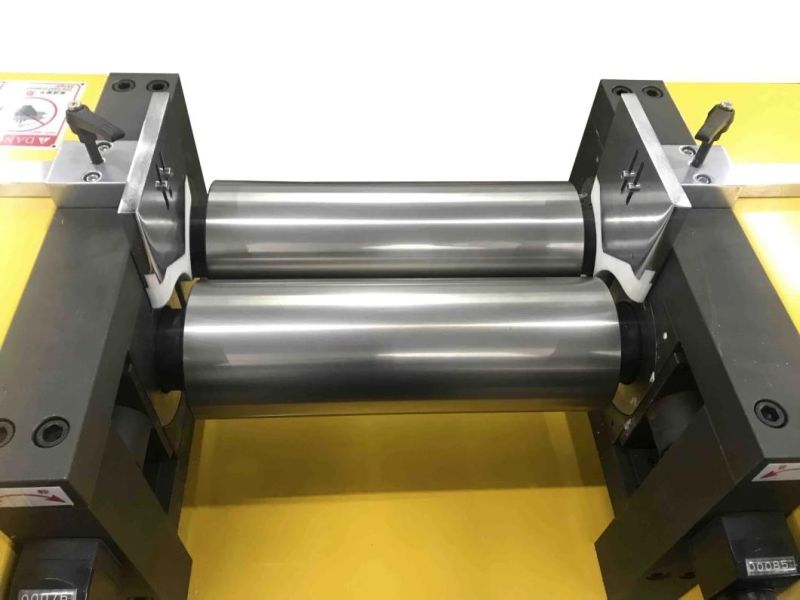

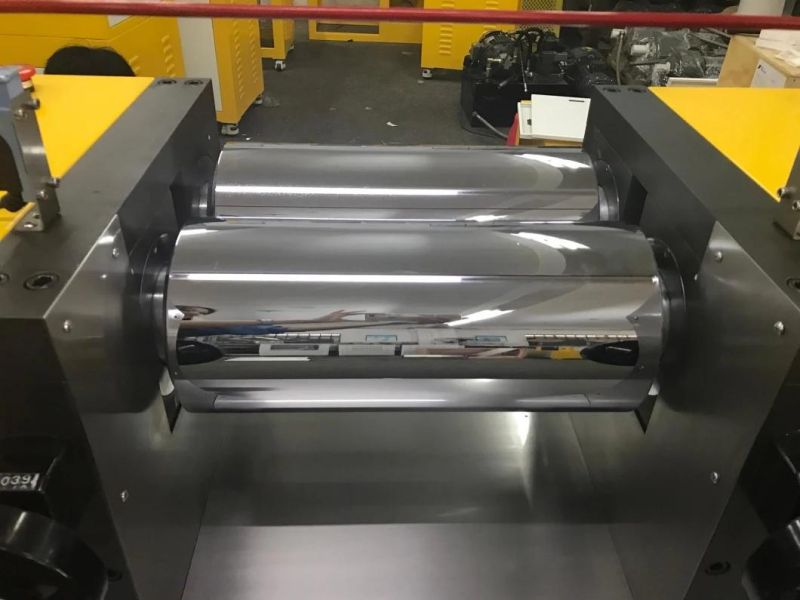

1. Alloy steel roller, High wear resistance, no deformation, high overall hardness, 0-to-0 grinding
2. Rubber and plastic is different. We will suggest the roller to you according to your material.
3. The size of the rollers and equipmentcan be increased according to customer's requirement.
1. Safety Device: Reversible rollers (by kicking at the door of the machine). Safety switch. Protective cover.(It can add some other safety device according to your requirements)

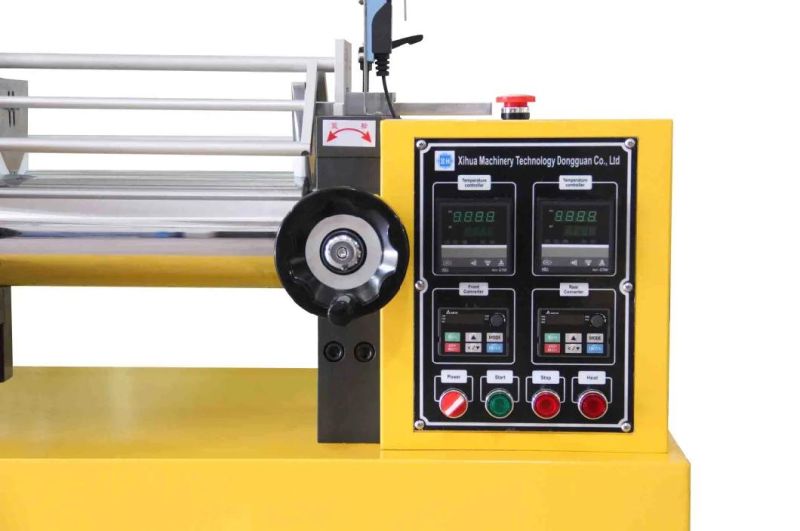

2. It adopts Japanese RKC, LED temperature controller and high precision sensor, Accurate and stable temperature, Speed of roller are easy to control by two frequency converter.

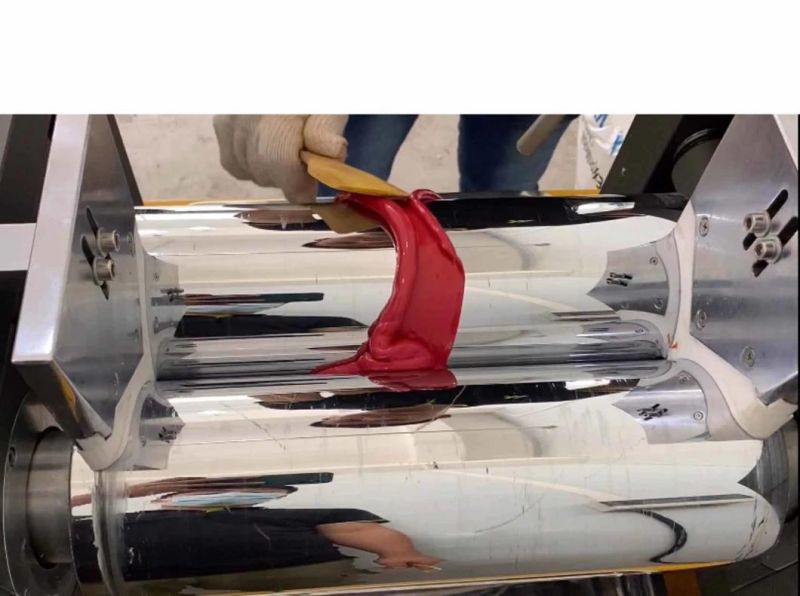

Picture is made of PP and Red masterbatch
