• Model NO.：2SJ-G
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Machine Color：We Can Make According to Your Demand
• Transport Package：Wrapping Film
• Specification：CE
• Trademark：Changyin
• Origin：China
• HS Code：84773090
• Production Capacity：50sets,Year

Basic Info.

Model NO. 2SJ-G Machine Weight 4T Certification CE, ISO9001:2008 Machine Color We Can Make According to Your Demand Transport Package Wrapping Film Specification CE Trademark Changyin Origin China HS Code 84773090 Production Capacity 50sets/Year

Product Description

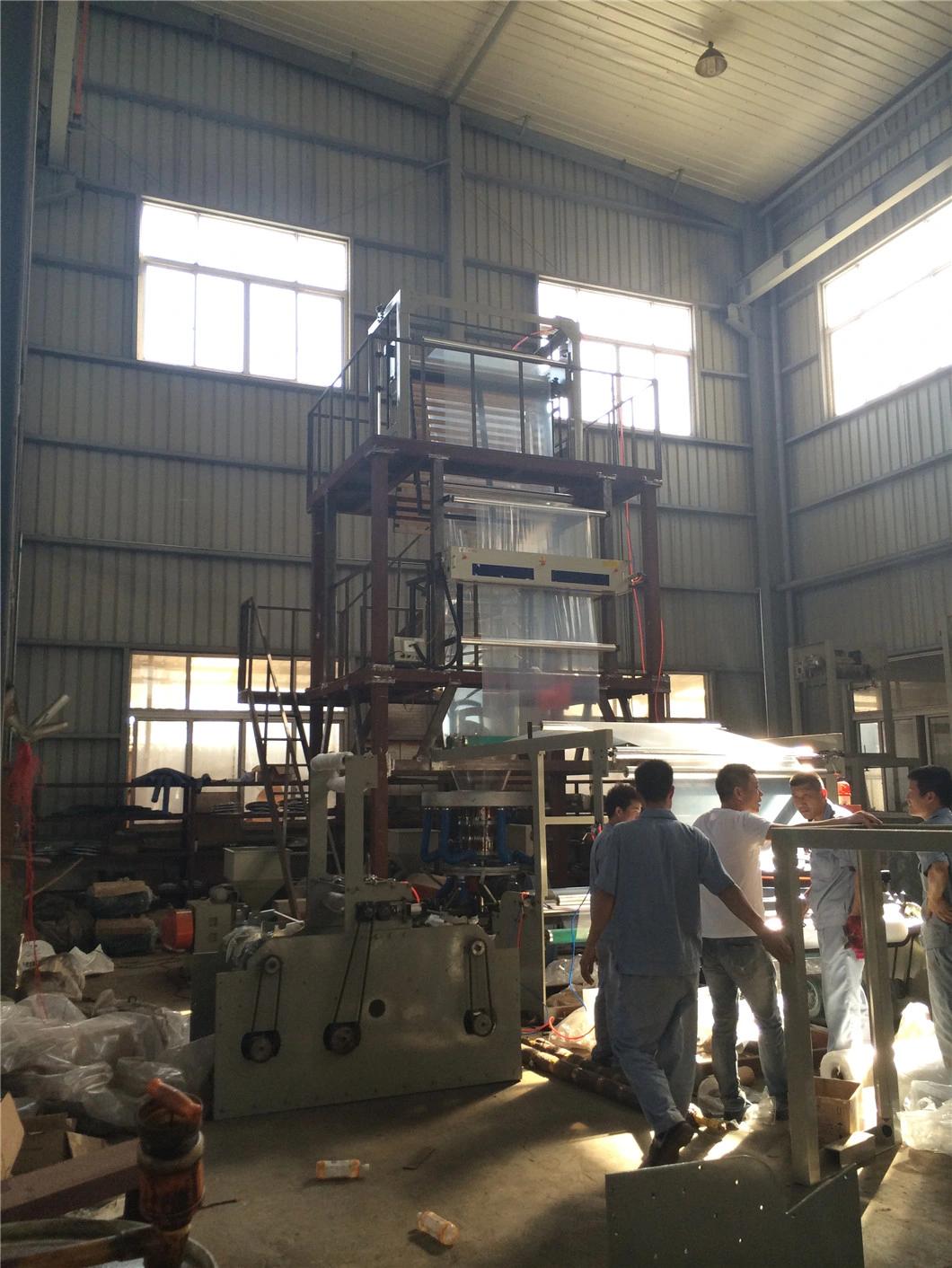

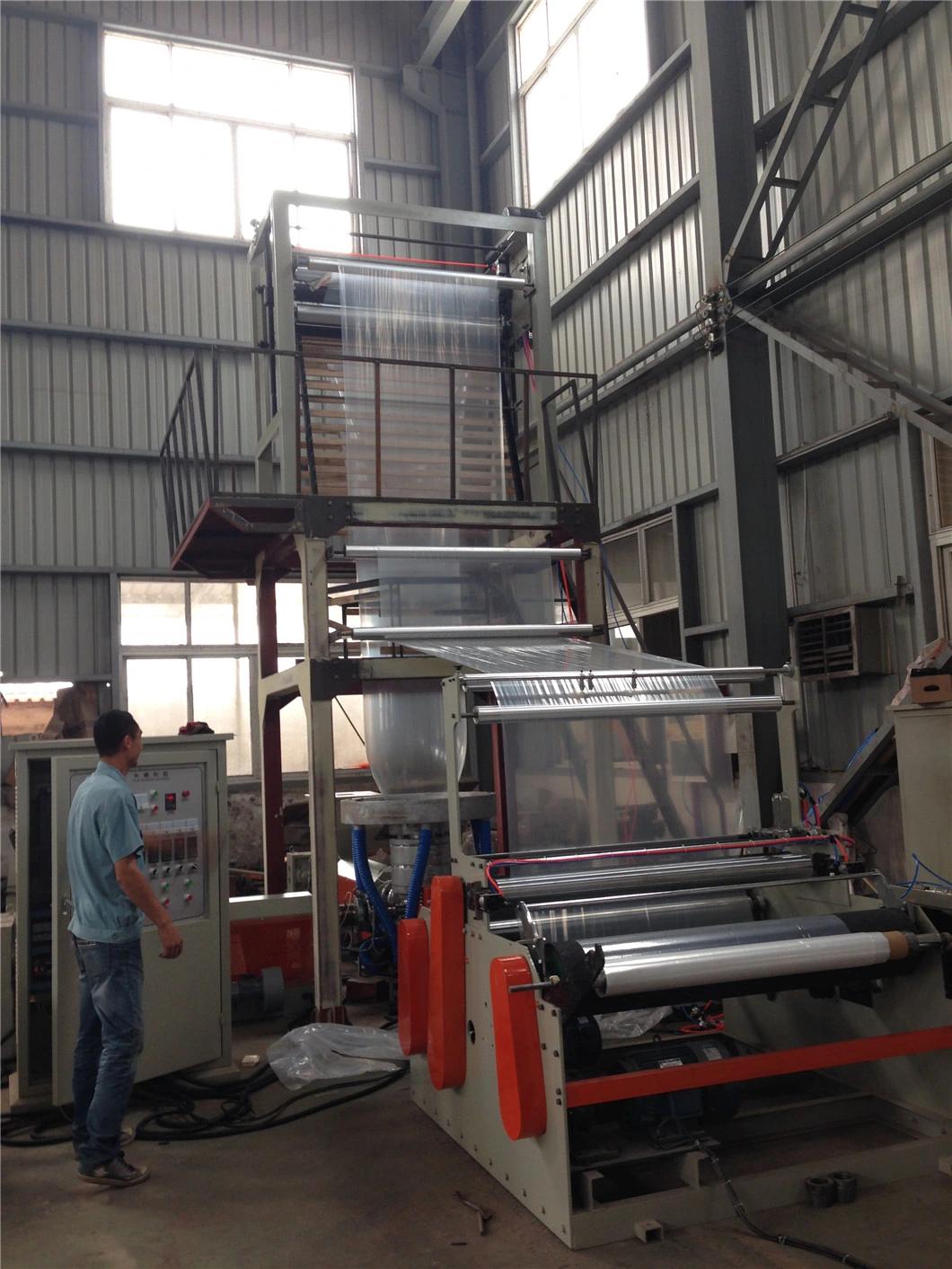

SJ-G Double-Layer Co-Extrusion with double winder

Usage:
The machine plasticizing two identical or different raw substances by two extruder extrude them to the complex machine head, then produces the co-extruding molded complex film. By this way, it makes possible to enhance the film's physical performance, rigidity, good insulation-proof and impenetrability.

Material: LDPE. HDPE. LLDPE

Optional Equipment:
Auto loader
Film surface treater
Air compressor
Air cooling device


Model	2SJ-50	2SJ-55	2SJ-60
Suitable Material	HDPE LDPE LLDPE	HDPE LDPE LLDPE	HDPE LDPE LLDPE
Screw   Diameter	φ 50 × 2	φ 55 × 2	φ 60 × 2
F ilm  Width (mm)	600-1000	800-1500	1000-1800
Film  Thickness (mm)	0.03-0.20	0.03-0.20	0.03-0.20
Max  Extrusion O utput(kg/h)	80	120	160
Screw  L/D  Length	28 : 1 30:1	28 : 1 30:1	28 : 1 30:1
M ain  M otor(kw)	1518.515	18.52218.5	223022
Take-up Motor (kw)	1.5	1.5	2.2
Outline  Dimension (L × W × H)(m)	6.5*5.5*5.5	7.5*5.8*7.5	7.8*6.4*8
