Polyurea Waterproof Foam Spray Machine

Shandong Hightop Group
  • Type：Polyurethane Foam Machine
  • Raw Material：PP
  • Principle：High-Pressure Air Type
  • Automation：Non-Automatic
  • Computerized：Non-Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：CNMC-500
  • Output：14kg,Min (30 Lb,Min)
  • Clean Mode：Self-Clean by Air
  • Transport Package：Wooden Case or as Customer′s Requeaet
  • Specification：1400mm*990mm*60mm
  • Trademark：CNMC
  • Origin：Shandong, China
  • HS Code：8477800000
  • Production Capacity：300 Sets,Month

Description

ItemCNMC-500 Hydraulic polyurea spray machine

Standard

configuration

Proportion Fixed Mainframe: 1 setSelf-cleaning spray gun: 1 setFeeding pump: 2 setsHeating hose: 49.2 feet (15m)Connecting hose from feeding pump to machine: 10 feet(3m)Connecting hose from heating hose to gun: 5 feet(1.5m)Rings and ToolsTechnical DataThe ratio of raw material: 1:1(Fixed)The viscosity range of raw material: 200-1000CPS (Under the operate temperature)Max Working pressure: 25 MPa (200 bar)Max fluid temperature: 88°C (190°F)Max Output: 14kg/min (30 lb/min)Heating hose power: 2000W*2Max hose length: 94m (308 feet)Whole power: 17KWVoltage: 380V/400V 3 phaseOperate temperature: 0°C-70°CClean mode: Self-clean by airMax heating hose length: 308 feet (94m)Working fluid pressure: 6-8MpaMachine size: 1400mm*990mm*60mmGross weight: 240KG

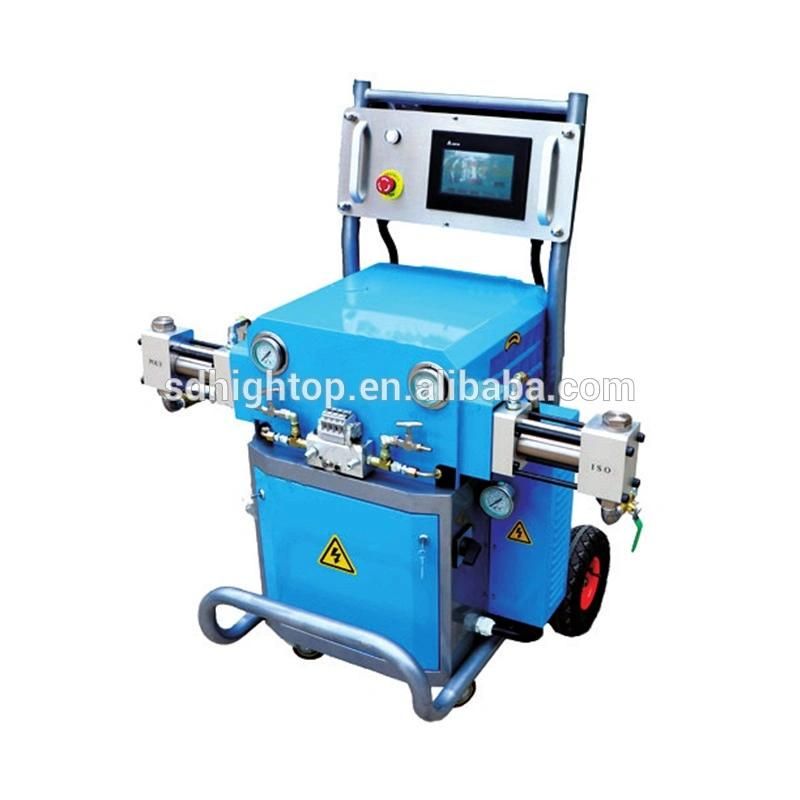

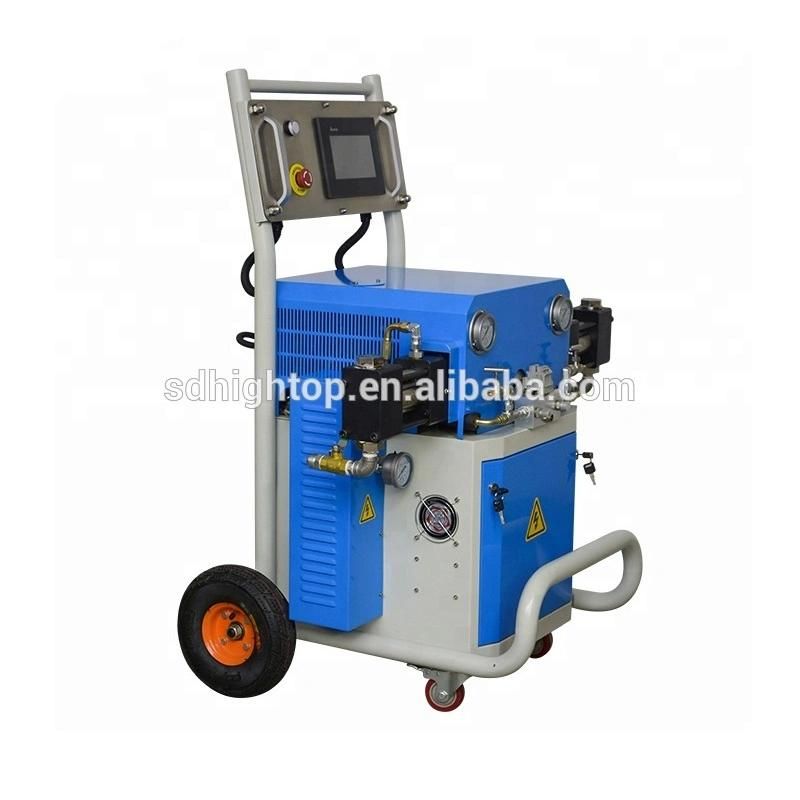

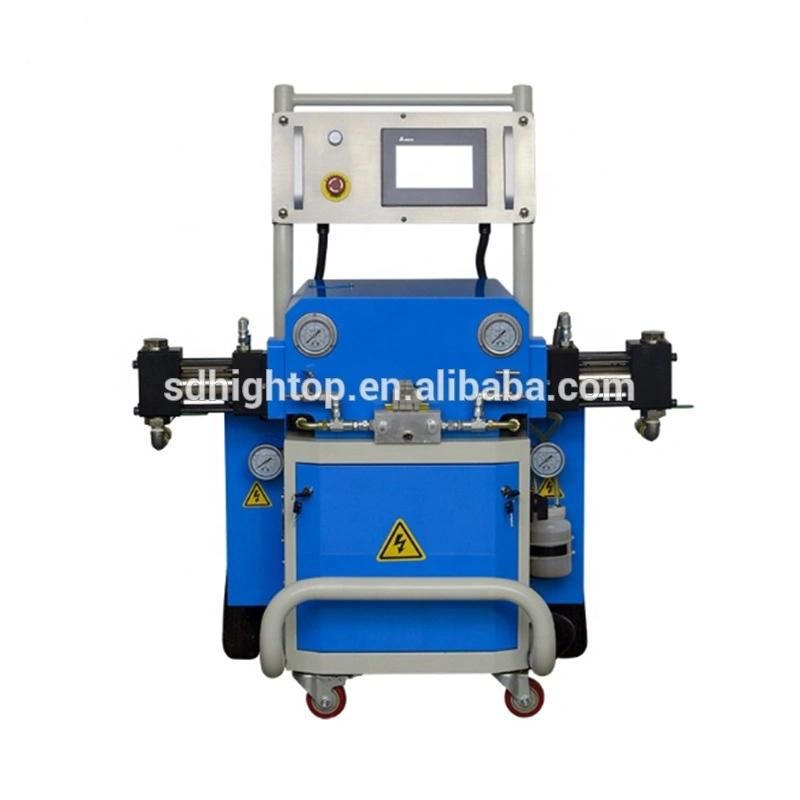

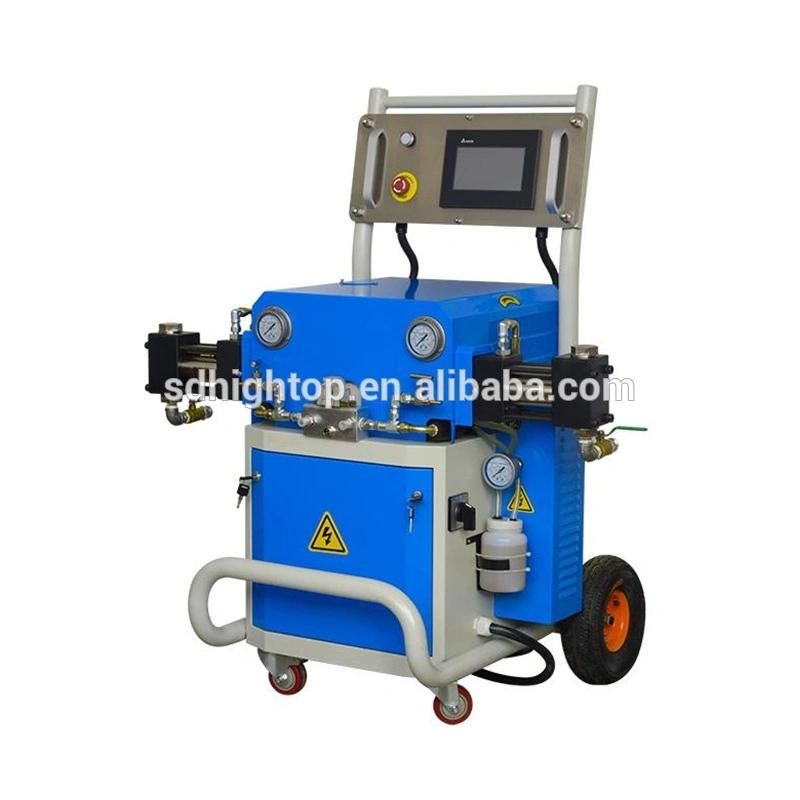

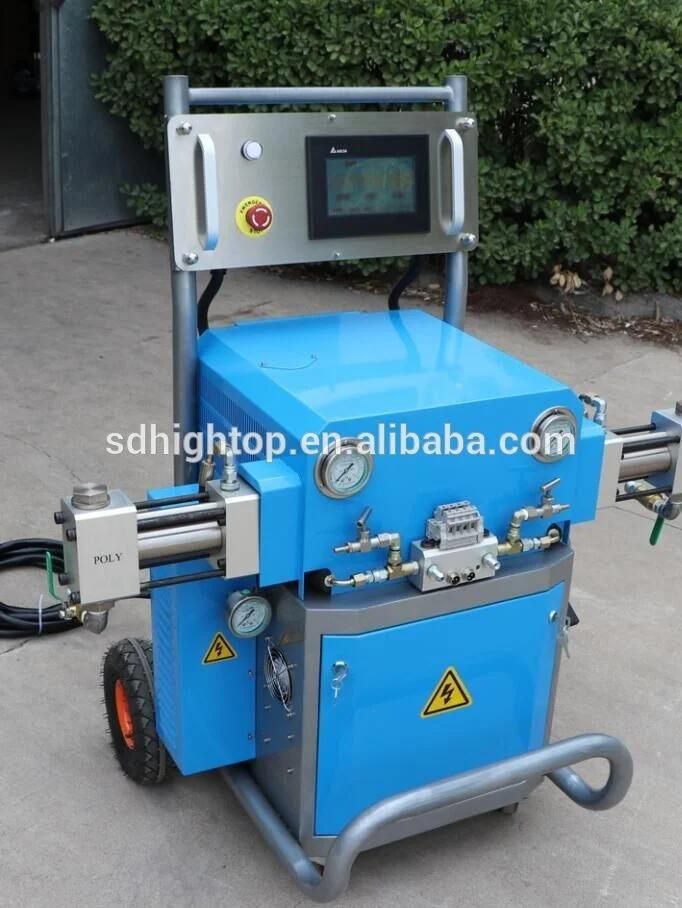

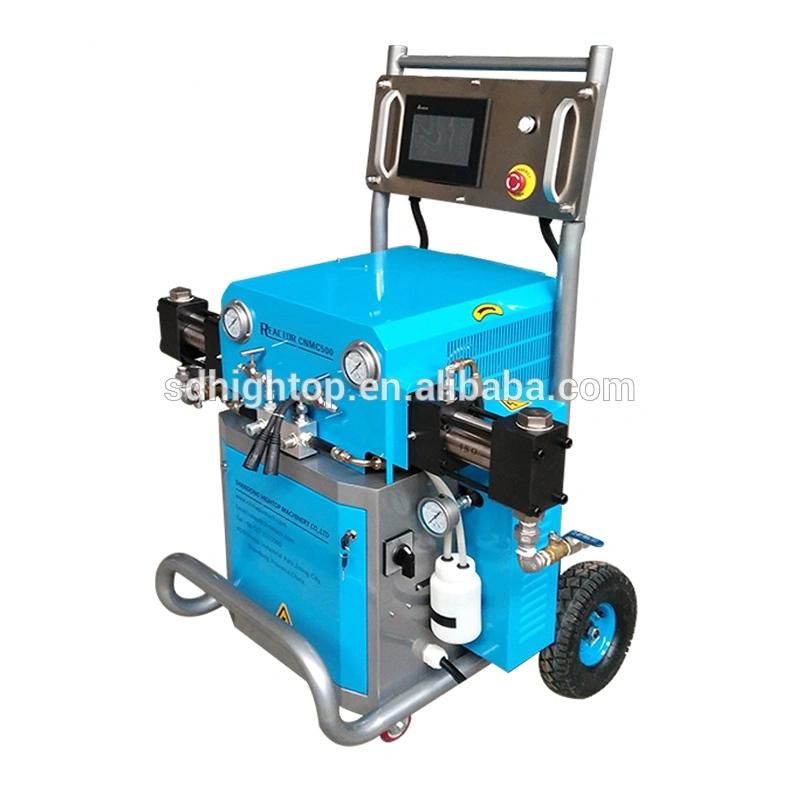

Images of hydraulic polyurea foam spray machine

Polyurea Waterproof Foam Spray Machine
Polyurea Waterproof Foam Spray Machine
Polyurea Waterproof Foam Spray Machine
Polyurea Waterproof Foam Spray Machine
Polyurea Waterproof Foam Spray Machine
Polyurea Waterproof Foam Spray Machine
Polyurea Waterproof Foam Spray Machine
