• Model NO.：CX-1500
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Formulation Material：Calcium Carnonate,PE.Llpe LDPE.,PP,ABS,Pet
• Products：Plastic Sheet
• Control System：Center Control by PLC System
• Capacity：From 500kg,H to 1500kg,H
• Transport Package：Woodend Box
• Specification：CE,ISO9001
• Trademark：CX
• Origin：China
• HS Code：847780000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. CX-1500 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Formulation Material Calcium Carnonate,PE.Llpe LDPE.,PP,ABS,Pet Products Plastic Sheet Control System Center Control by PLC System Capacity From 500kg/H to 1500kg/H Transport Package Woodend Box Specification CE/ISO9001 Trademark CX Origin China HS Code 847780000 Production Capacity 100 Sets/Month

Product Description

Name:  China top quality EPDM damping sheet extrusion machine for automobile lining,EPDM Damping Sheet Extrusion Machine,EPDM Damping Sheet Extruder,EPDM Damping Sheet Calender,EPDM Damping Sheet Extruder,ABS sheet extrusion,PVC sheet extrusion
Plastic sheet extruder,plastic extruder, pleastic sheet extruder machine,plastic sheet extruding machine,plastic extrusion machine.

Model : CX1500

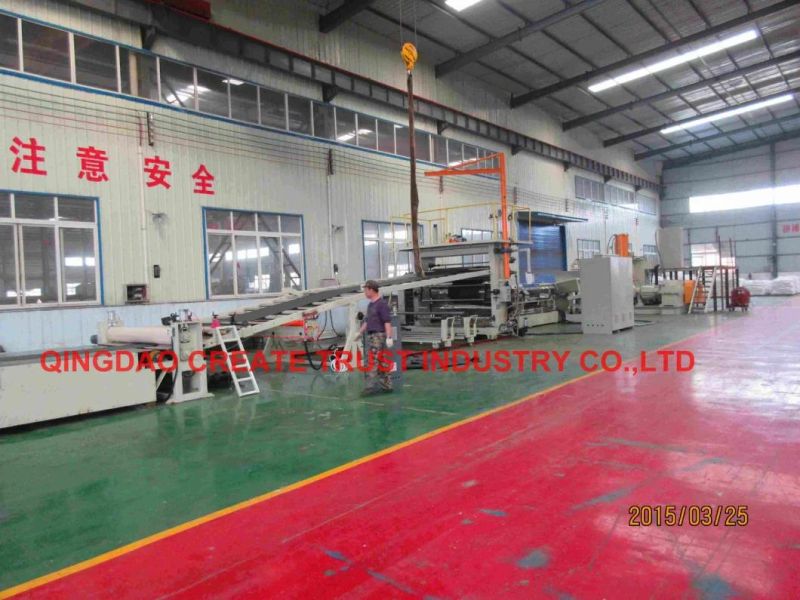

Usage: This line machine is maily designed for EPDM damping sheet production. Also same principle for other plastic sheet production, like PVC sheet, ABS sheet ect.

Consist of machinesd: rubber kneader (banbury mixer),force feeding machine,extruder,three roll calender,winding machine ect.

Details instruction below :

1- Plastic kneader (banbury mixer) :  Specially designed for plastic mixing, with heating system. rotor is stellite welded,after polishing and quenching. this will make rotor and chamber high wear-resistant.

The reducer are hardened gear teeth,no noise,longlife us .

2- Force feeding device :

 INVT frequency converter.
Double screw for material feeding,
Contaction with single screw is Harvard structure

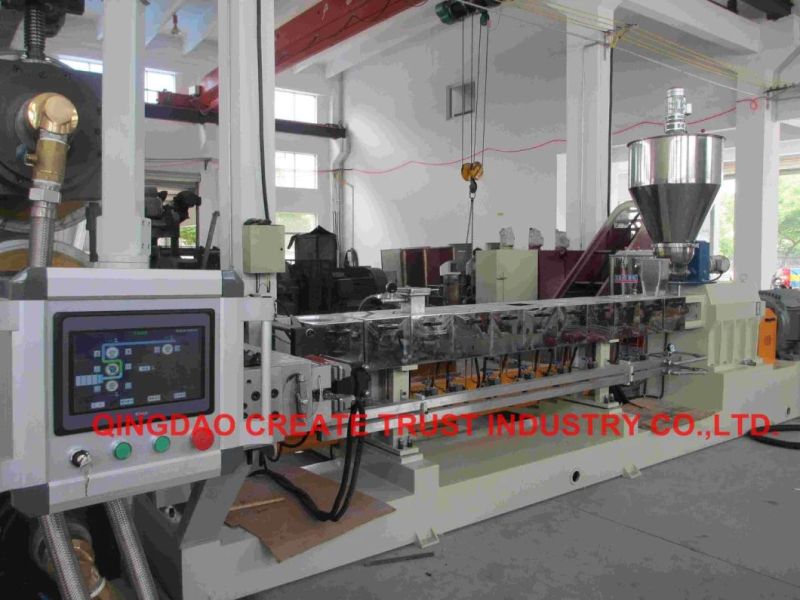

3- The  extruder is the highest technology design now in this area :

Screw is made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Cooling by water .

Barrel material is nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Outer with stainless steel cover .  Heating of barrel is made by Cast aluminum heater.

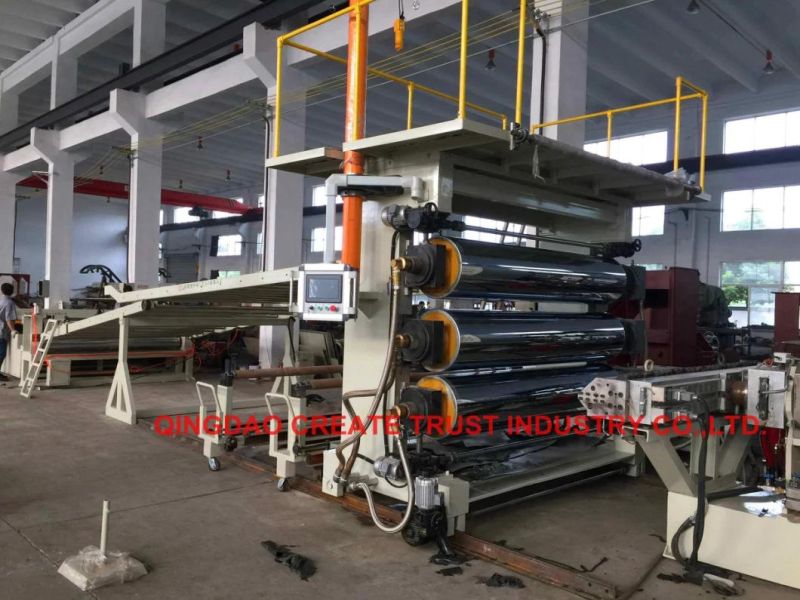

4- Three roll calender and auxiliary machines.

Roll diameter φ400mm
Roll length : 1500mm
Quanity of roll : 3 pcs
Water in/out diameter: 11/4"
Circular degree: 0.005mm
Coaxiality : φ0.012mm
Roughness : Ra0.025μm
Quenching hardness : HRC60,quenching thickness : 5mm
Chrome plated : T=0.1
Thickness of roller : 30mm
Linear speed of roll  : 0-15 meter/minute

Bearing group : NSK,Japan. High temperature resistant double row cylindrical roller bearing self-aligning.

Roll adjustment : manual operation, Up/Down of roll range : 0-70mm, gap range : 1-5 mm.  Power of driving motor is 0.37KW.

Each roll with one reducer and one AC frequency motor. Power is 2.2 KW,total three sets.


5- The electric parts we used is DELIXI brand,contactor is from SIMENS.



Service of us :

1- We can design whole line machine for plastic sheet production. We also can provide formulation, our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .

2- The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.

All we do is for longterm cooperation , " CREATE TURST" !
