• Model NO.：mini shredder machine
• Knife Roll：Hollow Knife Roller
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, SGS
• Name：Plastic Shredder Machine
• Color：Custom-Made
• Motor：Siemens
• Inverters：ABB
• Handle：Waste Plastic
• Core Part：Plastic Shredder
• Feeding Type：Conveyor
• City：Zhangjiagang
• Blade：SKD11
• Material Transfer：Blower
• Machine Material：Hard Steel
• Cutting Type：Shear
• Temperature Control：Omron
• Contactor：Schneide
• Apply：Shredder Machine
• Transport Package：Sea Packing
• Specification：500kg,h
• Trademark：WEDO
• Origin：China
• HS Code：847780000
• Production Capacity：10 Sets

Basic Info.

Model NO. mini shredder machine Knife Roll Hollow Knife Roller Automation Automatic Computerized Computerized Certification CE, SGS Name Plastic Shredder Machine Color Custom-Made Motor Siemens Inverters ABB Handle Waste Plastic Core Part Plastic Shredder Feeding Type Conveyor City Zhangjiagang Blade SKD11 Material Transfer Blower Machine Material Hard Steel Cutting Type Shear Temperature Control Omron Contactor Schneide Apply Shredder Machine Transport Package Sea Packing Specification 500kg/h Trademark WEDO Origin China HS Code 847780000 Production Capacity 10 Sets

Product Description

Mini Plastic Shredder Grinder Foam Chip Crusher Machine

Description of Industrial Wood Paper Single Shaft Plastic Shredder Machine:
      Single Shaft Plastic Shredder Machine can handle a variety of plastics, like bulky pipes and profiles, massive purge pieces, and other production waste such as PET bottles, textile fibers, PE film, drum, sheet, board, insulation, plastic decking, carpet, containers and crates.
The single shaft plastic shredder machine also can process below material:

1. Wood including wood timber, Tree Root, Wood Pallet shredder equipment
2. Cable and electrical wire shredding process
3. Paper: Newspaper and Carton box and books
4. Light metal: Aluminum Can, Aluminum Scraps
5. TV Shell, Washing machine shell. Regrigerator Body. Circuit Board.
6. Rubber
7. Texible product, Cloth or Fiber product.


Features of Industrial Wood Paper Single Shaft Plastic Shredder Machine:

• Teeth are DC53 steel. Stator knives are D2 steel.
• The main electronic controls are a combination of Siemens and Schneide.
• Microcomputer technology incorporating rotator speed variations with 'start', 'stop' and 'reverse' features.
• Automatic reverse sensors to protect the machine against over loading and jamming.
• Engineered using split bearing block technology so the blades can changed quickly and efficiently.
• Specifically designed rotor to be extremely wear resistant.
• Rotor teeth can rotated 4 times before they need changing, lowering running costs and reducing down time.
• Extremely versatile machine able to process a number of different materials
• Machinery protection, accord with the European CE standard.

• PLC control
• Multiple switch protected
• Blade material SKD11(Cr12MOV)
• Single shaft design

Photos of Industrial Wood Paper Single Shaft Plastic Shredder Machine

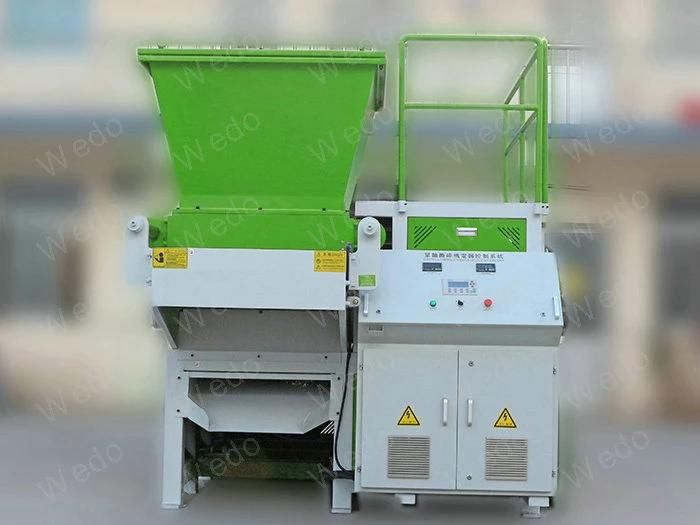

Over view of Industrial Wood Paper Single Shaft Plastic Shredder Machine

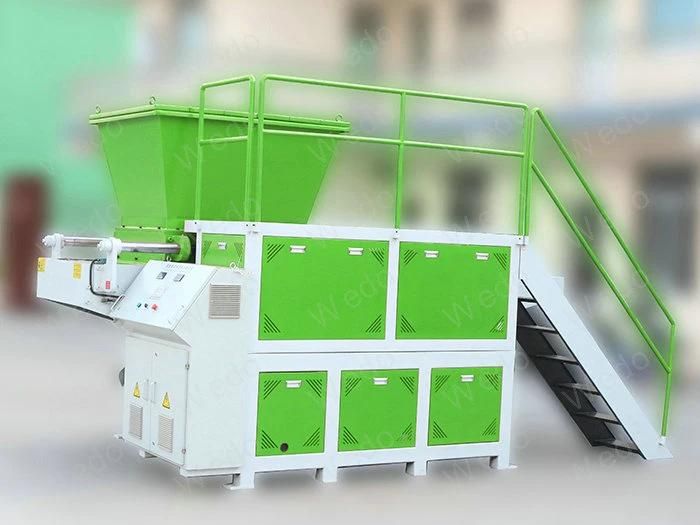

over view front of Industrial Wood Paper Single Shaft Plastic Shredder Machine

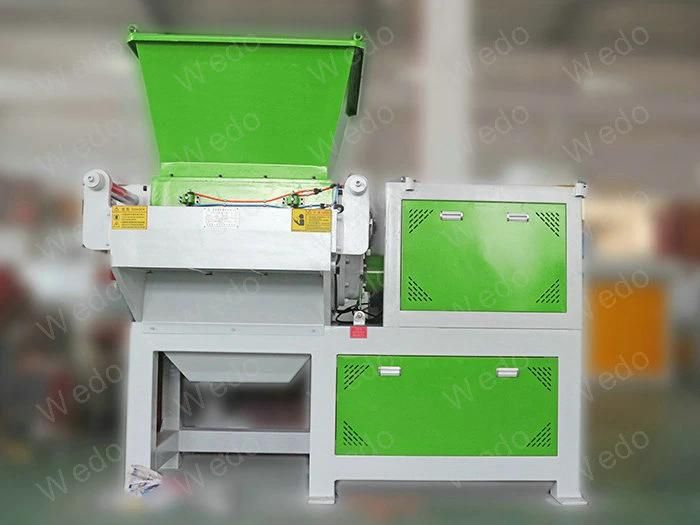

back view of Industrial Wood Paper Single Shaft Plastic Shredder Machine

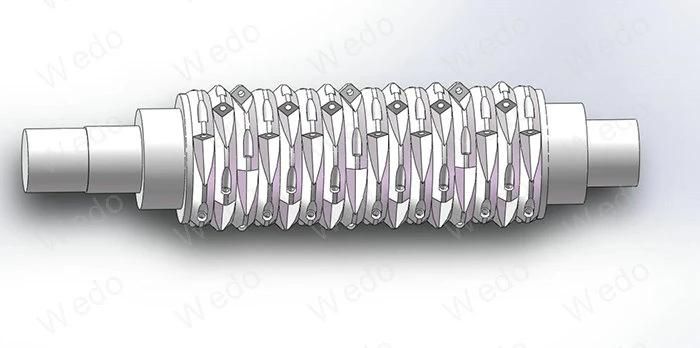

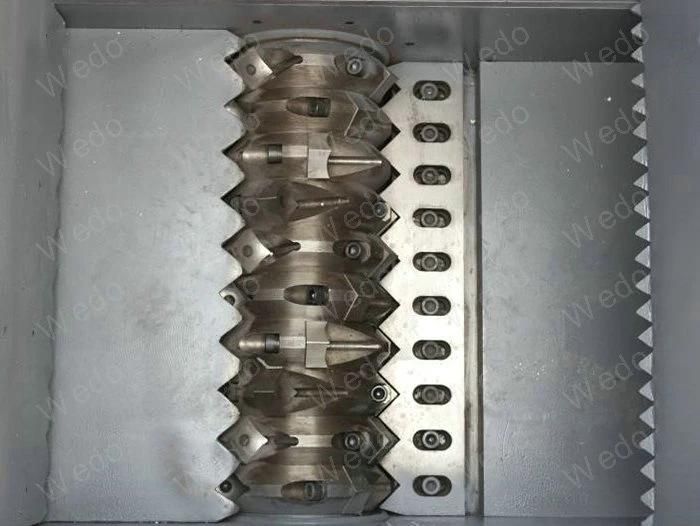

shaft design for Industrial Wood Paper Single Shaft Plastic Shredder Machine

shart produce for Industrial Wood Paper Single Shaft Plastic Shredder Machine

shart photo of Industrial Wood Paper Single Shaft Plastic Shredder Machine

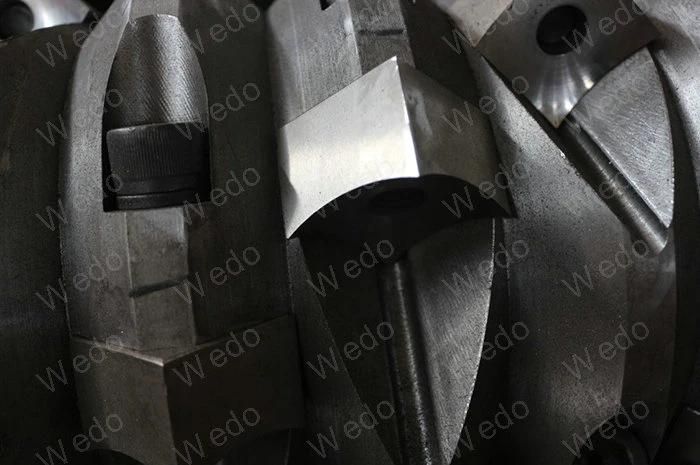

knife of Industrial Wood Paper Single Shaft Plastic Shredder Machine



Technical parameters of Industrial Wood Paper Single Shaft Plastic Shredder Machine:

Shredder model	S3063	S3980	S48100	S57120	S75160
Shaft diameter(mm)	275	275	315	315	350
Moving knife qty.(pcs)	30	39	48	57	75
Fixed knife qty.(pcs)	1	1	1	2	2
Max.capacity(kg/h)	500	700	900	1200	1300
Motor power(kw)	30	37	45	55	75
Chamber size(L*W )(mm)	780*670	1000*870	1200*1060	1400*1260	1800*1650
Host weight(kg)	4000	6000	8000	9500	12000
Dimensions(mm)	3250*1750 *2350	4150*1900 *2450	4700*2550 *2650	5350*2850 *2760	5900*3050 *2960

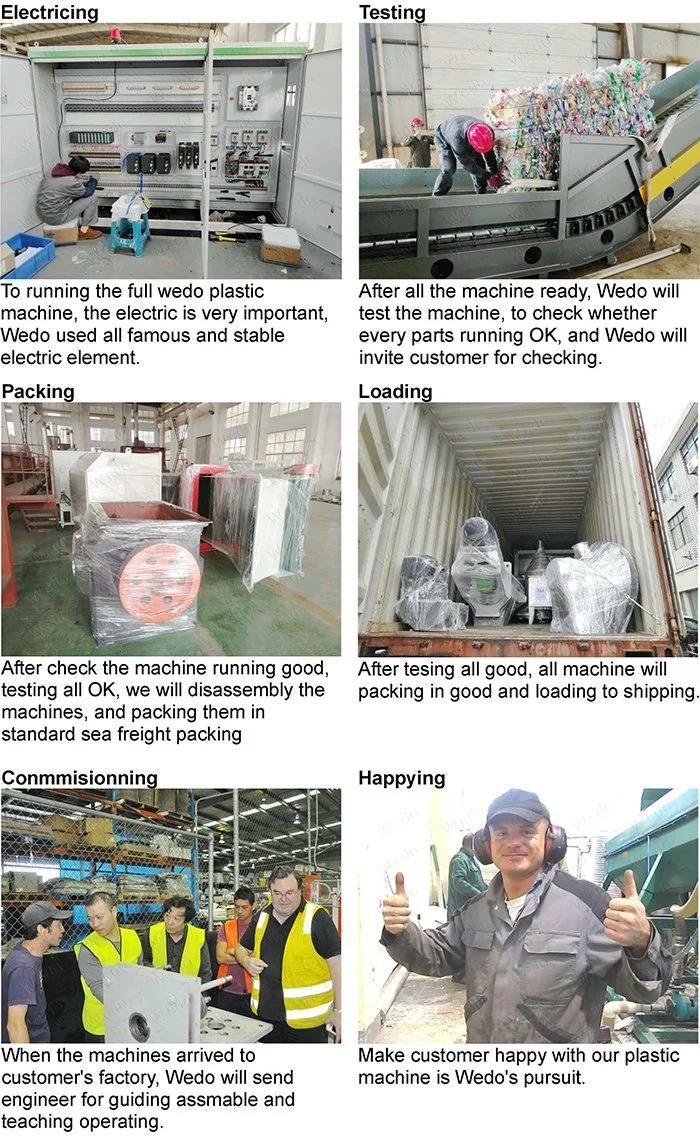

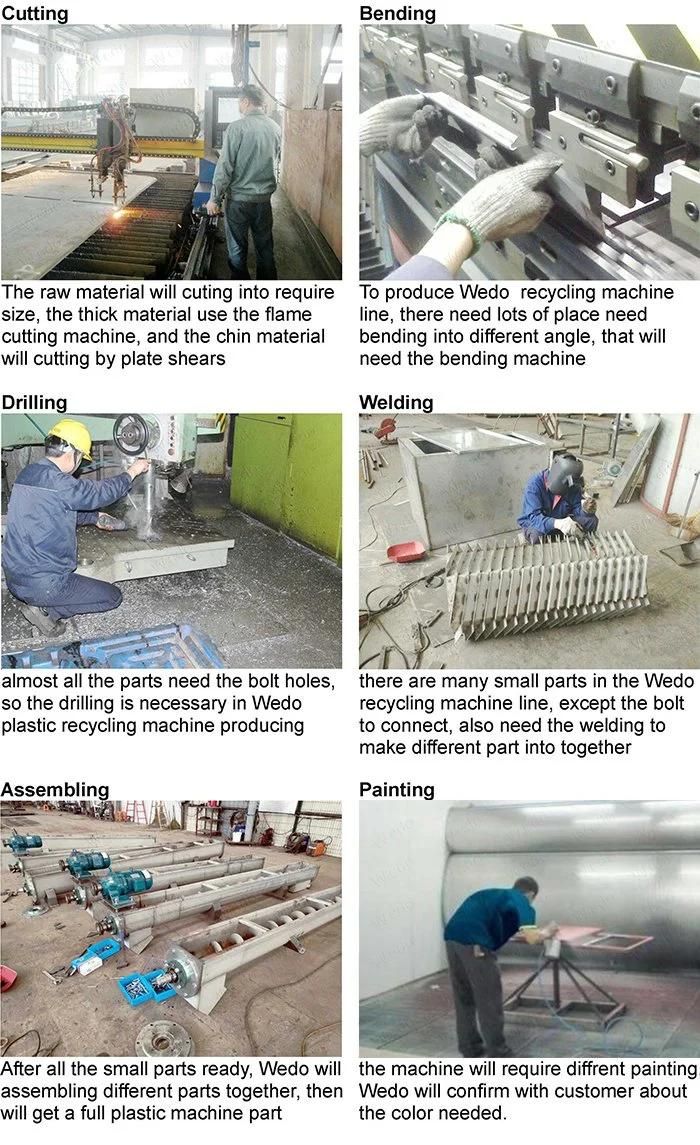

Wedo Produce steps:
Wedo have a fully step for the Industrial Wood Paper Single Shaft Plastic Shredder Machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.


Wedo service:
We do best service for you in Industrial Wood Paper Single Shaft Plastic Shredder Machine




Any further about the Mini Plastic Shredder Grinder Foam Chip Crusher Machine, please contact us timely we will give your professional fully support.
