• Model NO.：CPU20J-D
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Plywood Box
• Specification：2500*1500*2500mm
• Trademark：ZCE
• Origin：China
• HS Code：8477800000
• Production Capacity：50,Month

Basic Info.

Model NO. CPU20J-D Computerized Non-Computerized Certification CE, ISO9001:2008 Transport Package Plywood Box Specification 2500*1500*2500mm Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

Product Description

ZCE specialized in doing Polyurethane foam machine, Pu roller making machine, Polyurethane wheel and castor making machine, Polyurethane elastomer machine, MDI/TDI/NDI Polyurethane machine, Polyurethane injection machine, Polyurethane two components pouring machine,Three components polyurethane pouring machine, Polyurethane casting machine, PU machine, Polyurethane roll machine, Resin Casting Machine.

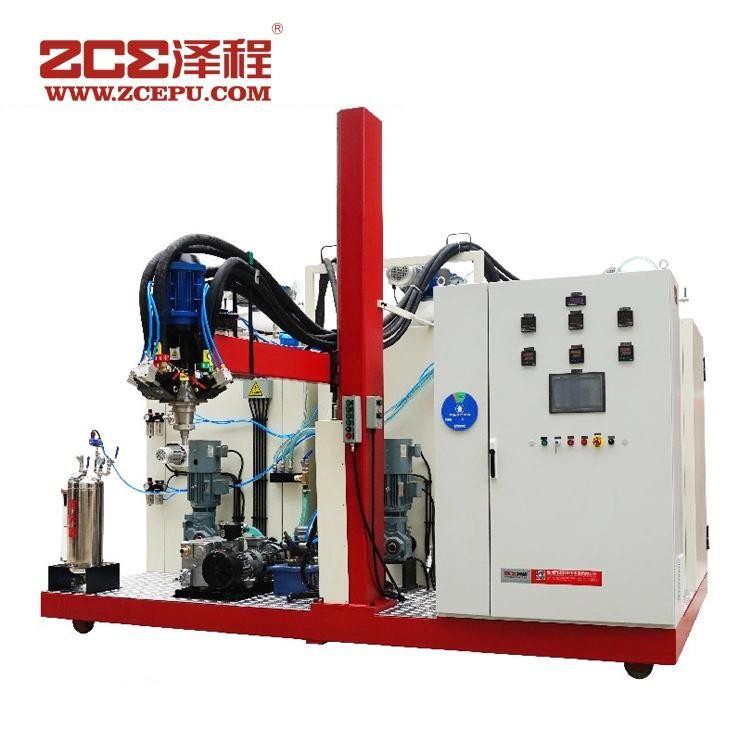

Product Photo


Features and Applications

Features:
1.Independent PLC control system in the branch temperature controller of each group,with speclal electric heating system, oven, piping and valves which can be adjusted separately; multi- point temperature control device is used to ensure that the raw materialto maintain a constant temperature throughout the cycle process; temperature errors ≤ ±ºC2.
2. The mixing device is equipped with static pressure balance device (patented technology), which removes flow error and improve measuring accuracy, meanwhile the stability is better; variable cross-section straight tooth conical mixing head is used to ensure no visible bubbles In products.
3. Equpped with the color paste control system and the color paste directly goes into the mixing device: difterent colors can be switched at any time; the mixing is uniform and the metering is accurate.
4. Adopt the imported PCL controller to monitor the entire device control system; it will automatically make judgment ol abnormity, diagnosis and alarm, abnormal factors display, PLC module control, casting. automatic cleaning and air impact; stable perlormance and strong operability.

Applications:Applicable to the manufacture of casting polyurethane elastomer products whose cross-linking agent is MOCA or BDO etc, such as all kinds of rubber roller, high load solid core wheel, mine slove plato, hydraulic soal ring. pholovoltaic guide pulley and other highly wear-resistant materials in metallurgy, printing and dyeing.textile, mining and paper industry.

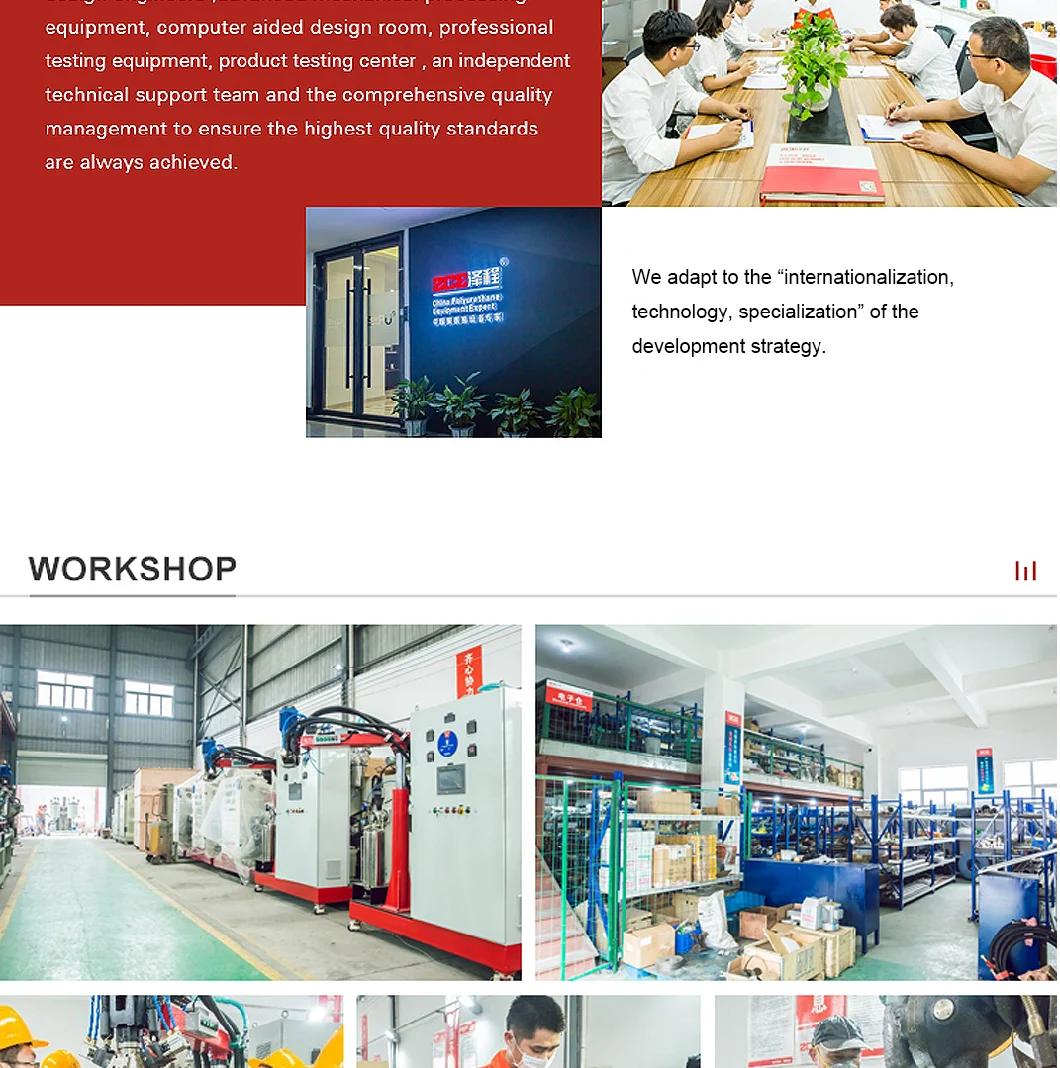

 Company Information
