• Model NO.：GM-Series
• Certification：SGS
• Max Bottle Size：1.5L
• Transport Package：Wooden Case
• Specification：4CAVITY
• Trademark：GM
• Origin：China
• HS Code：8422301090
• Production Capacity：200sets,Year

Basic Info.

Model NO. GM-Series Certification SGS Max Bottle Size 1.5L Transport Package Wooden Case Specification 4CAVITY Trademark GM Origin China HS Code 8422301090 Production Capacity 200sets/Year

Product Description

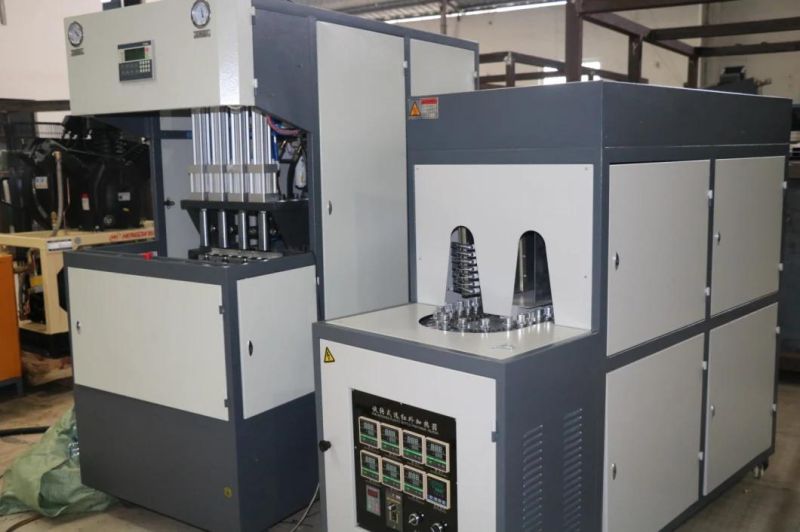

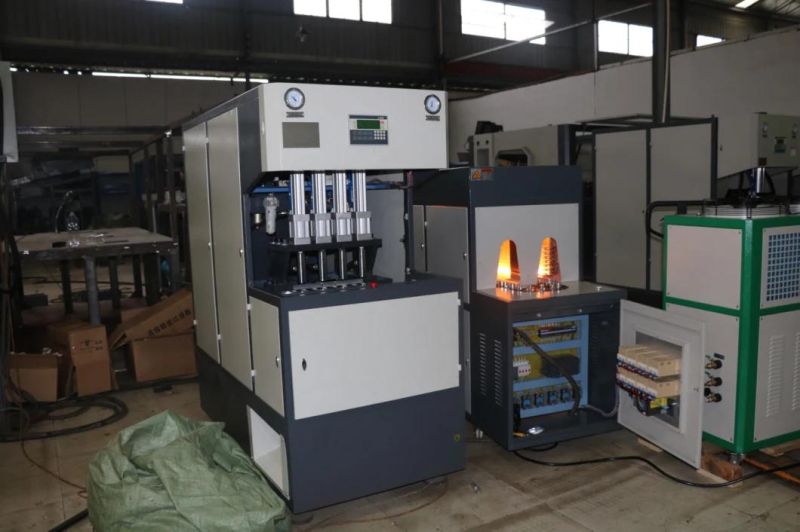

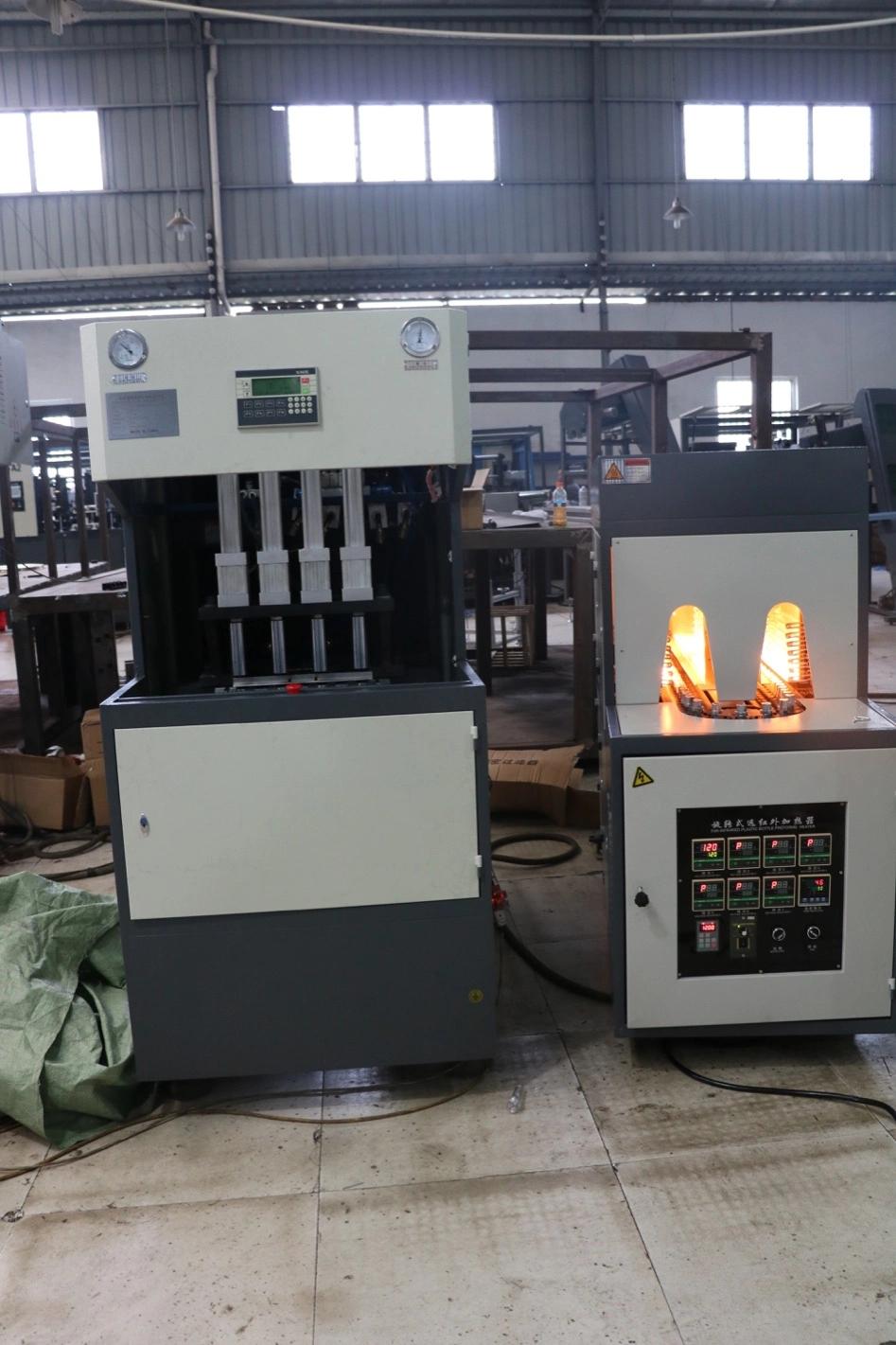

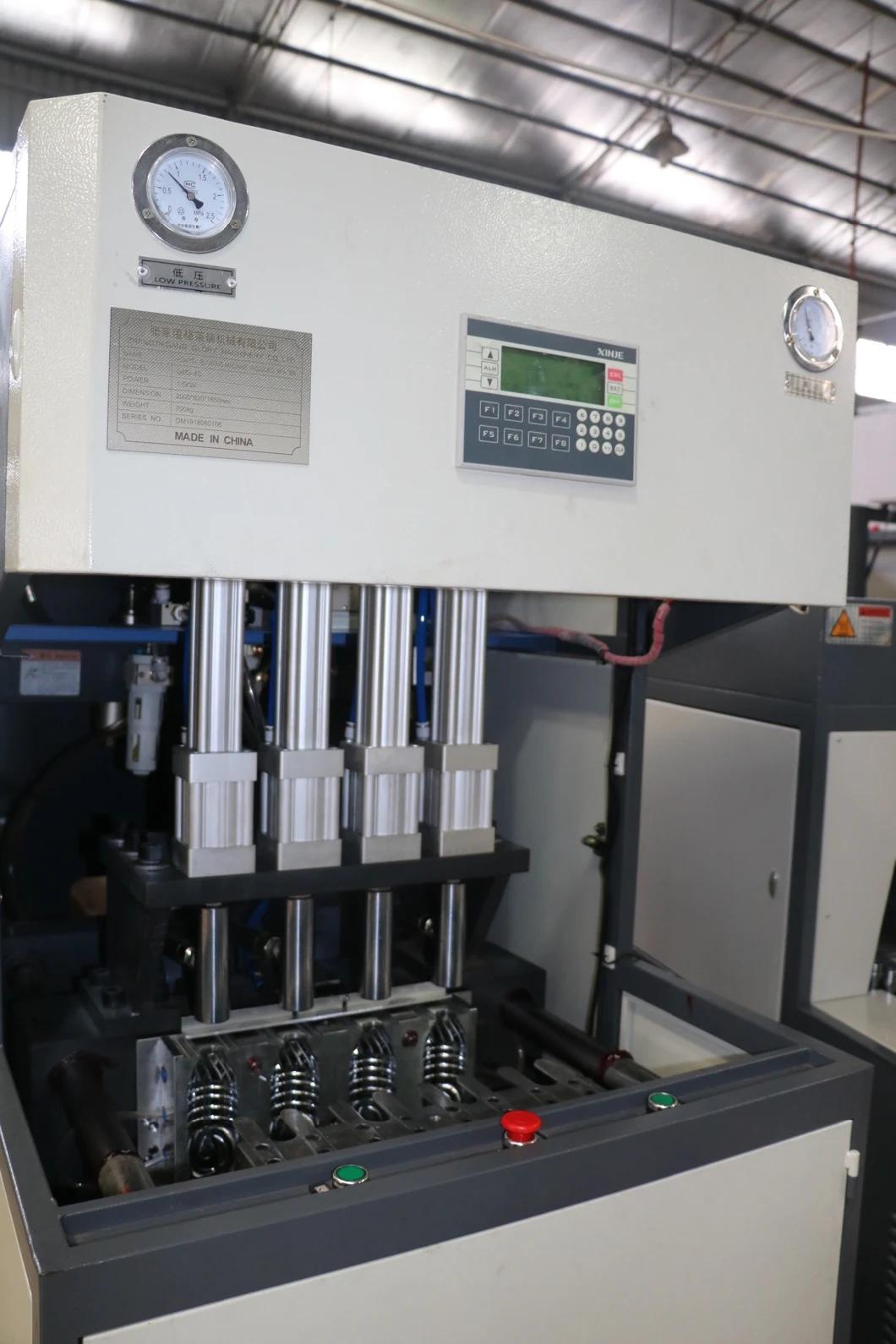

Semi Automatic 4 Cavity Blowing Machine
Machine features
1. blowing 0.1-1.5 liters of PET bottles (one out of four)
2. use four mold cavity mold blowing 0.5 liter bottle output can reach 1500 per hour.

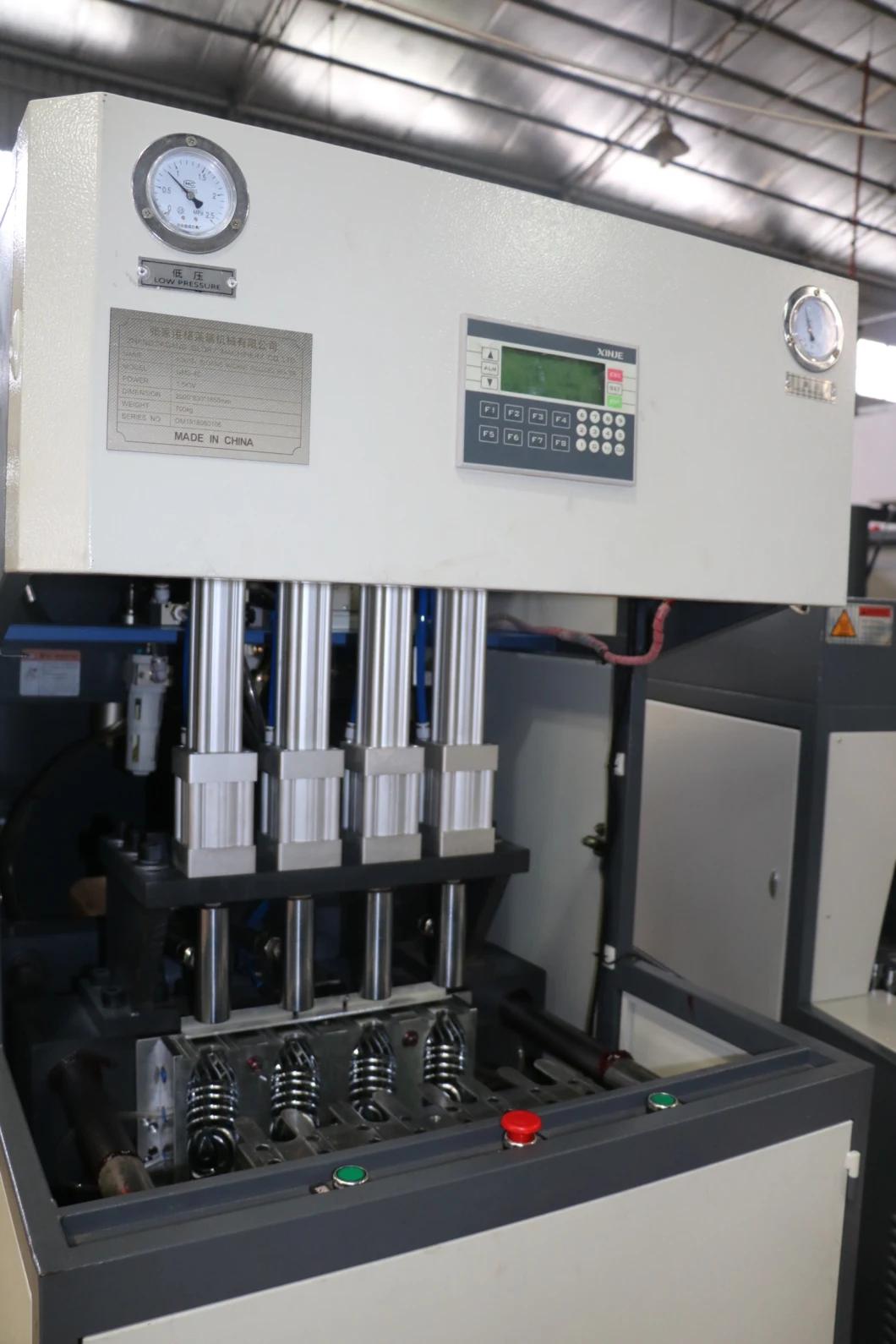

3. advanced PLC control system, time control can be accurate to 0.01 seconds.
4. special air storage devices.
5. infrared bottle embryo heater.
6. different heating tube with independent temperature control device to ensure that the bottle embryo has ideal heating effect.
The direction of the 7. heating lamp tube can be adjusted according to different bottle embryos.
8. operation requires only one person, without special training.
9. installation, start simple.
10. scrap rate of finished products is lower than 0.3%.
Main parameters FOR BLOWING :

Theoretical Output	1500pcs/hr based on 500ml
Max.Container Volume	1.5L (if need auto bottle outing ,max size is 750ml)
Max. Neck Diameter	55mm
Max. Container Diameter	90mm
Max. Container Height	320mm
Mold Thickness	120-220mm
Number Of Cavity	4cavity
Use Power	15kw
Working Pressure	1.0mpa
Blow Pressure	<3.0mpa
Machine Size	2.0x0.80x1.80m
Machine Weight	0.45T
Heater  Size	1.7x0.6x1.34m
Heater  Weight	0.2T




GM-0026
