• Model NO.：R-PET300
• Voltage: 220V-440V,3 Phase：Other:with The Special One We Also Can Do
• Transport Package：Standard
• Origin：Made in China

Basic Info.

Model NO. R-PET300 Voltage: 220V-440V,3 Phase Other:with The Special One We Also Can Do Transport Package Standard Origin Made in China

Product Description

300kg/h PET Bottle Crushing & Washing Line
Description:
The Process is used to recycle big capacity and stable quality raw material, especially for PSF manufacturer and recycled POY manufacturer with different capacity.
Process Flowchart:
Conveyor--Label Removing Machine--Sorting conveyor bel--Screw feeder--Steam Washer--Screw feeder--Friction cleaner--Rinse tank--Dewatering Machine--Duct drying system--Cyclone Hopper--Electric control box

The Detailed parameter :

1. Conveyor	Effective Conveying Length:4500mm Motor Power: 2.2kw Conveying Width: 600mm Function: Send the raw material to the label removing machine

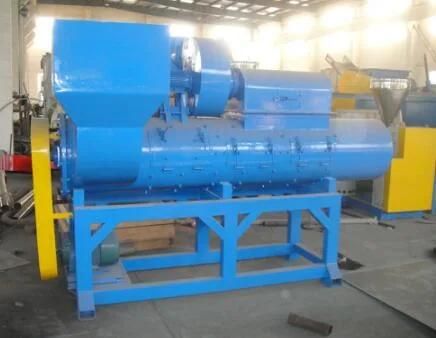

Label Removing Machine	Diameter of rotor: Φ450mm Effective length of machine: 3000mm Motor power:11kw Feeding port size(W*L):700*700mm Blower power:3kw Label off rate:≥98% Overall dimension:3500*1550*2200mm
3.Sorting conveyor belt	Effective transmission length:5000mm Conveyor belt width:600mm Motor power:2.2kw P.S:Sorting variegated bottle, get rid off PVC and not-PET bottles.

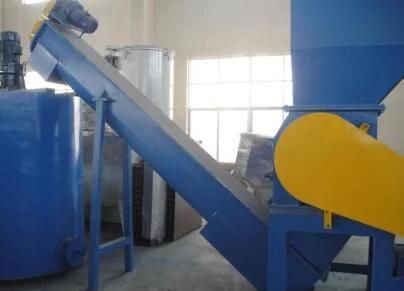

4. Screw feeder	Motor power:3kw Screw diameter:Φ250mm Screw rotate speed:75rpm Sieve hole diameter:Φ3mm P.S: The dirth water separates in the promotion and discharges into the sewage pool from the down mouth.
5. Steam Washer	Stirring Motor :5.5kw Barrel diameter :Φ1800mm Cylinder height:1800mm Heating power: 90kw There is thermal insulation material around the outside wall, inside install  coil steam heating. P.S: Through adding the caustic soda(above 85ºC) into the pot body to soak and stir to make the dirt and glue of the surface of the bottle flakes separate and dissolve.
6. Screw feeder	Motor power:3kw Screw diameter:Φ250mm Screw speed:75rpm P.S: Put the materials into the friction cleaner through the spiral promotion.

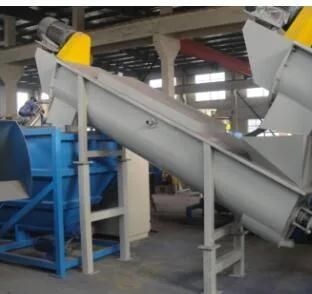

7. Friction cleaner	Motor: 11kw Screw Diameter: ф300mm Screw Rotating Speed: 900rpm Effective Length: 3500mm Working Principle: With the high speed rotating screw, the sand and soil dirt could be separated. The important part of the Washing Line,It will wash the material.
8. Rinse tank	Washing Roller Motor: 3kw*2 Dirt Collecting Motor: 3kw Driving wheel:5 Pusher screw diameter: Φ350mm Length: 6000 mm Width: 1300 mm High: 1800 mm
9. Screw feeder	Motor power:3kw Screw diameter:Φ250mm Screw speed:75rpm
10. Dewatering Machine	Motor Power: 5.5kw Rotor diameter:Φ450mm Rotor speed: 1270rpm Function:Make the materials dry by high-speed rotating, and send the dry materials to the drier hopper.
12. Duct drying system	Blower power:5.5kw heating power:36kw Pipe diameter:159mm Intelligent Temperature Control Instrument Digital Display Function: Reduce water-content of the Plastic piece. The parts contacted the raw material are made of stainless steel.
13. Cyclone Hopper	Volume: 1000L Function: Store the finished material.
14. Electric control box	Electric cabinet one set, electrical equipment adopts Siemens and Domestic famous company; Japan RKC Intelligent temperature control instrument digital display; NS transducer; have Emergency brake switch, each part of the equipment operation state shows in the  instrument

Welcome to visit our website ,and tell us if you want get the one or the whole line .Thanks
