• Model NO.：SJZJ 110
• Engagement System：Conical Meshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Screw Design：Conical Twin-Screw
• Weight：~44.5 Tons
• Power：485-750kw Per Line
• Voltage：220-415V , 50-60Hz 3 Phase
• Function：Flooring Sheet Extrusion
• Certificate：Ce , ISO, TUV, UL, CSA
• Transport Package：Wooden Case Packing or Film
• Specification：Production Line layout: 50m (L) * 5m (W) * 8m (H)
• Trademark：Boyu
• Origin：Wuxi China
• Production Capacity：200 Lines Per Year

Basic Info.

Model NO. SJZJ 110 Engagement System Conical Meshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Screw Design Conical Twin-Screw Weight ~44.5 Tons Power 485-750kw Per Line Voltage 220-415V / 50-60Hz 3 Phase Function Flooring Sheet Extrusion Certificate Ce , ISO, TUV, UL, CSA Transport Package Wooden Case Packing or Film Specification Production Line layout: 50m (L) * 5m (W) * 8m (H) Trademark Boyu Origin Wuxi China Production Capacity 200 Lines Per Year

Product Description

                  SPC Resilient Flooring Production Machine Line


 I. Design parameters


No.	Items	Description
01	Operation conditions	380V/3 phases/60Hz. (or customizable as per different country's standard voltage )
02	Materials used	PVC powder, calcium carbonate, stabilizer, lubricant, small materials. Main Material and proportion: PVC: CaCo3 = 1:1 :2~3
03	Extrusion rate	800~1250kg/h;   Line speed: 1.2~2.4m/min        Daily capacity: 20-23 Mt/ 24hours ,Monthly capacity (30days, each day working 3 shifts 24 hours): 90,000m2/Line/Month
04	Product specifications	Maximum width is 1050mm, thickness =2-9mm. Normal finished board width: 980mm      Normal finished board thickness: δ=1.5~4.0mm
05	Total power of whole machine line	About 700KW (The exact total power may something  floating as per different configuration requirements

II.Equipment List & Quantity


No.	Equipment Name	Quantity	Remark
01	Φ110/220 Conical twin-screw extruder	1 Set
02	Extrusion die	1 Set
03	Five-roller calender	1 Set
04	Film unwinding mechanism & magnetic powder controller	2 Units	For two working position
05	Oil roller heating system (integral)	1 Set	4 units
06	Cooling bracket	1 unit

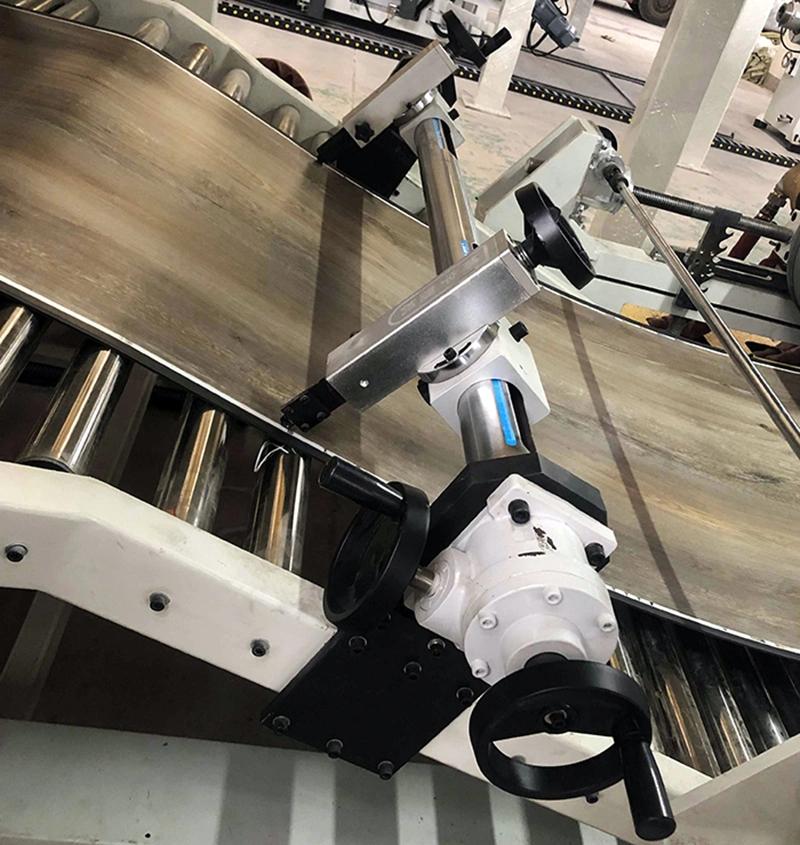

07	Longitudinal edge cutting mechanism	1 unit
08	Traction machine	2 sets
09	Length meter	1 Set
10	Plate shearing machine	1 set

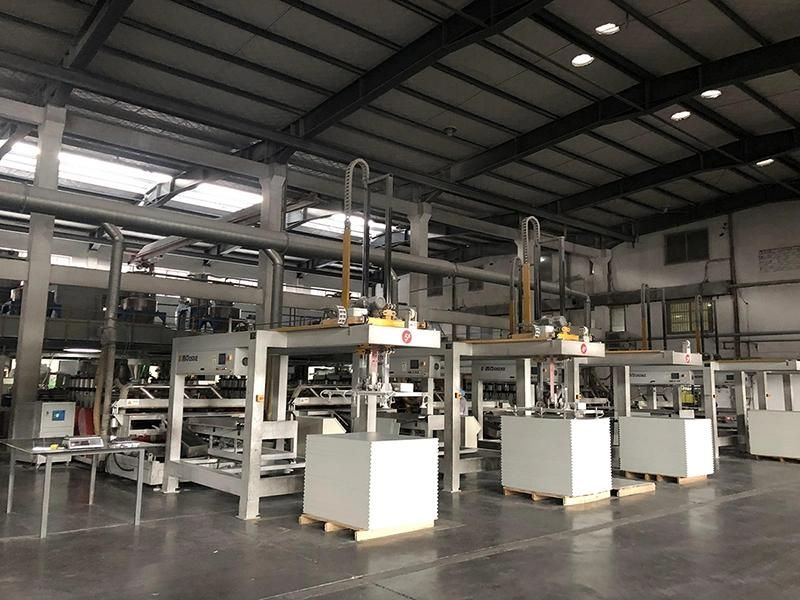

11	Automatic plate lifting and stacking system	1 unit
12	Electric control cabinet	1 unit
13	Cooing water spray tank	1 unit
14	wear layer pre-heat device	1 unit

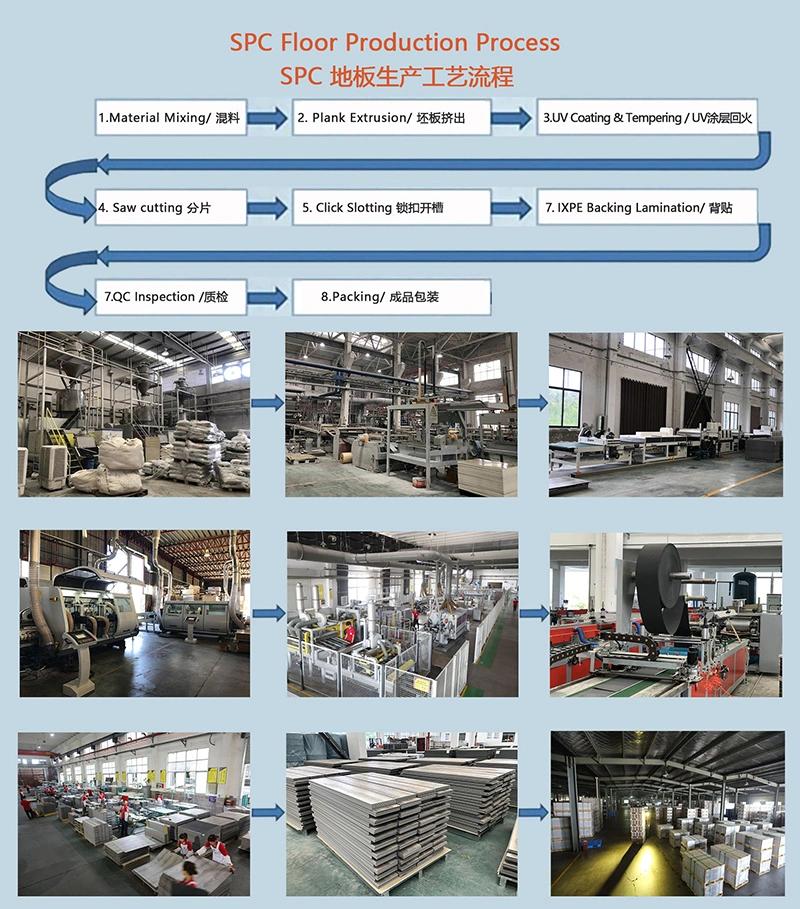

III.Production Flow

Material mixing → Extruder → Calender→ Cut-to-length →Stacking →UV coating →Saw cutting →
Slick slotting →Backing limitation →QC inspection → Packing

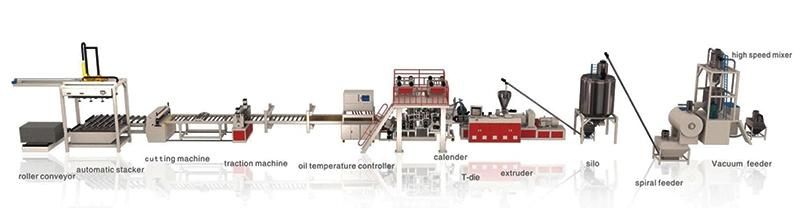

IV. Machine Line Layout


V. Advantages of BOYU WPC Production Machine Line




VI.Services

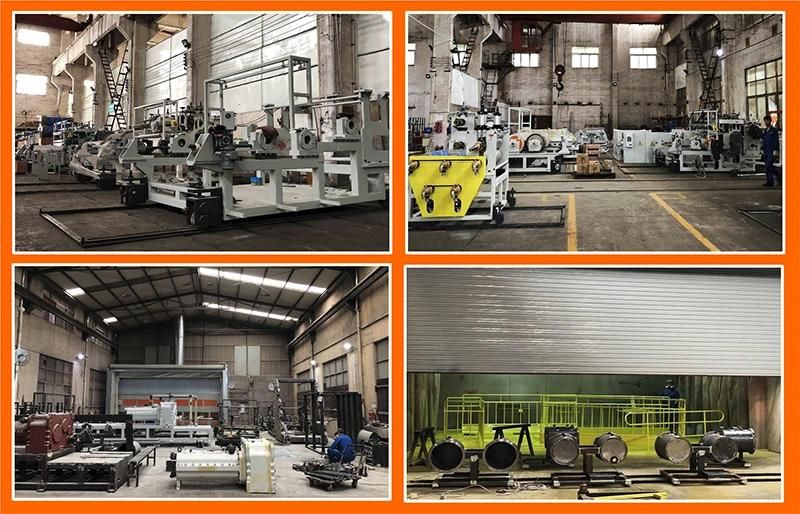

 VII. Project Case









VII. Boyu Company Profile
