300mm Po Film Blowing Machine with One Screw Two Die Head

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：Po Film Blowing Machine
  • Raw Material：HDPE
  • Maximum Folding Width of Film：250mm
  • Screw Diameter：45mm
  • Automation：Non-Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FM-300*2
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Size：L*W*H: 4.5m * 2.05m * 4.5m
  • Structure：Single Screw Double Die Head
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Warp Film for Container Shipment
  • Specification：single layer
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

LDPE / LLDPE / HDPE / MLLDPE / EVA / EAA etc.film width(mm)40--30050--40060--50080--600100--700thickness0.01--0.16mmL/D ratio30:1screw diameterΦ45mmΦ50mmΦ55mmΦ65mmΦ75mmdie diameterΦ80mm*2Φ120mm*2Φ150mm*2Φ160mm*2Φ180mm*2die structureSpiral mandrel die chrome plated surface 40Crmain power11kw15kw18.5kw22kw30kwmax output40kg/h50kg/h60kg/h75kg/h110kg/hTorque motor winderoptional equipmentauto-loader device, film surface treater, air compressor, fast change net, auto rewinder, rotary die head, double wind air ring

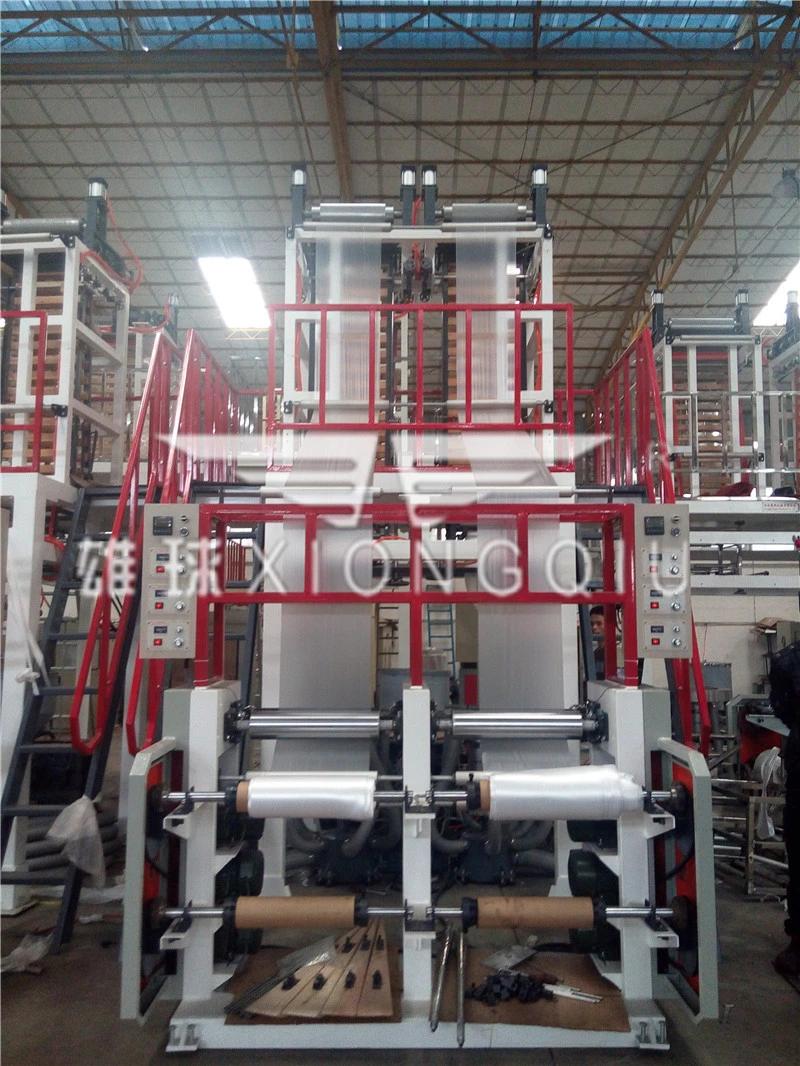

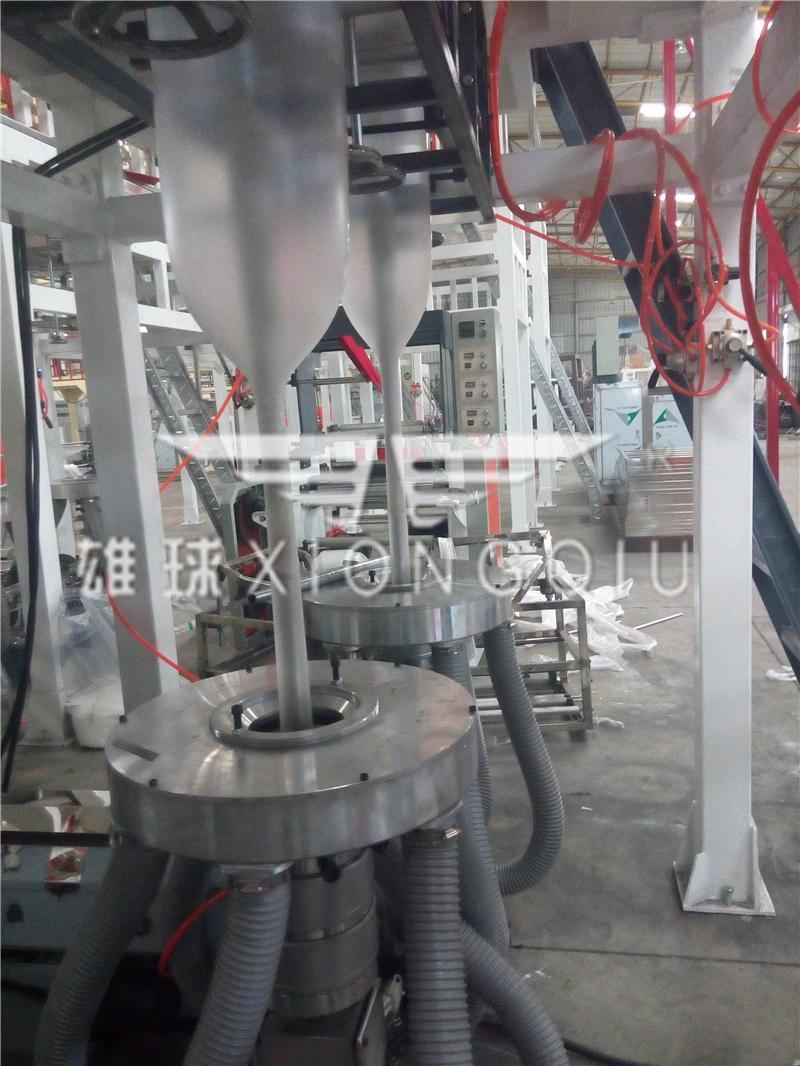

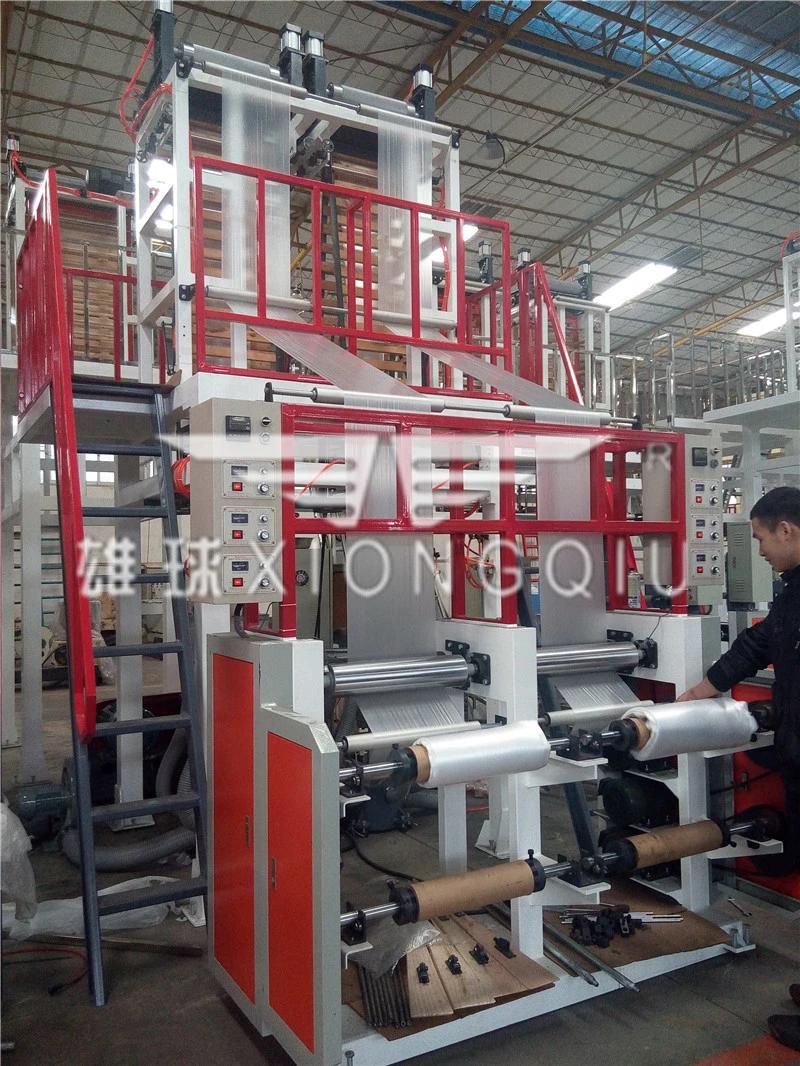

pictures for reference:
300mm Po Film Blowing Machine with One Screw Two Die Head
300mm Po Film Blowing Machine with One Screw Two Die Head
300mm Po Film Blowing Machine with One Screw Two Die Head
