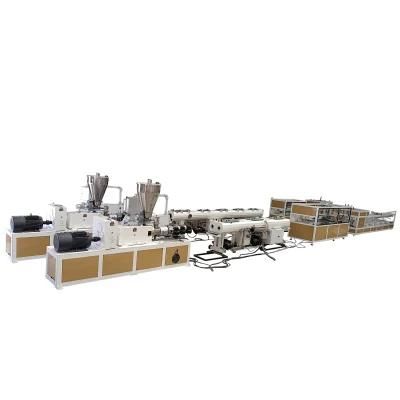

Sj65 PPR PE Electric Dual Gas Water Supply Drainage Sewage Hot Cold Water Insulation Tube ...
Qingdao Hanhai Plastic Machinery Co., Ltd.- Warranty：1year
- Product Type：PPR Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：SJ55, SJ65, SJ80, SJ92, Sj120, Sj130, Sj150
- Customized：Customized
- Condition：New
- After-sales Service：Engineers Available to Service Machinery Overseas
- Voltage：380V 50Hz 3phase(Customized)
- Screw Material：38crmoaia
- Screw L/D Ratio：33:1
- Raw Material：HDPE Granules
- Features：Competitive Price, Long Service Life
- Final Product 1：PPR Pipe with Different Diameter
- Final Product 2：PPR Pipe with Different Wall Thickness
- Final Product 3：PPR Pipe with Different Pressure
- Diameter 1：16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm
- Diameter 2：125mm, 150mm, 160mm, 200mm, 250mm, 400mm
- Extruder Style1：Sj55, Sj65, Sj75, Sj80, Sj92, Sj120, Sj130, Sj150
- Extruder Style 2：Sjsz55, Sjsz65, Sjsz75, Sjsz80, Sjsz92, Sjsz120
- Moter：Simens Beide
- PLC：Simens
- Cooling Way：Recycling Water Cooling
- Transport Package：Film, Plywood Case, Container
- Specification：20m*2m*2.5m, 8-15Ton
- Trademark：Hanhai
- Origin：Qingdao, China
- HS Code：84772090
- Production Capacity：40-50 Sets Per Year
Description
4 1000

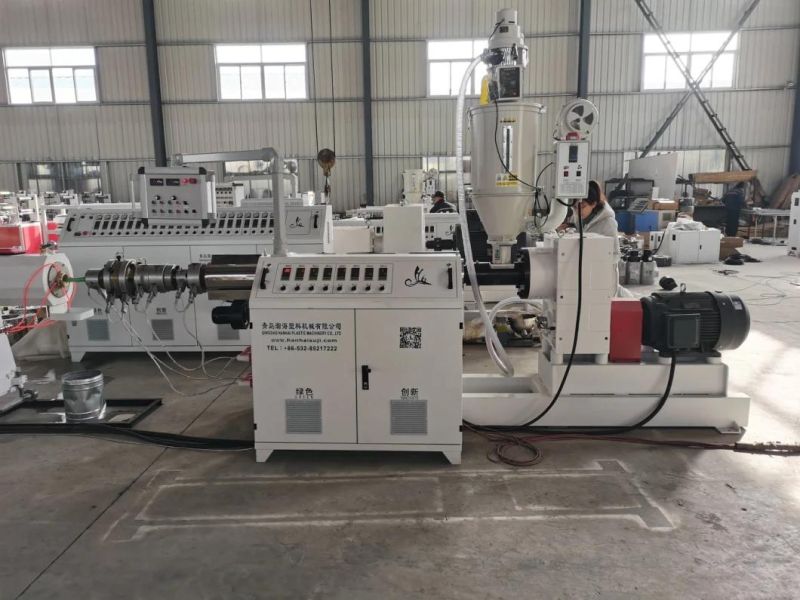

Details Images:1.PPR Pipe Extrusion production Line Single screw extruder with automatic feeding systemAccording to the requirements of different diameters, different wall thicknesses and different output of pipes, we have many models of special single screw extruders to choose from. It adopts a specially designed screw structure, which can evenly heat, plasticize PPR granules and extrude pipes .
(1) Motor brand: Siemens
(2) Inverter brand: Delta
(3) Contactor brand: Siemens
(4) Relay brand: Omron
(5) Breaker brand:
(6) Material of screw and barrel: 38CrMoAlA.
(7) Heating method: Ceramic or cast aluminum heating

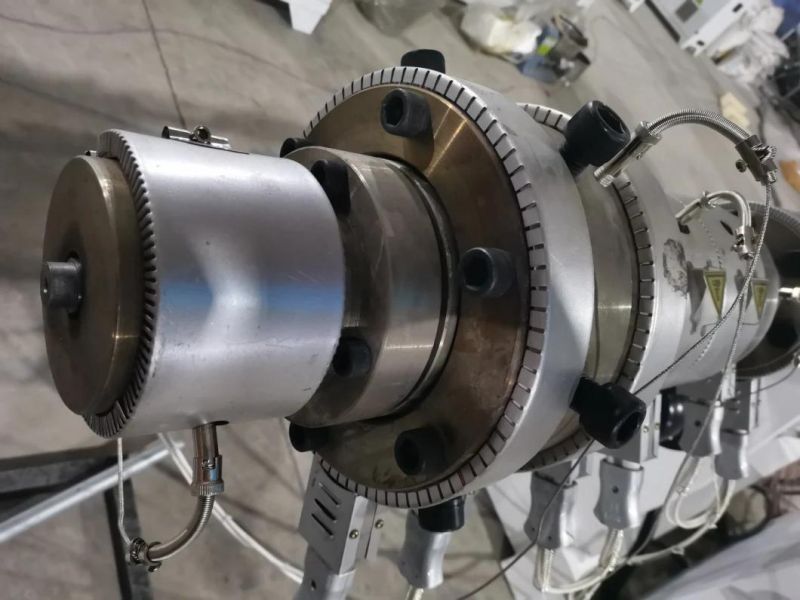

2.PPR Pipe Extrusion production Line MouldThe mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.(1) Material: 40GR(2) Size: Customized

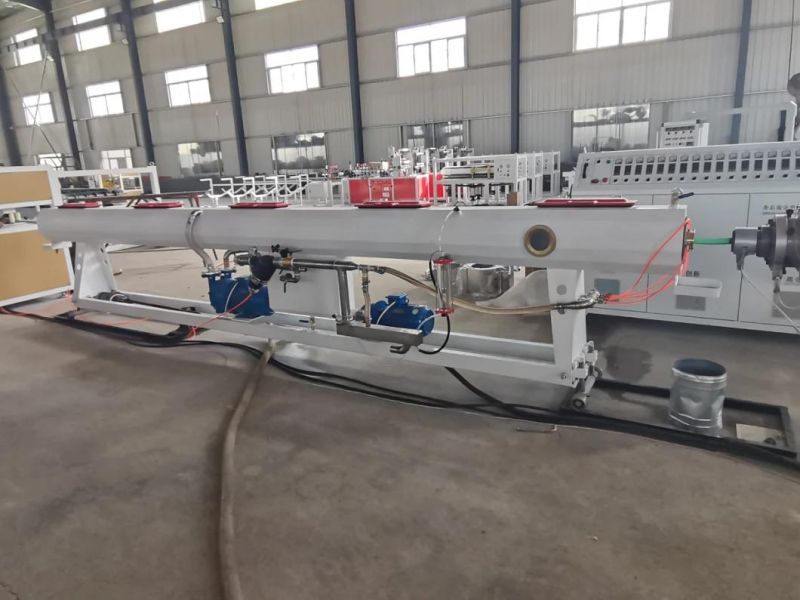

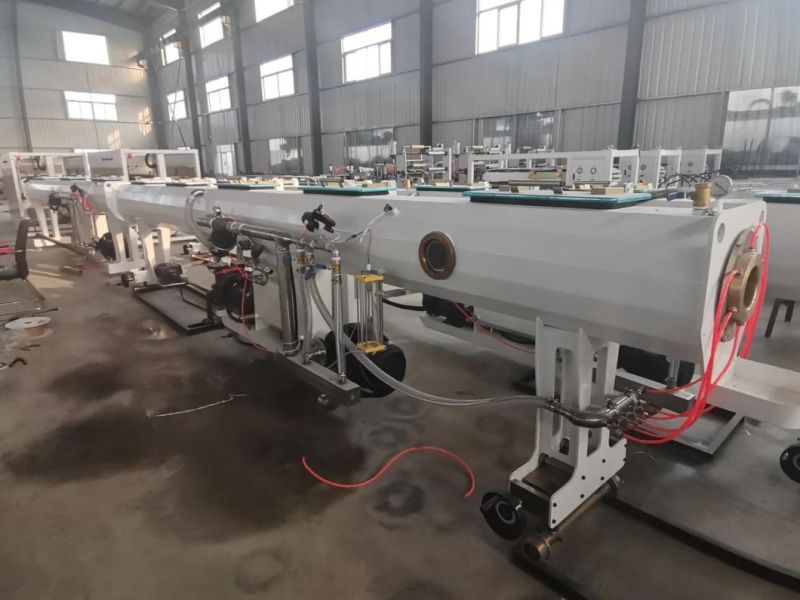

3.PPR Pipe Extrusion production Line Vacuum calibrating tankThe calibrating and cooling tank can calibrate and cool the pipe from the mould.(1) Vacuum pump power : 4 kw
(2) Stainless steel material: 1Cr18NiTi
(3) Diameter of tank : Customized
(4) Length of tank: 6 m
4.PPR Pipe Extrusion production Line Water cooling tank
(1) Water pump power: 4 kw
(2) Spray cooling: ABS nozzle; Stainless steel pipe
(3) Method: Enforced spraying
(4) Length of tank: 6 m
5.PPR Pipe Extrusion production Line Haul-off machineThe haul-off machine can transport PPR pipe to cutting machine.(1) Hauling power: 1.5 kw (2) Clamping style: Pneumatic clamping
(3) Transducer: Siemens transducer
(4) Hauling track type: Plastic block
(5) Effective clamping length 1800 mm

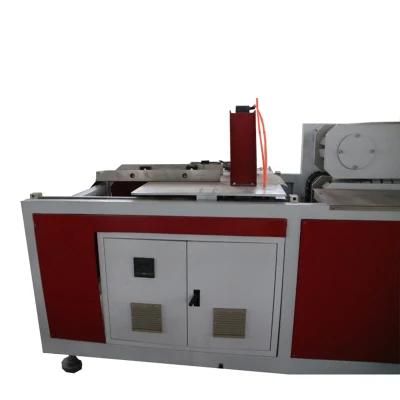

6.PPR Pipe Extrusion production Line Cutting machine:The special cutting machine for PPR pipe adopts rotary clamping device, is suitable for different pipe diameters, avoids the trouble of frequently changing clamping device.(1) Cutting motor power: 1.5 kw(2) Cutting scope: Customized (3) Control means: Pneumatic control

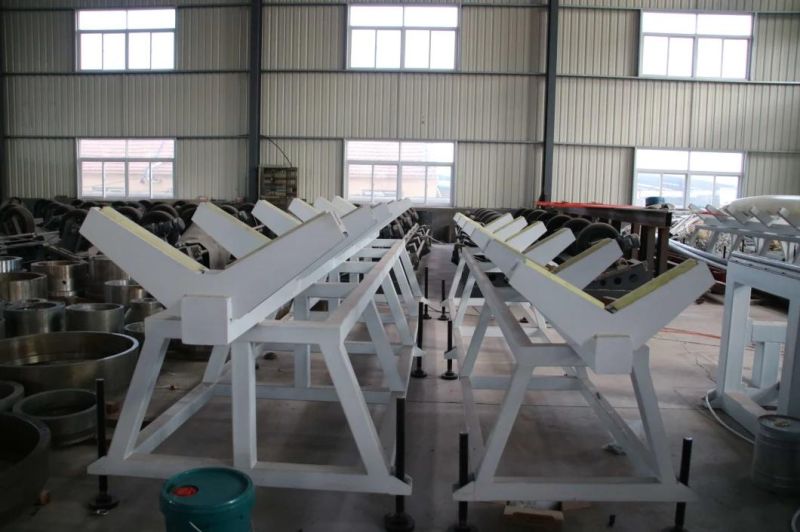

7.PPR Pipe Extrusion production Line Stacker:It is used to hold pipes and can unload pipes automatically.(1) Length: 6000 mm(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading

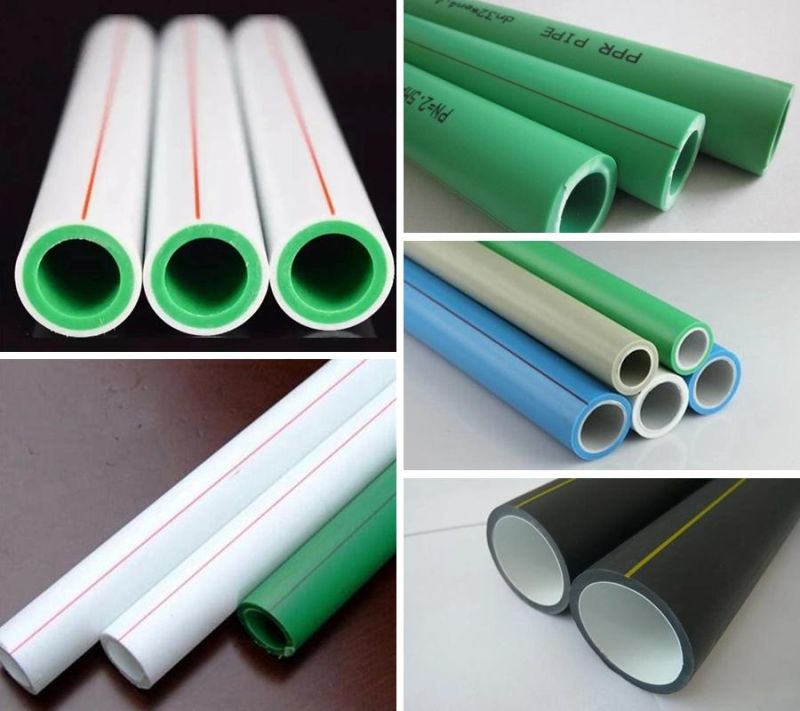

PPR Pipe Extrusion production Line Final Products
PPR Pipe Extrusion production Line You just tell me what machine you want,let us do the rest work:1. Design and manufacture suitble machine for you.2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)3. Delivery.4. We will provide after-sales service: (1) Field installation and commissioning; (2) Field training your workers;

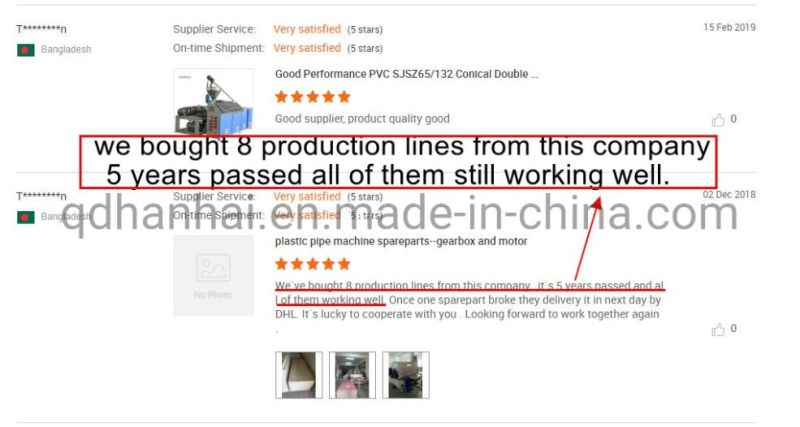

(3) Field maintenance and repair service ;(4) Free Spare Parts ; (5) Video/Online technical support. Reviews by customers:
FAQ:1.Are you manufacturer or trading company?
We are manufacturer.
2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.
3.Delivery time: 30~40 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C(at sight).
5.After Warranty Service: Long-term technical support; Spare parts; Field maintenance and repair service
