• Model NO.：PL
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Non Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Machine Name：Medical PVC Precision Tube Extrusion Machine
• Raw Material：PVC, PU, PP
• Processing Type：Extrusion
• Main Extruder：Single Screw Extruder
• Extruder Model：Sj45,28
• Final Product：Medical Tube, Medical Hose
• Main Motor：Siemens Beide
• Temperature Controller：Omron
• Inverter：ABB
• Machine Color：Customized
• Transport Package：Stretch Film+Wood Pacakge
• Specification：13m*1.5m*1.8m
• Trademark：Plastar
• Origin：China
• HS Code：8477800000
• Production Capacity：100sets,Year

Basic Info.

Model NO. PL Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Non Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Machine Name Medical PVC Precision Tube Extrusion Machine Raw Material PVC, PU, PP Processing Type Extrusion Main Extruder Single Screw Extruder Extruder Model Sj45/28 Final Product Medical Tube, Medical Hose Main Motor Siemens Beide Temperature Controller Omron Inverter ABB Machine Color Customized Transport Package Stretch Film+Wood Pacakge Specification 13m*1.5m*1.8m Trademark Plastar Origin China HS Code 8477800000 Production Capacity 100sets/Year

Product Description

PVC Medical Dental Saliva Ejector Hose Tube Extrusion Making Machine

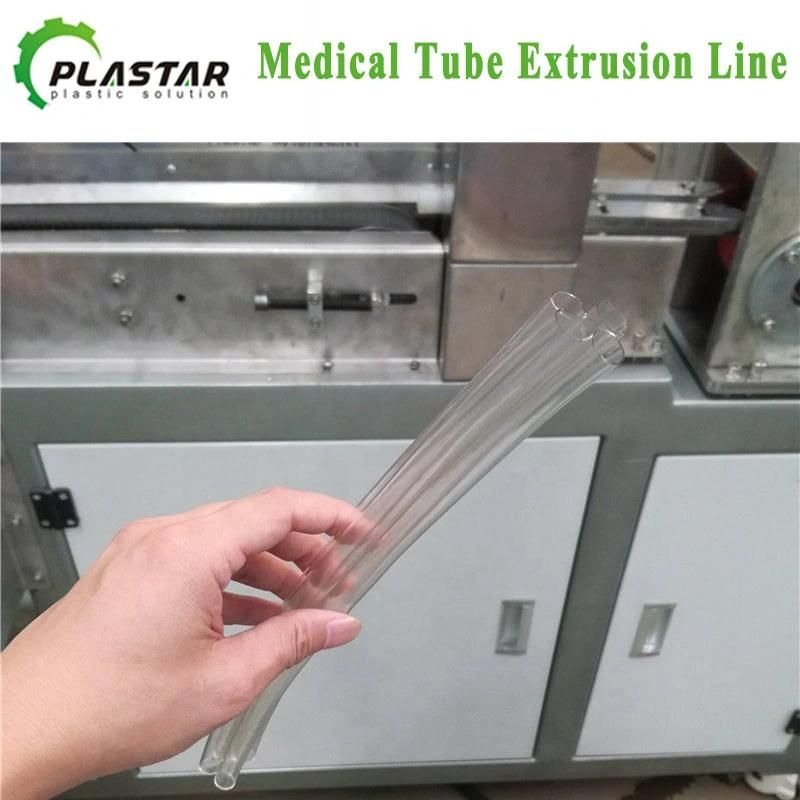

PVC Medical Tube extrusion line is mainly used in the production of central venous catheter, capillary, perforated pipe of various types of precision medical catheter.

Applicable material: PVC,PU

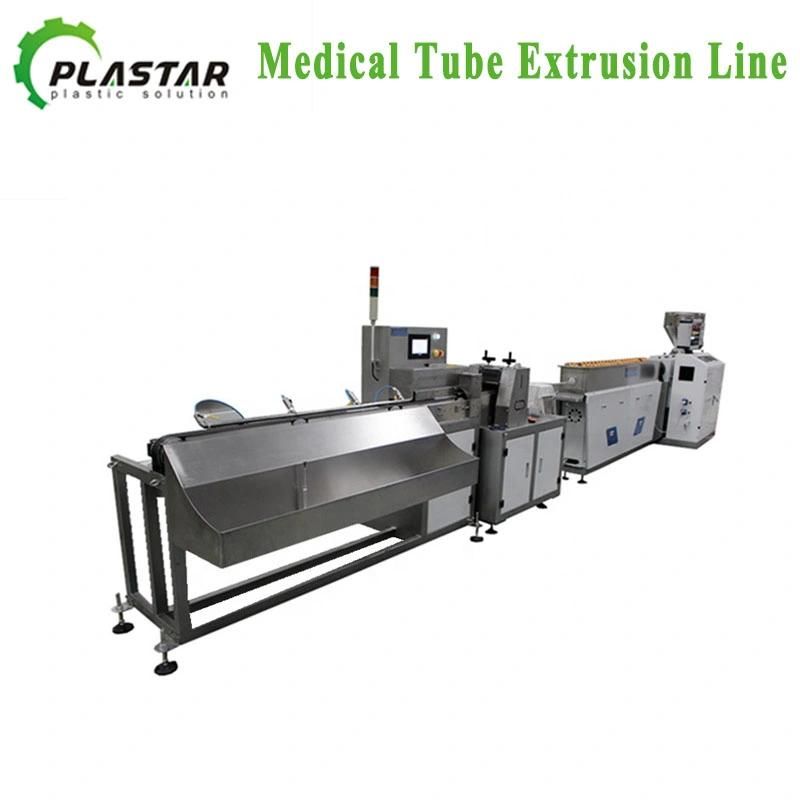

precision extruder------extruder die------Vacuum calibration tank-----Haul off and cutter unit----Convey and product collect system)-----Diameter controller

 Application:
applicable to the production of high precisely medical oxgen tube, shield tube,latex tube and PVC short tube of disposable infusion apparatus and other conduits

 Main Features:
1. According to raw material characteristics with the specific design of the optimized structure of the screw, barrel; materials are carefully made of alloy steel with strength to ensure a higher plasticizing materials, processing performance and stability.
2. The main extruder adopts high stable AC motor, double reduction hardened gear box drive, to ensure the energy saving production, smooth operation and quiet as well as long service life.
3. High temperature control configuration system, temperature control accuracy of ± 1.5°C, to ensure extrusion Products and the roundness / dimensional accuracy of the pipe materials.
4. Requirements according to different configurations using Japan Mutsubishi PLC controlling technology and system, human-computer interface system, on-line automatic measuring diameter, automatic feedback automatic adjustment system.
5. The proper configuration of the hose machine meets high efficiency, high precision, high-quality and maximum economy requirements of modern production, reduce the labor intensity.

Characteristics of PLASTAR Vacuum cooling water tank,
1.The mechanical structure
SUS304 material tank, Full toughened glass seal,Sink around the block,Suitable for medical and health clean condition.
2. Three dimensional adjustment system
Before and after using the guide rail type adjustment, convenient and fluent,  good straightness, up and down adjustment adopts four screw adjustment, water tank more stable, little vibration .

Characteristics of  PLASTAR Medical cutting and tractor unit
Traction belt, high efficiency, PU surface wear V-ribbed belt
Linear guide belt lifting, opening and closing adjustment system
Smooth incision ,Chipless,Special cutting knife design
Characteristics of PLASTAR Transportation collection machine
Conveyor length 3000mm, to meet any length of 50-3000mm pipe delivery and collection
air blowing device: the conveyor belt side of the blow pipe, the use of solenoid valve control
stainless steel collection tank


Service
1.Pre-sale :we would make deep communication to learn about sample requirement and actual production in workshops so we can guarantee the specialty of our products

2.Producing:Clients and his relevant technicians are welcomed to our factory to monitor and give guidance and we also send periodic reports to your company each week.

3.Before delivery:clients should come to confirm the if the products by our machine is qualified and give approval to delivery

4.After delivery:after the machine reach the destination,our assembly engineers will reach your company to install the machine and do relevant training and guidance.
